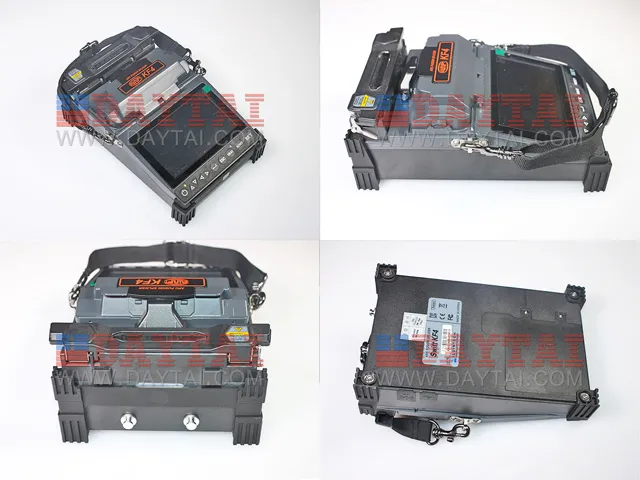

Kf4 Fiber Optic Fusion Splicer
ILSINTECH KF4 Fiber Optic Fusion SplicerDescriptionSwift KF4 is very versatile and super accurate active cladding alignment fusion splicer that satisfies every aspect of splicing requirement. With slim, yet rugged and extremely light, along with budget priced, Swift KF4 assures users of convenient a......
Send Inquiry
Product Description
Description
Swift KF4 is very versatile and super accurate active cladding alignment fusion splicer that satisfies every aspect of splicing requirement. With slim, yet rugged and extremely light, along with budget priced, Swift KF4 assures users of convenient and stable process as well as high performance.
Specification
Category | Description |
Fiber alignment | Active V-Groove Alignment |
Applicable type of fibers | 0.25mm, 0.9mm, 2.0mm, 3.0mm, Indoor cable |
Fiber count | Single fiber |
Applicable fiber dimensions | Cladding diameter: 125 / Coating diameter: 150~3mm |
Fiber setting and cleaved length | 5mm to 16mm |
Splicing modes | Splice mode: 300, Heater mode:100 |
Typical Splice Loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
Return loss | > 60dB |
Splicing Time | Typical 7sec (Standard SM, SM-SM mode) |
Splice loss estimate | Available |
Sleeve heating time | Typical 13sec with IS-60 mode, IS-60 sleeve |
Applicable protection sleeve | 40mm,60mm and micro sleeves |
Storage of splice result | Date : 5,000 Up to, Image: 5,000 Up to |
Tension test | 1.96N to 2.25N |
Operating condition | Altitude: 5,000m above sea level, Temperature: -10ºC~50ºC, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof |
Storage condition | Temperature: -40ºC~80ºC, Humidity: 0~95% |
Dimension | 124(W)x189(L)x75(H)mm(Without rubber protector) |
Weight | 1.1kg(Including battery) |
Viewing method and display | Two CMOS cameras and 4,3-inch color LCD monitor |
Fiber view and magnification | X/Y : 130X MAX:260X |
Power supply | Li-ion Battery(DC 14.8V, 3400mAh), 100 ~ 240V AC Charger |
No.of splice cycles with battery | Typical 200 cycles |
Electrode life | More than 3,000 times |
Terminals | USB |
Packing list
Category | Model | Q'ty |
Arc Fusion Splicer | KF4 | 1 |
Battery Adapter | FY1701000 | 1 |
Spare Electrode | EI-24 | 1pair |
Cooling Tray | CT-01(40mm) | 1 |
User Guide CD | - | 1 |
Carrying Case | Soft Case(ILST-SS03 L) | 1 |
Battery | KF-3400 | 1 |
Cleaver | PP | 1 |
Alcohol Dispenser | PP | 1 |
Manual Stripper | CF-02 | 1 |
USB Cable | - | 1 |
