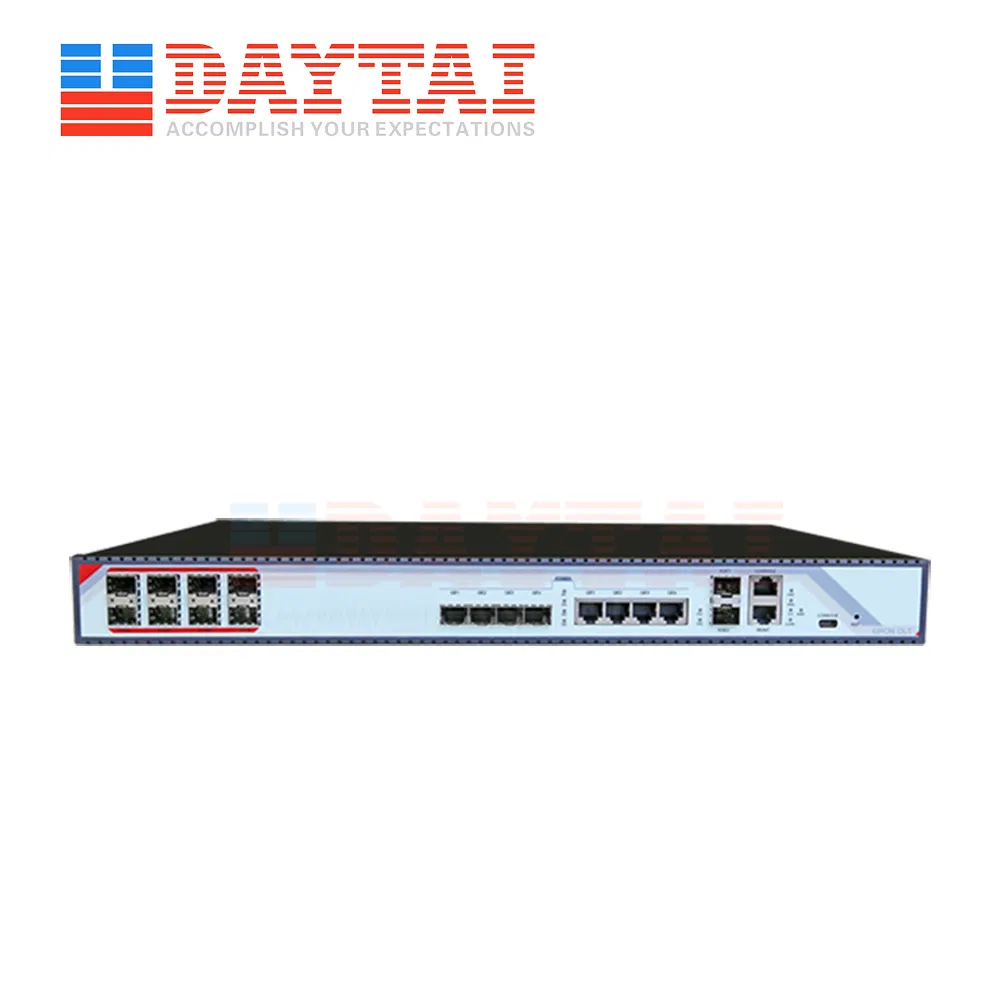

Layer2 Gpon 8 Pon Port Gpon Olt Connecting 1024 Gpon Ont
DescriptionDAYTAI presents the industry's leading GPON solution of DT-GOLT-1008S, which complies with the relevant standards of ITU G.984.x and FSAN. DT-GOLT-1008S is 1U Rack mount equipment, 8pon ports, 8 GE uplink optic ports, 8 GE uplink electric ports. The maximum optical coupling ratio of 1......
Send Inquiry
Product Description
Description
DAYTAI presents the industry's leading GPON solution of DT-GOLT-1008S, which complies with the relevant standards of ITU G.984.x and FSAN. DT-GOLT-1008S is 1U Rack mount equipment, 8pon ports, 8 GE uplink optic ports, 8 GE uplink electric ports. The maximum optical coupling ratio of 1:128, up to 1024 GPON ONTs. The down link band width is 2.5Gbps and uplink bandwidth is 1.25Gbps. The product is in compact design and convenient for flexible using, easy to deploy with high performance. It can meet the requirements of equipment performance and compact volume of the room environment. It can also satisfy the requirements of the access network and enterprise network that enhancing the network function, improving the reliability and reducing power consumption. The product is suitable for the "triple play" service, the resident of optical access network, video surveillance network, enterprise network and the Internet of the network applications..
Specification
| Item | DT-GOLT-1008S FD1108S | |
| Chassis | Rack | 1U 19 inch standard box |
| Slots | 1*10 Gigabit uplink card slot 2 power module slot | |
| Uplink Port | Copper | 8*10/100/1000M auto-negotiable |
| SFP | 8 SFP slots(1000BASE-TX interface) | |
| 10GE card | 2 SFP (optional) | |
| PON Port | QTY | 8 |
| Physical Interface | SFP Slots | |
| Connector Type | ITU-TG.984.2Class B+ | |
| Max splitting ratio | 1:128 | |
| Management Ports | 1 10BASE-TX out band port 1 CONSOLE port | |
| PON Port Specification (Apply to C-Data PON module) | Transmission Distance :20KM, PON port speed: Downstream Data Rate: 2.5Gbps, Upstream Data Rate: 1.25Gbps, Wavelength: 1490nm TX,1310nm RX, Connector: SC, Fiber Type: 9/125μm SMF, TX Power: +1.5~+5dBm, Rx Sensitivity: -28dBm, Saturation Optical Power: -8dBm | |
| Management Mode | SNMP, Telnet, CLI | |
| Management Function | Support for state monitoring, configuration management, equipment log, equipment upgrades, equipment management, user management.Layer-2 switch configuration such as Vlan, Trunk, RSTP, IGMP, QOS, etc. PON management function: DBA ,ONT authorization, ACL, QOS, etc. Online ONT configuration and management. User management. Alarm management | |
| Dimension | 440mm(L)*391mm(W)*44mm(H) | |
| Weight | 4kg | |
| Power Supply | 220VAC | AC: 90V~240V,47/63Hz |
| -48DC | DC:-36V~-72V | |
| Power Consumption | 65W | |
| Operating Environment | Working Temperature | 0~50ºC |
| Storage Temperature | -40~85ºC | |
| Relative Humidity | 5~90%(non condensing) | |
Q1:What's the delivery time?
Re:The lead time is 15-20days after order confirmed.
Q2:Can you send me a free sample?
Re: We are willing to send you free sample,if you would like to pay the shipping costs.
Q3:What's your payment terms?
Re: 30% in advance, and 70% before shipment.
Q4:What's the payent method?
Re: We accpet T/T, Western Union, Paypal.
Q5:How to ship the items to me?
Re: Courier (DHL , TNT , FEDEX , UPS , EMS ) , By Air, By Sea are available.
