Product Description

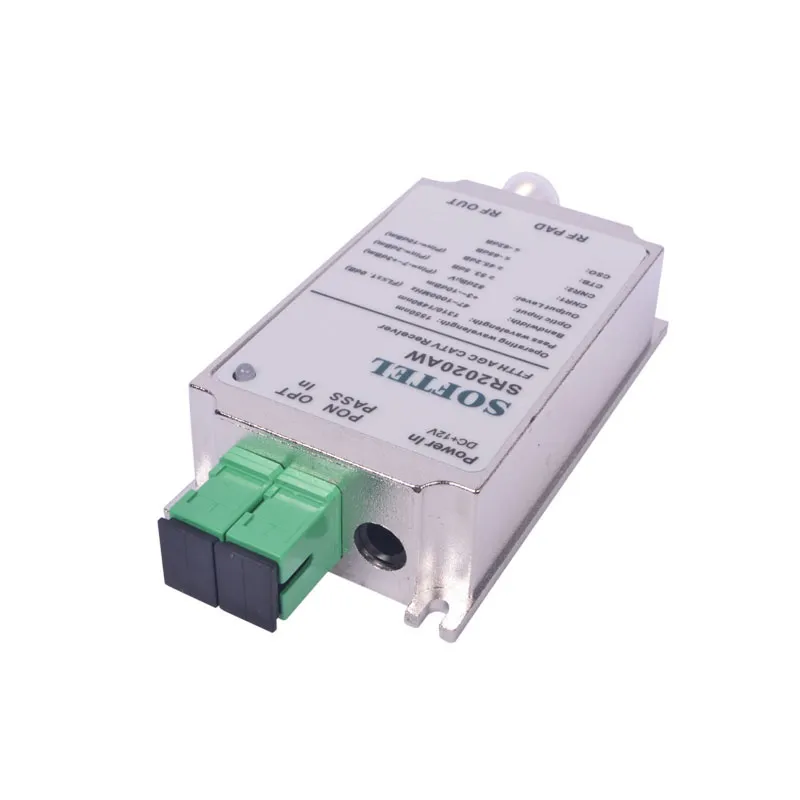

Mini Node FTTH Optical Receiver Build-in WDM / Mini Node

Features

Designed for FTTH(Fiber To The Home) networks
· Excellent linearity and flatness
· Wide range of optical input power
· Single-mode fiber high return loss
· Using GaAs amplifier active devices
· Ultra low noise technology
· Smaller size and easier install
· Red-LED for power indication
· Color-LED for optical power indication
· 1310nm/1490nm Optical Bypass Port to ONU
· Build-in WDM
· Double color LED for optical power indication (Non-lighted: Optical power<-10dBm, Green: 10dBm<optical power<+3dBm, Red: Optical power>+3dBm)

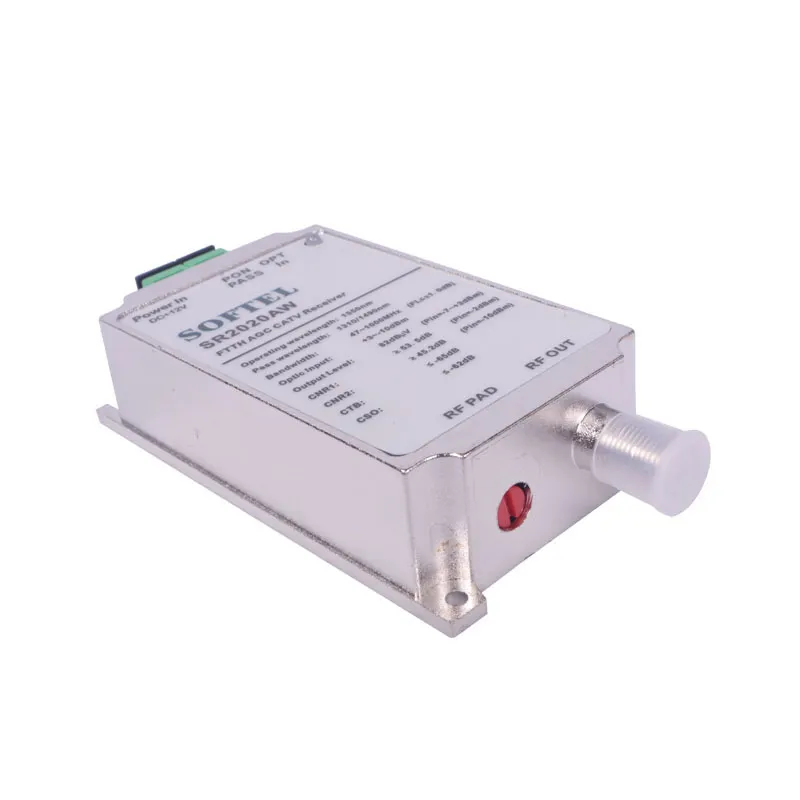

Mini Node FTTH Optical Receiver Build-in Wdm

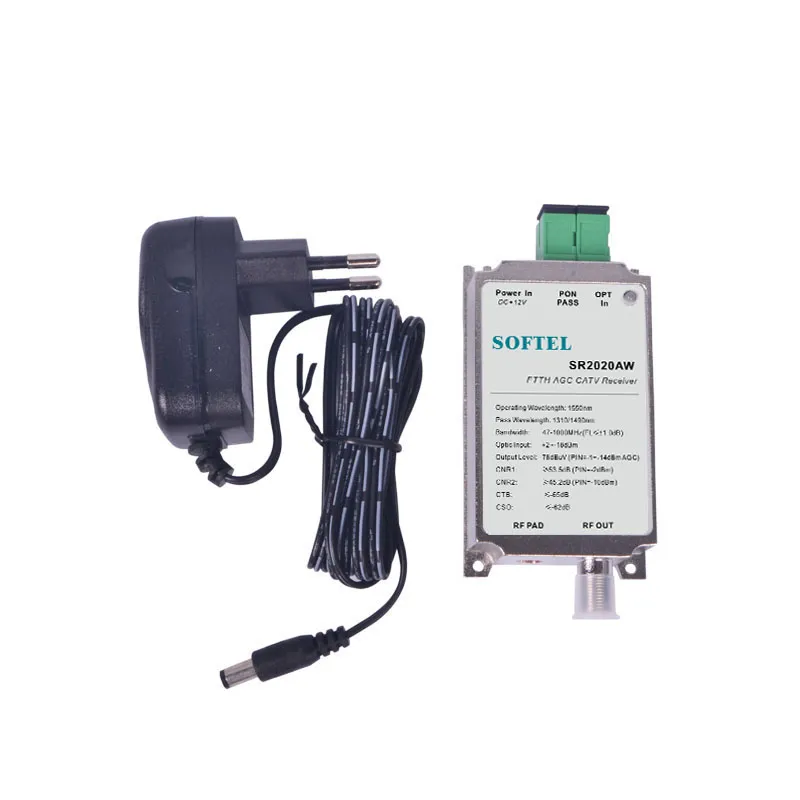

Mini Node FTTH Optical Receiver Build-in Wdm

Number Item	Unit	Description	Remark
Customer Interface
RF Connector		F-female
Input Optical Connector		SC/APC or FC/APC
Output Optical Connector		SC/UPC or FC/UPC
Power Supply		F-female
Optical Parameter
Responsivity	A/W	≥0.9
Input Optical Power	dBm	-10~ +3
Optical Return Loss	dB	≥45
Input Wavelength	nm	1260~ 1600
Receive Wavelength	nm	1550
Bypass Wavelength		1310/1490
Optical Fiber Type		Single Mode
RF Parameter
Frequency Range	MHz	47-1000
Flatness	dB	±0.75
Output Level	dBµV	≥80	-1dBm input power
CNR	dB	≥50	-1dBm input power
CSO	dB	≥62
CTB	dB	≥65
Return Loss	dB	≥16
AGC Stability	dB	±1
Output Impedance	Ω	75
Other Parameter
Power Supply	VDC	12
Power Consumption	W	<2
Dimensions	mm	1009828
