Mini Sc Simplex Singlemode G657A Mini Sc Connector Patch Cord
mini SC simplex singlemode G657A mini sc connector patch cordH connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy conne......
Send Inquiry
Product Description

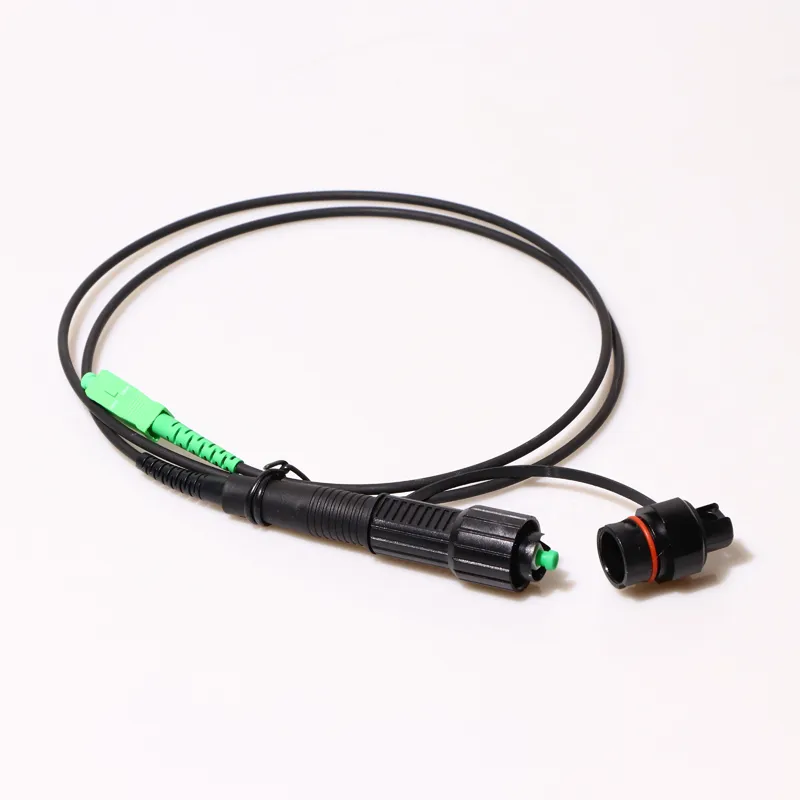

mini SC simplex singlemode G657A mini sc connector patch cord
H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications
Features
Provides superior weather resistance for FTTA and other outdoor applications.
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
Suitable for FTTA and outdoor temperature extremes
Ensures functionality in harsh weather environments
Can be installs without special tooling
Threaded style coupling
Provides bend protection for installation and long term use
Specifications
Design and Test Criteria | Telcordia GR-3120 & GR-326 |
Connector Type | SC, LC |
Operation Temperature | -40°C to 70°C |
Insertion loss | <0.25dB |
Reflection loss | < - 50dB (PC); <-65dB (APC) |
RoHS | Free of Hazardous Substance |
Cable Specification:
Item | Data |
fiber | OS2,OM1,OM2,OM3,OM4 |
Tension member | Aramid Kevlar,Armoured Tube |
Max. attenuation | SM:≤0.34dB/km at 1310nm,≤0.20dB/km at 1550nm MM:≤0.60dB/km at 1300nm,≤2.3dB/km at 850nm |
Tensile resistance(short term) | 500N(no breakage) |
Crush resistance(short term/long term) | 1000N/100mm |
inflaming retarding | IEC 60332-3 |
Temperature | -40~+70°C |
Uvioresistant | PASS |
Authentication | Meet with RoHS &UL |
