Mini SFP 10/100Mbps Fiber Optic Media Converter

Product Description

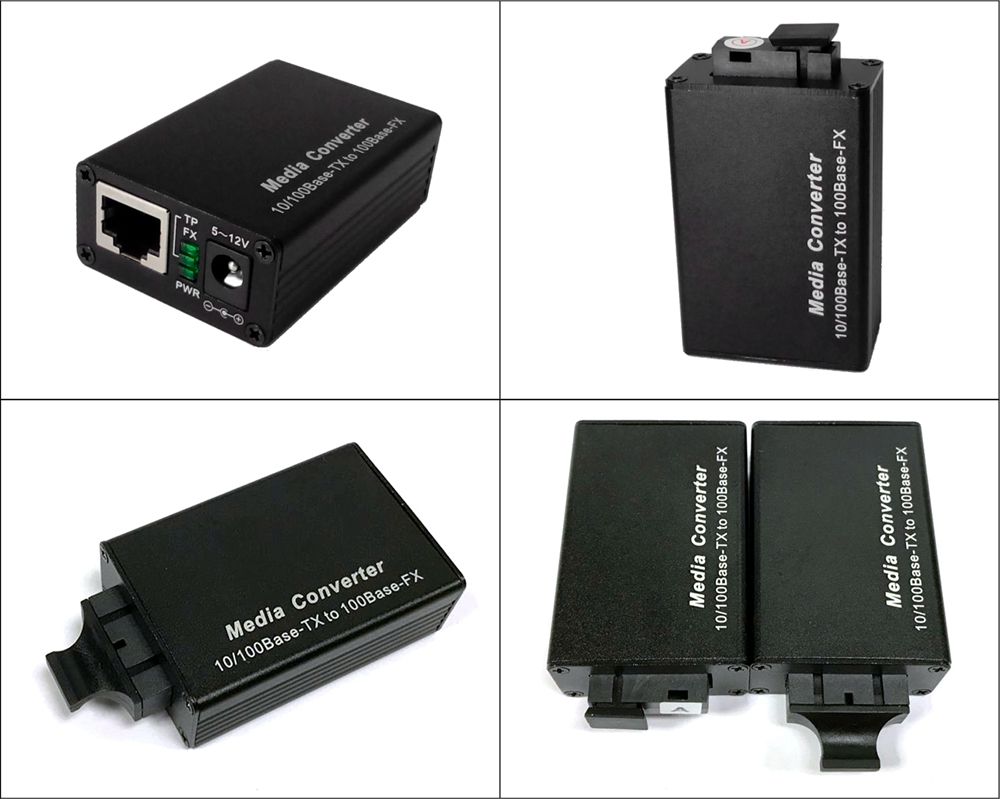

Mini SFP 10/100Mbps Fiber Optic Media Converter

Description:
The mini 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter is fully compliant with IEEE802.3U, IEEE802.3z 1000Base-TX/FX protocols.The converter can support auto MDI-MDIX function, flow control for full and half duplex operation, etc. A DIP switch is placed at the bottom of the case.Depend on different configurations, the user can set the different operating mode (Force FX to 100M, pass through mode and LLCF).

Key Features:
1. 10/100/1000Base-TX UTP to 1000Base-FX fiber media convertion
2. Support IEEE802.3U,IEEE802.3z, 1000Base-TX/FX standards
3. Choice of SC, BiDi or other connectors for multimode and singlemode
4. DIP switch to set different configurations
5. LFP (Link Fault Pass-through) support
6. Compact package size

Specification:

Data Rates:	. 10/100/1000Mbps (IEEE802.3U IEEE802.3z 1000Base-Tx) . 1000Mbps (1000Base-FX) or 100Mbps (100Base-FX)
Input Power Requirements:	. Input voltage :DC 5-12V . Power Consume: 3 Watts maximum
Environmental Conditions:	. Operating temperature : 0°C to 40°C . Cooling : free air convection . Storage temperature : -20°C to +85°C . Operating Humidity : 90% max, non-condensing

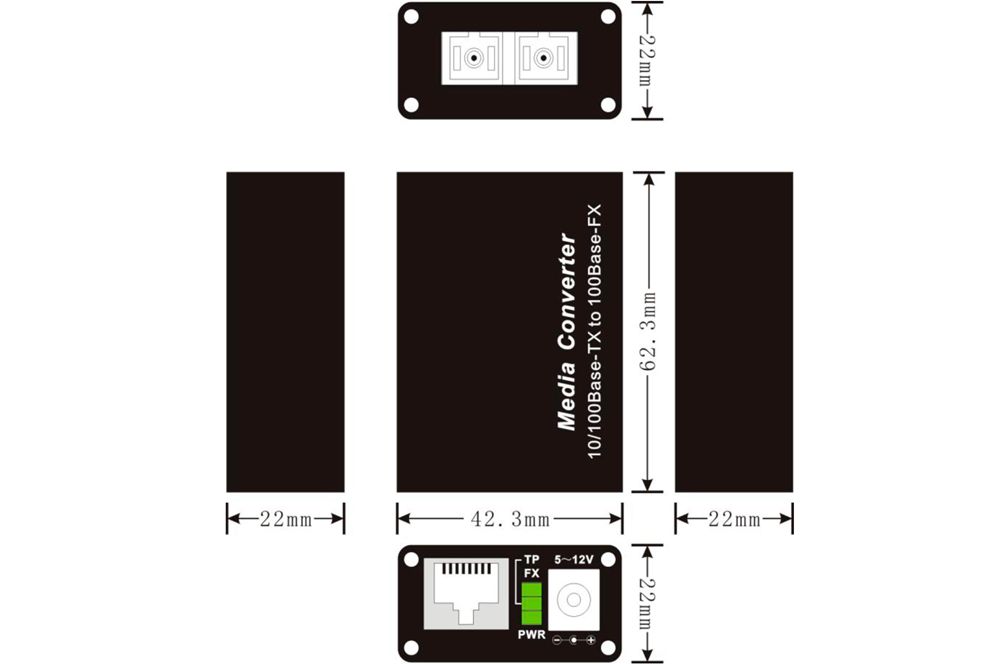

Mechanical Specifications	. Case Material : Iron . Case Color : Black . Net Weight : 150g approx. / unit . Dimensions: 60 (W) x 20 (H) x 90 (L) (mm) Do not include transceiver length
Warranty	. 2 years hardware warranty

Note: Specifications subject to change without notice

Ordering information:

Fiber transmission distance	TX wave length	Fiber interface
2: 2KM	3: 1310nm	S: Single-mod
20: 20KM	5: 1550nm	M: Multi-mode
40: 40KM	8: 850nm	B: Single-mode bi-directional
SFP: SFP type (do not include SFP transceiver module
