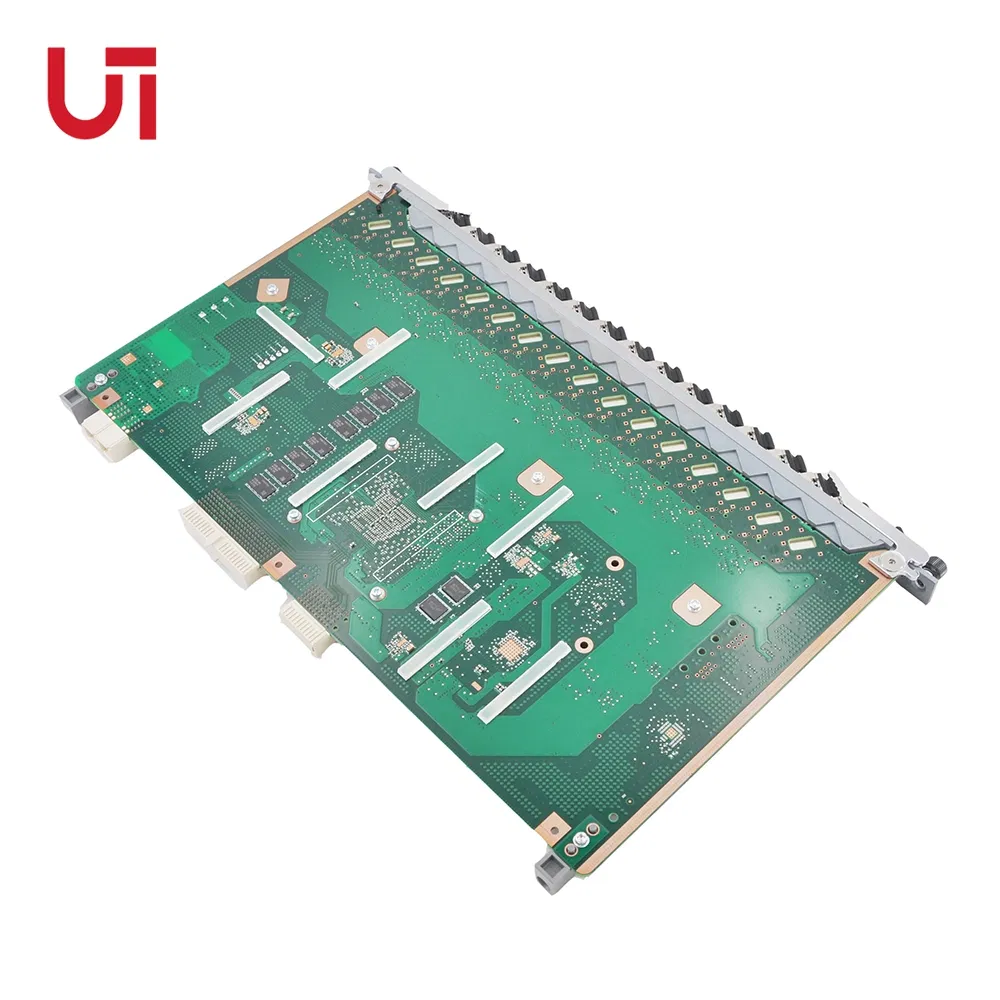

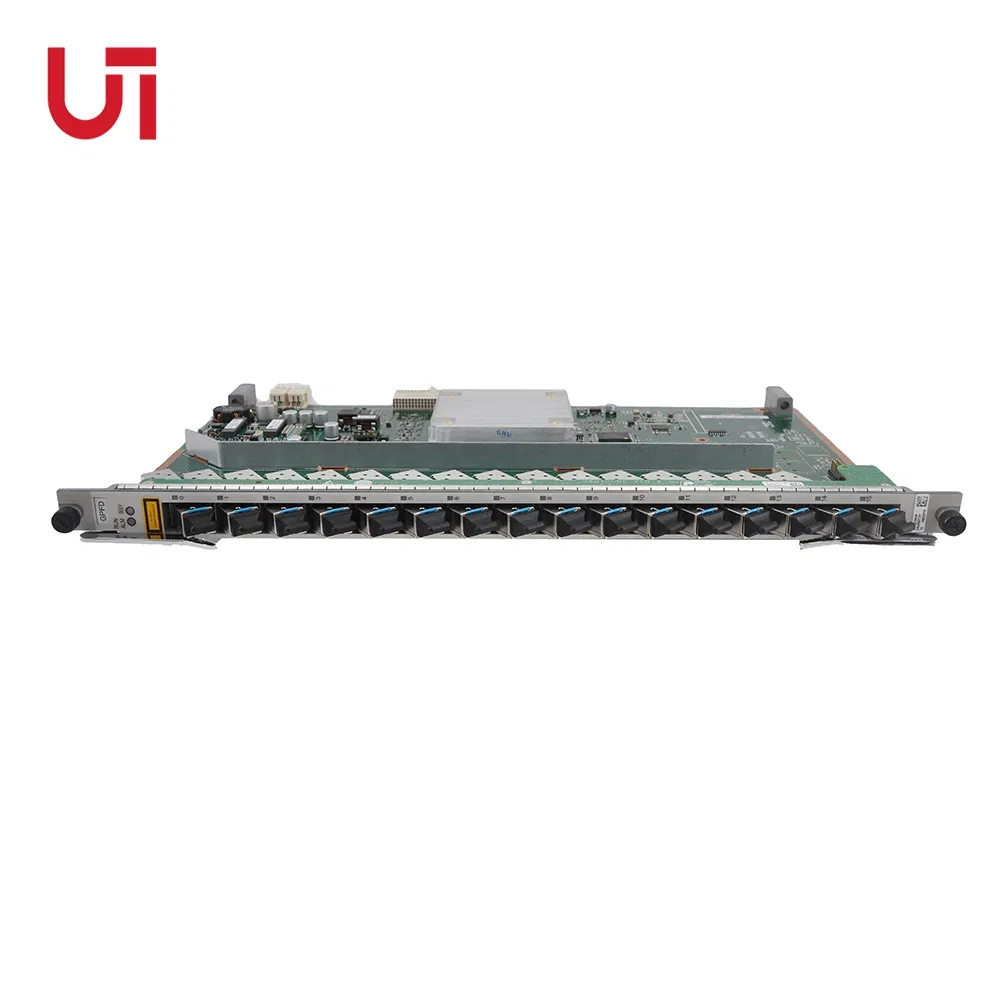

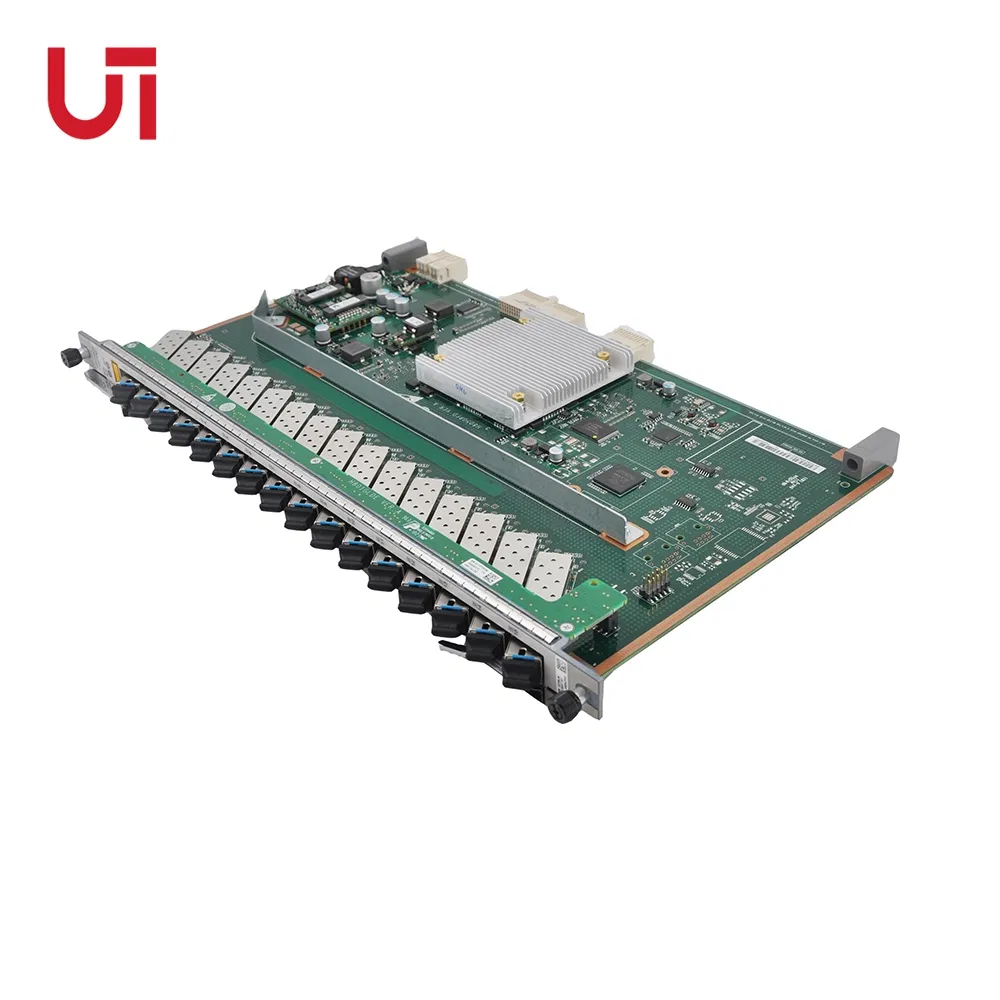

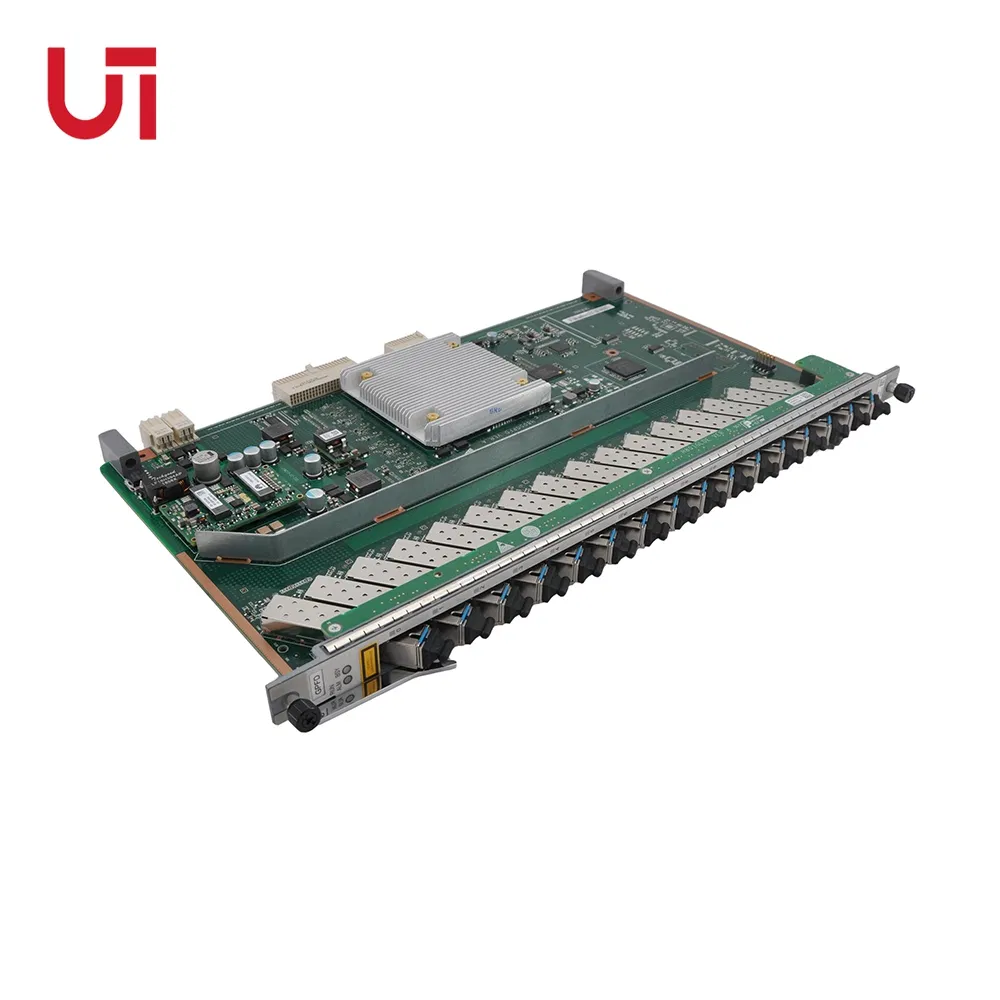

Original New Gpon/Epon/Gepon Olt FTTH Olt Gpfd C+ Board Compatible with Huawei Olt
Original New Gpon/Epon/Gepon Olt FTTH OLT GPFD C+ board Compatible with Huawei OLTProduct Features: Carrier-class stability and network resiliencyl Adopt large-scale NGBN operation system with intellectual property rights in the global carrier networkl Support PON fiber redundancy protection and d......
Send Inquiry
Product Description
Product Features:
Carrier-class stability and network resiliency
l Adopt large-scale NGBN operation system with intellectual property rights in the global carrier network
l Support PON fiber redundancy protection and device redundancy protection protocol
l Support rich security features to protect the users, devices and network.
l Dual power supply input and power redundancy
l All PON GE and 10GE ports provide L2/L3 full-line speed without losing packets
Full PON service
l Each PON support 1:128 splitting ratio ( The maximum quantity of 128 ONU)
l Hot plug PON fibber module design, the farthest 20Km transmission distance
l Support 128bits triple churning function to ensure the confidential for the data transmission
l Support dynamic bandwidth distribution DBA algorithm
Powerful OAM
l Use packet forwarding based on hardware to be effective for feature detection and packet filtering
l Support auto protection and user blocking for ARP attack based on MAC address
l Support all kinds of protecting DDoS, CPU over-current and VRRP etc
l Support BFD, FlexLink, auto linkage aggregation and Ethernet Ring protection
Product Specification:
Item | E8604T |
Switching capacity | 108Gbps |
Throughput(IPv4/IPv6) | 80Mpps |
Service port | 8*PON,8*GE ,8*10GE |
Redundancy design | Dual power supply, support AC input,dual DC input and AC+DC input |
Power supply | AC:90~240V,47~63Hz ; DC:-36V~-72V; |
Power consumption | ≤56W |
Outline dimensions (mm) (W*D*H) | 442mm×44mm×315mm |
Weight (in maximum configuration) | ≤3kg |
Environmental parameter | Working temperature:0°C~50°C Storage temperature:-20°C~70°C Relative humidity:10%~90%,no condensing |
