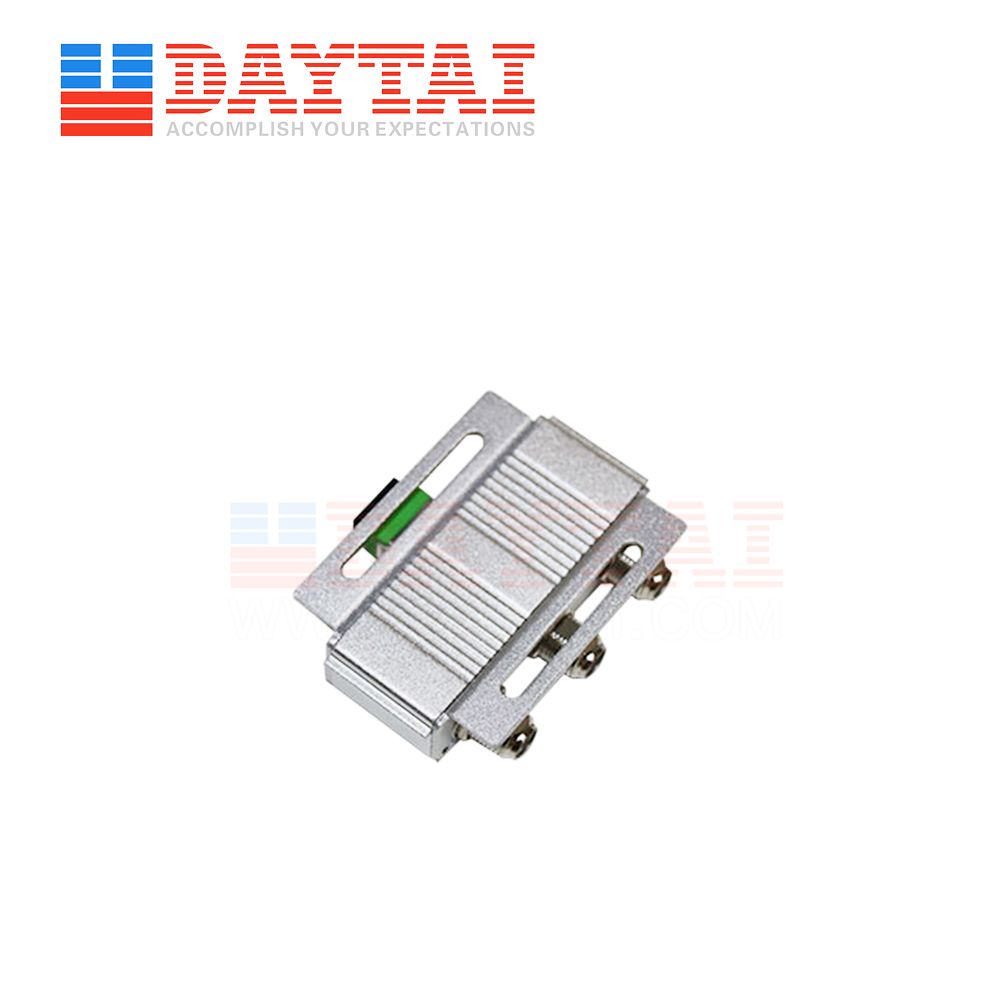

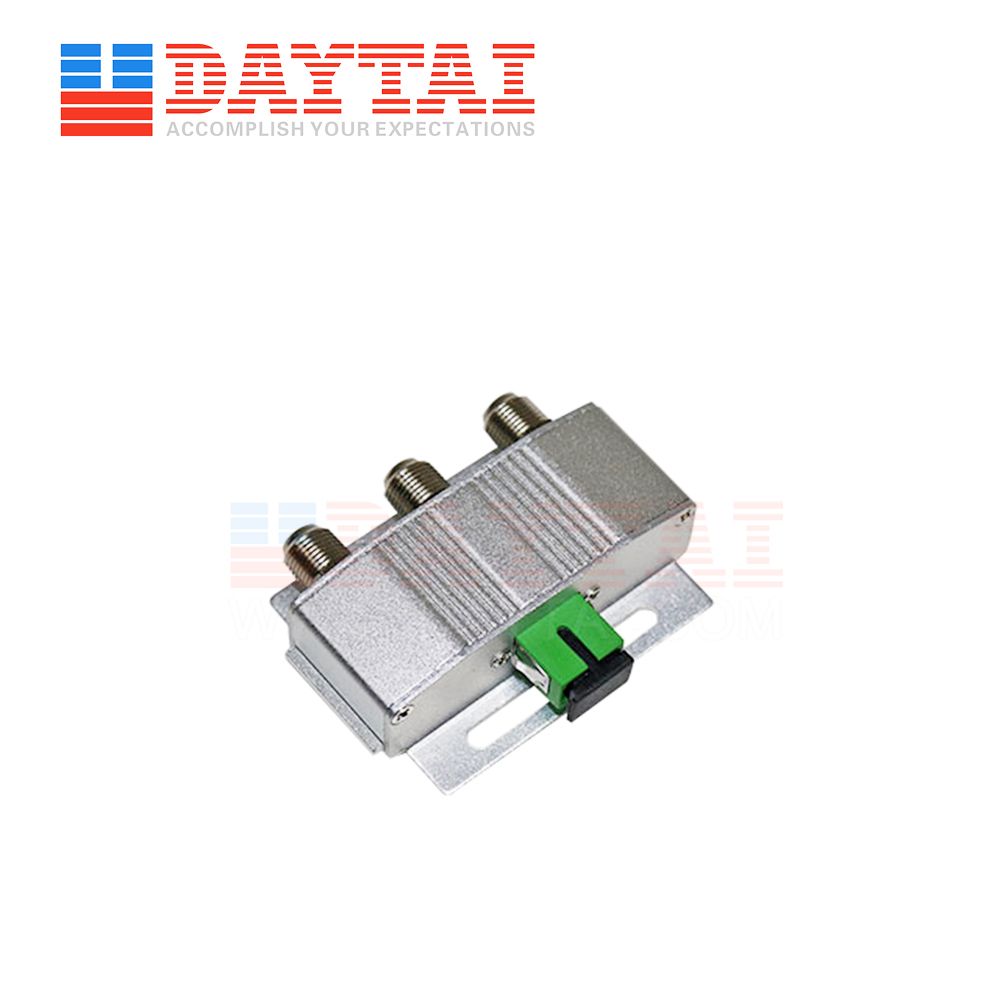

Passive 3 Way FTTH Optical Converter Node Receiver for Digital TV
Description Passive 3 Way FTTH Optical Converter for Digital TV,input Optical Power:0~-15dbm,Optical Return Loss:>45db,Optical Receiver Wavelength:1100~1600 nm,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHZ,SC/APC to F-Female connector,Dimensions:45*65*20 mm, Net weight:0.052KG.Feature......
Send Inquiry
Product Description
Description
Passive 3 Way FTTH Optical Converter for Digital TV,input Optical Power:0~-15dbm,Optical Return Loss:>45db,Optical Receiver Wavelength:1100~1600 nm,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHZ,SC/APC to F-Female connector,Dimensions:45*65*20 mm, Net weight:0.052KG.
Features
No Power Required
Optical Connector: SC/APC
Good Linearity and Flatness
Smaller size and easier install
Designed For FTTH (Fiber To The Home Network)
3-Way RF Output with equal out 66dBuV @-1dBm
Frequency range 40-1000MHz For CATV End-users
Aluminum Profiles casing,excellent heat dissipation performance
Product Performance
| Item | Unit | Description | Remark |
| Customer Interface | |||
| RF Connector | 75Ω F-Female" connector | ||
| Optical Connector | SC/APC | Can be Customized | |
| Optical Parameter | |||
| Input Optical Power | dBm | 0~-15 | Digital TV |
| Optical Return Loss | dB | >45 | |
| Optical Receiver Wavelength | nm | 1100~1600 | |
| Optical Fiber Type | Single Mode | ||
| RF Parameter | |||
| Frequency Range | MHz | 40-1000 | |
| Flatness | dB | ±0.5 | |
| Output Level RF1 | dBuV | ≥66 | -1dBm input power |
| Output Level RF2 | dBuV | ≥66 | -1dBm input power |
| Output Level RF3 | dBuV | ≥66 | -1dBm input power |
| Output Impedance | Ω | 75 | |
| C/N | dBc | 52 | -1dBm input power |
| Other Parameter | |||
| Power Input Voltage | VDC | 0 | |
| Power Consumption | mA | N/A | |
| Dimensions | mm | 45*65*20 | |
| Net weight | KG | 0.052 | |
