Rack Mounted Fiber Optic Distribution Box ODF
Rack Mounted Fiber Optic Distribution Box ODF Product DescriptionFeatures1. 1.5mm steel sheet for strong housing2. Slim 1 Unit Mounting Height3. Ball bearing slid rails with positive stop4. Sliding design is easy to work for patching the connectors5. Hinged front panel is easy to be turned over &......
Send Inquiry
Product Description

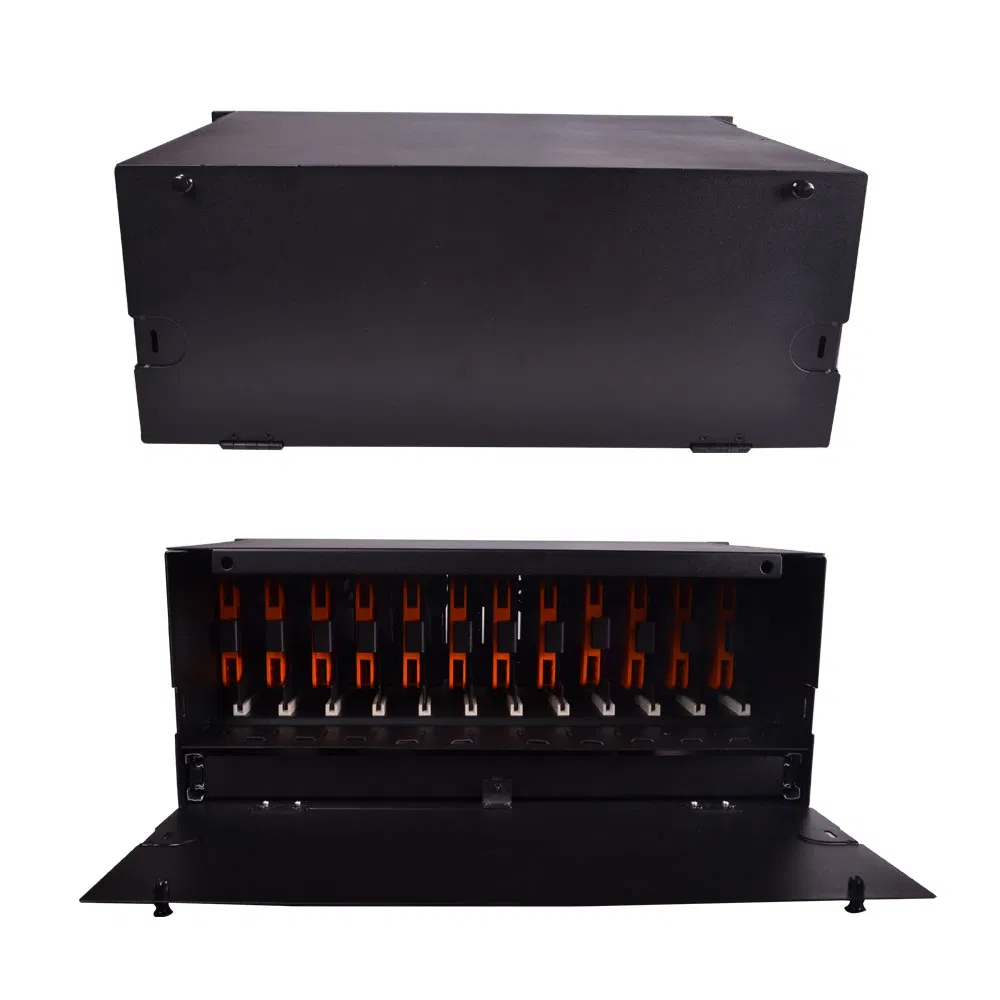

Rack Mounted Fiber Optic Distribution Box ODF
4. Sliding design is easy to work for patching the connectors
5. Hinged front panel is easy to be turned over & be fixed by snap-in locker
6. Front-mounted cable saddles for jumper management
7. Can manage both splices and terminations
8. Preassembled shelves in multiple configurations

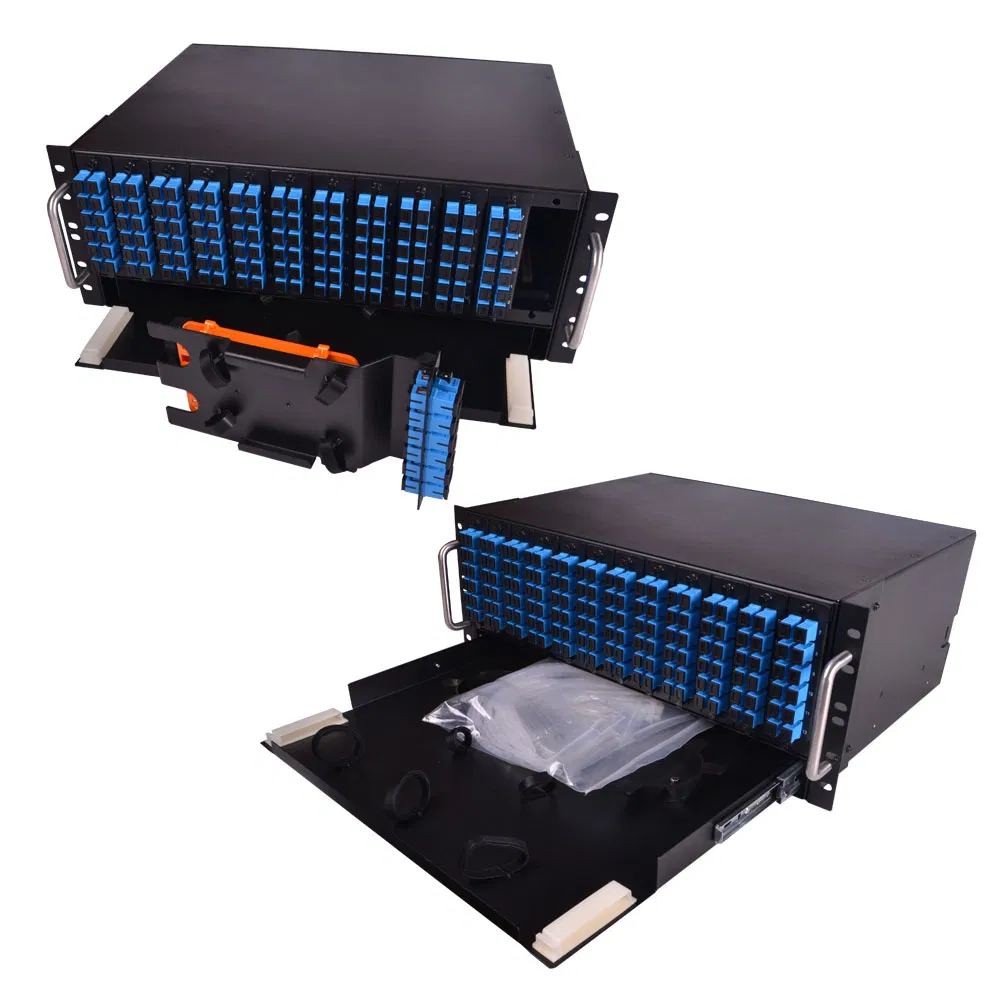

9. Can includes adapter panels for up to 72 144SC terminations
10. High density splice tray contains 24 fiber maximum in one tray
11. Clear plastic cover to protect the fibers.
12. 4 fiber saddles built-in for 900um tight buffered fiber winding & storing.
13. Capable of storing up to 3 meters of 900 μm tight buffered fiber per adapter
14. Snap-in locker design, easy to change adapter panels for various connector patching
15. Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable, and minimizes dust build-up
16. Accessory kit consists of cable ties, mounting ear screws, and spiral wrap tube

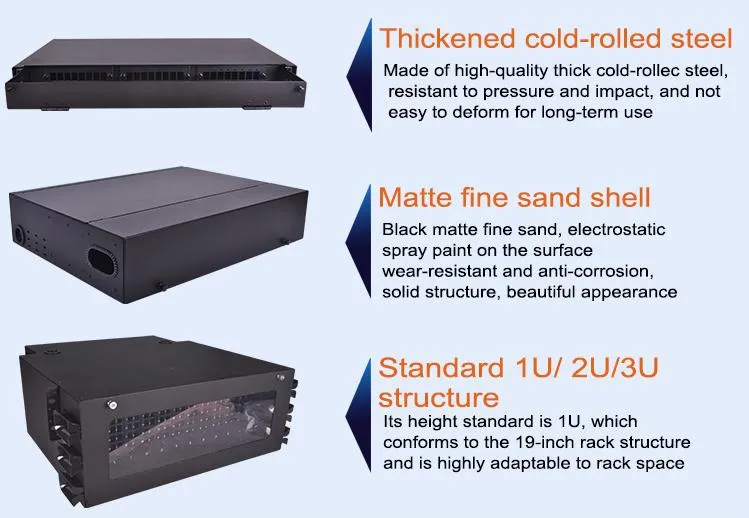

1. 1.5mm steel sheet for strong housing
2. Slim 1 Unit Mounting Height
4. Sliding design is easy to work for patching the connectors
5. Hinged front panel is easy to be turned over & be fixed by snap-in locker
6. Front-mounted cable saddles for jumper management
7. Can manage both splices and terminations
8. Preassembled shelves in multiple configurations
9. Can includes adapter panels for up to 72 144SC terminations
10. High density splice tray contains 24 fiber maximum in one tray
11. Clear plastic cover to protect the fibers.
12. 4 fiber saddles built-in for 900um tight buffered fiber winding & storing.
13. Capable of storing up to 3 meters of 900 μm tight buffered fiber per adapter
14. Snap-in locker design, easy to change adapter panels for various connector patching
15. Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable, and minimizes dust build-up
16. Accessory kit consists of cable ties, mounting ear screws, and spiral wrap tube
Model Number | Max Capacity | Packing Info | |||||
Adapter(SC/LC/FC/ST) | Adapter Plates | Splice Tray | Dimension | Packing Size | Carton Capacity | Carton Dimension | |
ODF-A4 | 48/48/48/48 | 4 | 2 | 436*421.7*1U | 495*470*90 | 3pcs | 520*490*295 |
ODF-B2 | 36/48/36/36 | 2 | 2 | 430*327*1U | 490*370*50 | 5pcs | 510*390*50 |
ODF-C4 | 48/48/48/48 | 4 | 2 | 439*327*1U | 520*370*50 | 5pcs | 540*290*390 |
ODF-D | 12-96 | 1--8 | 1--8 | 410*310*1/2/3/4/5.5U | 450*330*250 | 1--5pcs | 450*330*250 |
ODF-E2 | 48/48/36/36 | 2 | 2 | 410*310*1U | 490*370*50 | 5pcs | 510*390*290 |
ODF-E4 | 96/96/72/72 | 4 | 4 | 410*310*2U | 490*370*50 | 5pcs | 510*390*290 |

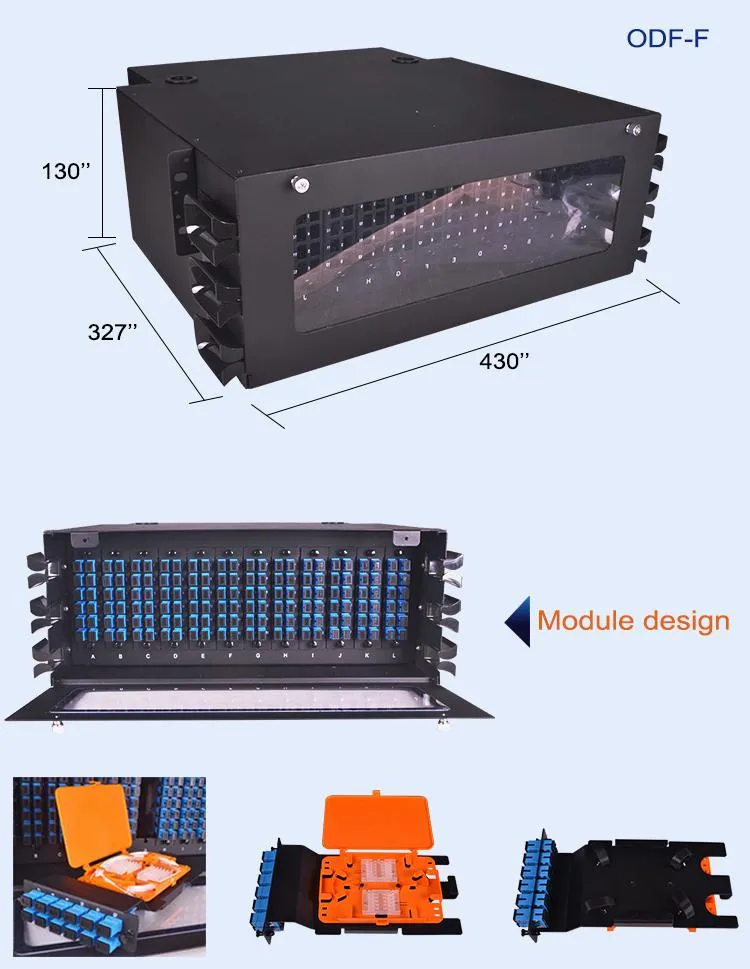

ODF-F12 | 144/288/144/144 | 12 | 12 | 439*452.5*4U | 560*490*240 | 1pcs | 560*490*240 |
