Sc Field Installable Quick Connector Fibr Optic Sc Fast Assembly Connector

Product Description

SC Field Installable Quick Connector Fibr Optic SC Fast Assembly Connector

Description:

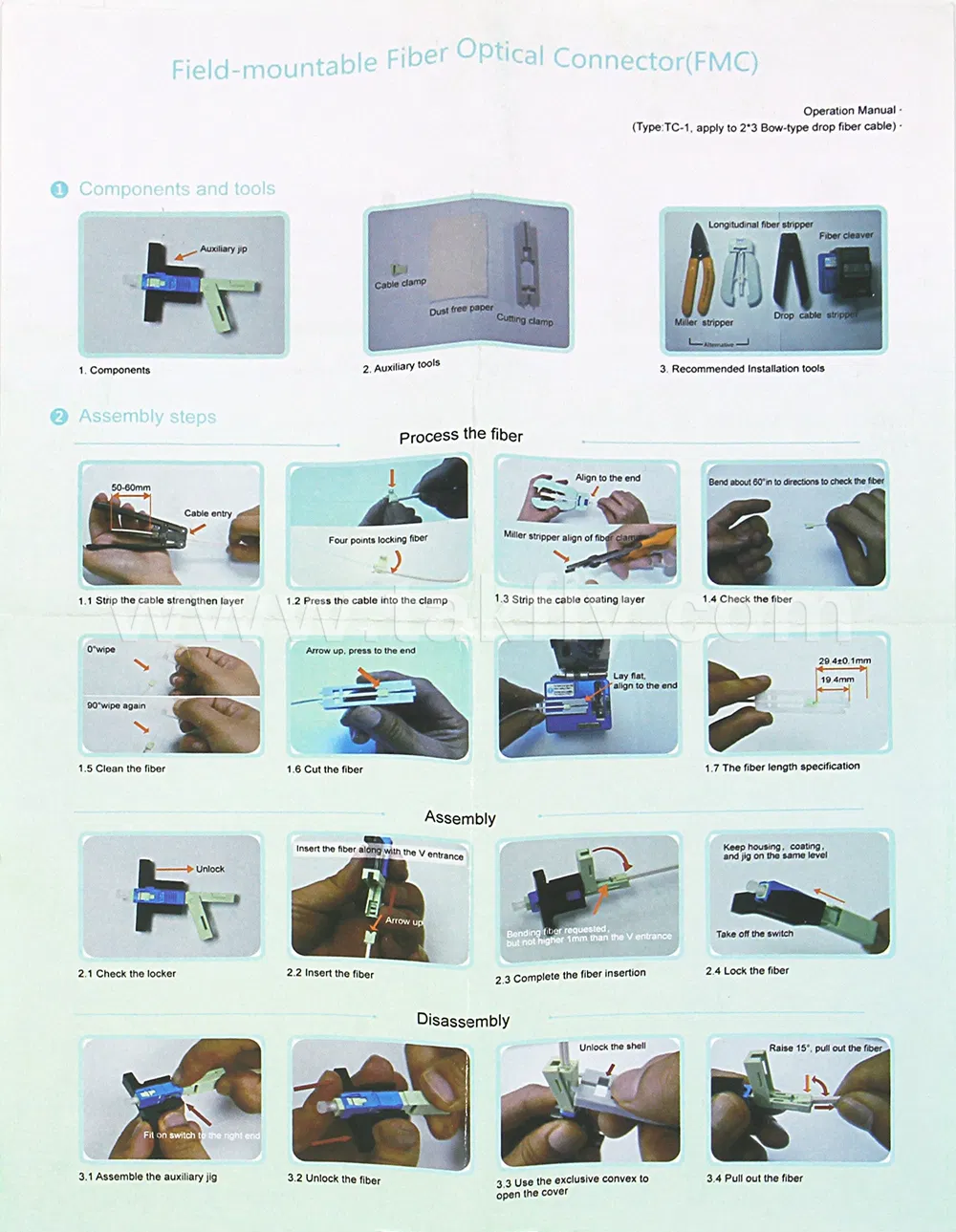

SC/APC Field Installable Fast Connector is used for field-installable optical fiber connector, widely used in Fiber To The Home (FTTH) access optical networks, not only for single-mode or multimode fiber, and can also choose to 900um,3 mm and the introduction of cable buffered type. With fast installation time and low insertion loss, the connector system provides a good alternative to fusion splicing. Installation is as easy as strip, clean, cleave cam and crimp.

Application:

1. Connections at the desk for LAN environments

2. Optical access network

3. Fiber to the Subscriber (FTTX) applications

4. Patch panels

5. Direct equipment termination

Feature:

1. Factory-installed fiber stub

2. No epoxy or polishing required

3. Quick and easy fiber termination in the field

4. Eliminates cable excess length and pigtail splice storage

5. Cost effective

Parameter:

Item	Value
Insertion Loss	Average≤0.2dB,Max≤0.4dB
Return Loss	PC:≥40dB,APC:≥55dB
One-Time Assembly Yield	≥97%
Assembly Repeatability	≥5 times
Average Assembly Time	≤3 minutes
Life-Time	≥30 years
Tensile Strength	≥30N(2.0x3.0 drop cable)
Operation Temperature	-40ºC~+85ºC
