Product Description

Slidable rack mounted type 576cores MPO 19inch Fiber Optic Patch Panel Distribution MPO Cassette
Description:
This high capacity ODF support fiber cable fast connection and distribution. It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug. It is an ideal equipment for supporting the fiber distribution in high-density capacity data center. It has simple & fast installation, compact design, high precision, plug and play etc. advantages.

Features:
Mini size MTP/MPO module, special design for saving space, high capacity;
Each module can support max. 24 LC ports to MTP/MPO;
Drawer type, easy to installation, convenient to fiber arrangement, save contruction cost;
The rack is made by aluminum material, light weight.
The module is made by ABS plastic.

Application:
Data center, Network room

Rack Specification:

Model	Capcity (fibers)	Dimension(mm) *(WHD)*	Drawer Qty (pcs)	Module Qty (pcs)
HODF-1U-144C	144	482.61U420	1	6
HODF-2U-288C	288	482.62U420	2	12
HODF-3U-432C	432	482.63U420	3	18
HODF-4U-576C	576	482.64U420	4	24

Module Specification:

*Model*	*Dimension*	*Adapter type & Qty*		*The length of ribbon cable*
HD-05	1366636mm	LC quad (no flang)	MTP/MPO	350mm
		6 pcs	2 pcs

Image:

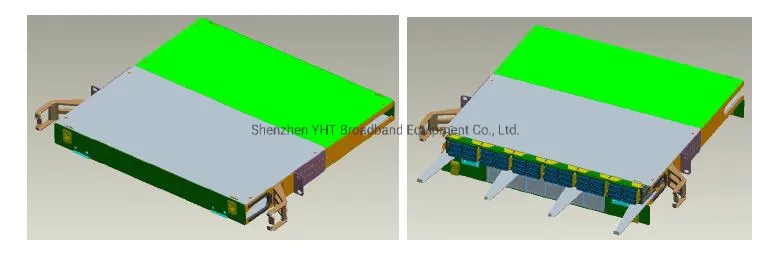

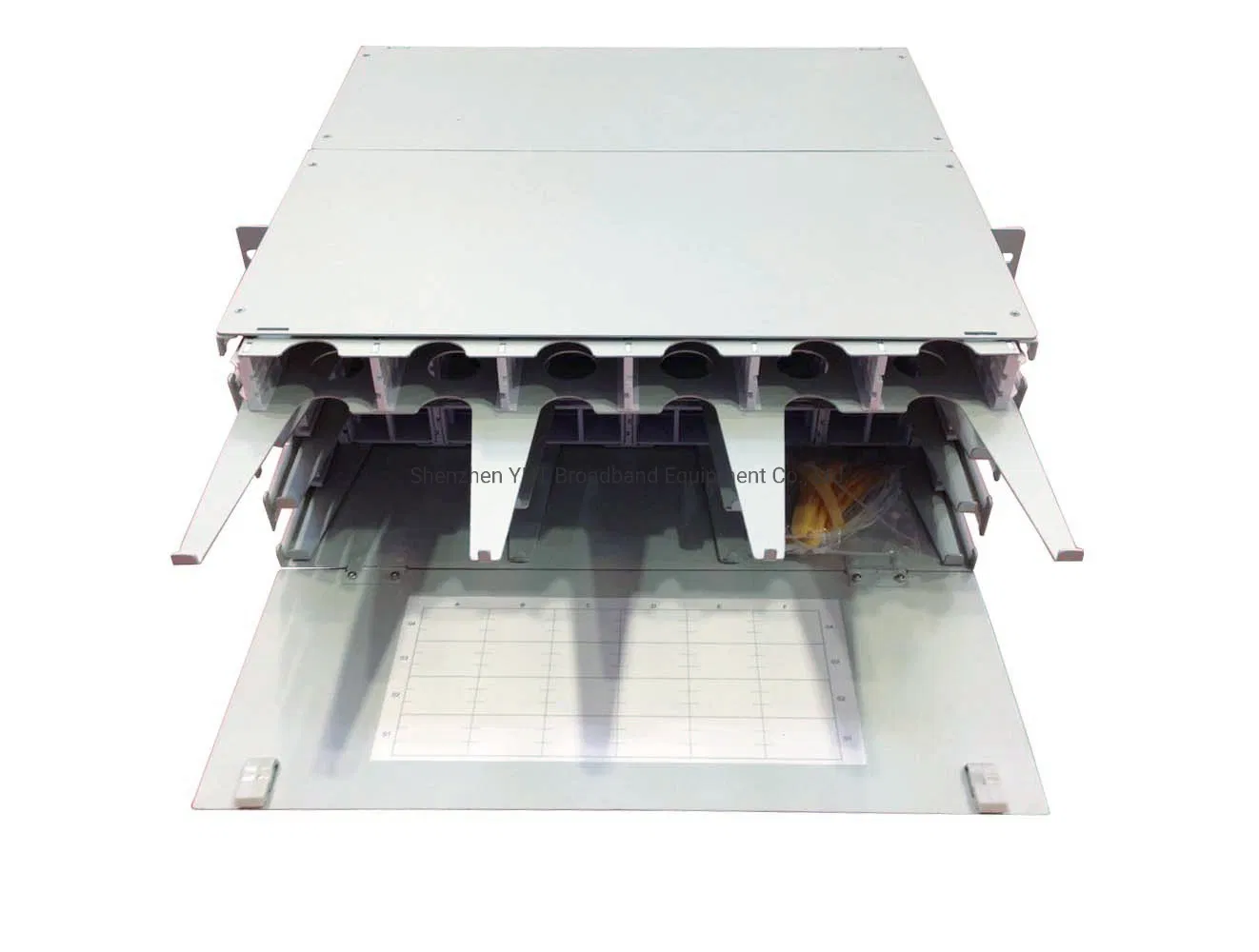

HODF-1U-144C

Slidable Rack Mounted Type 576cores MPO 19inch Fiber Optic Patch Panel Distribution MPO Cassette

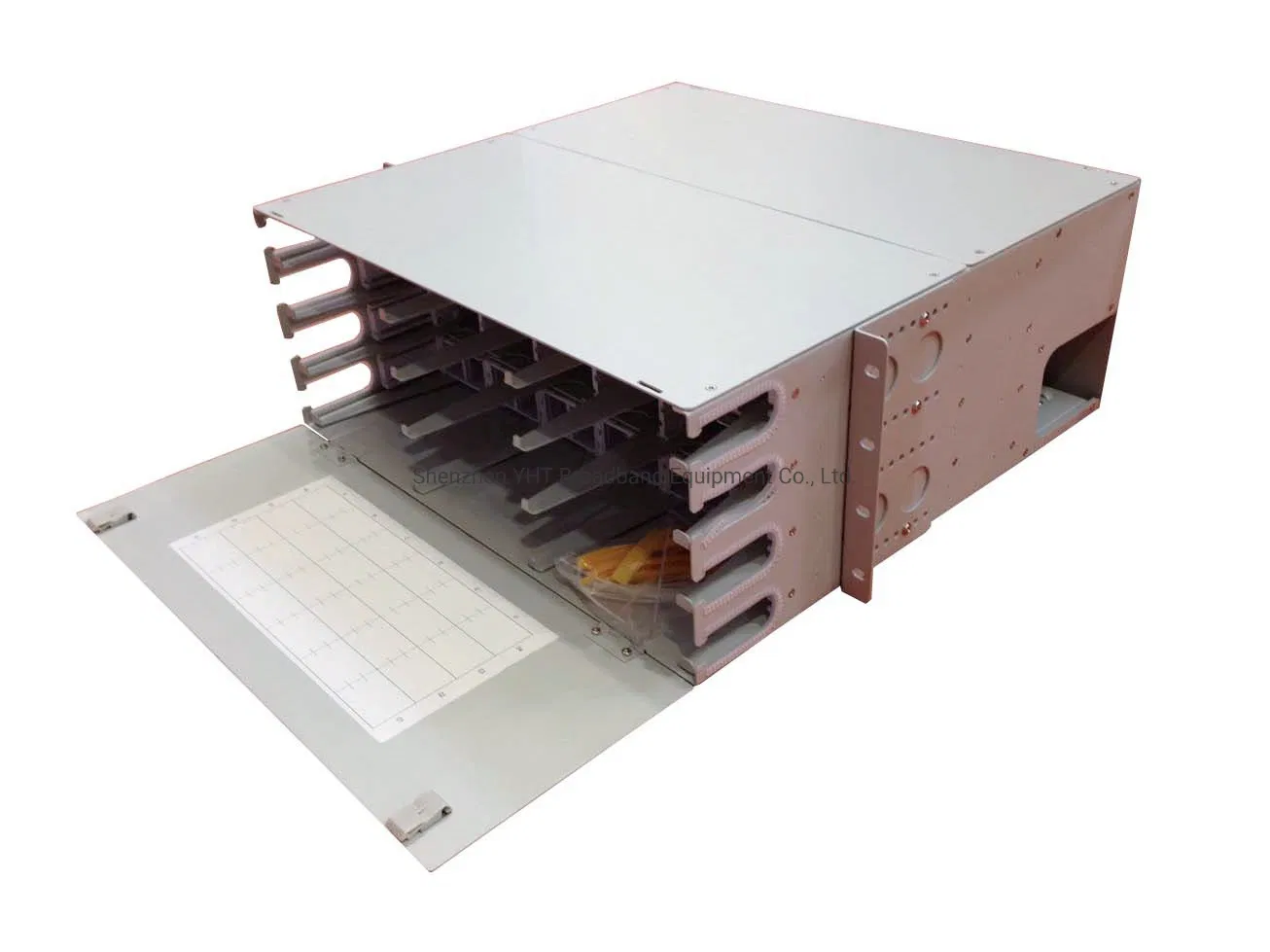

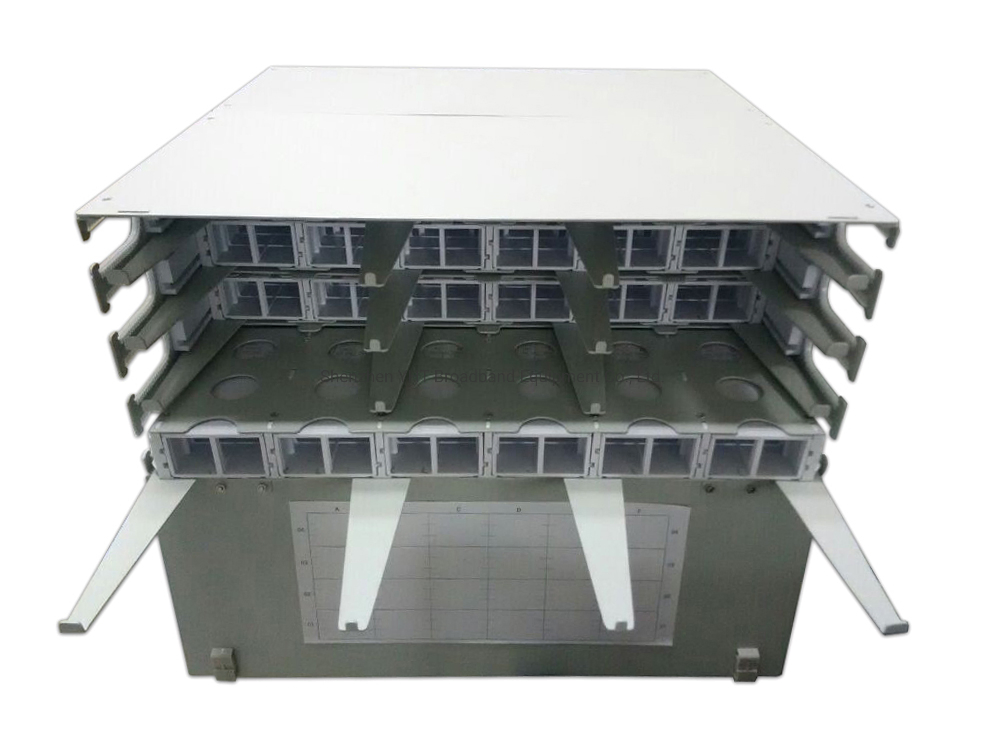

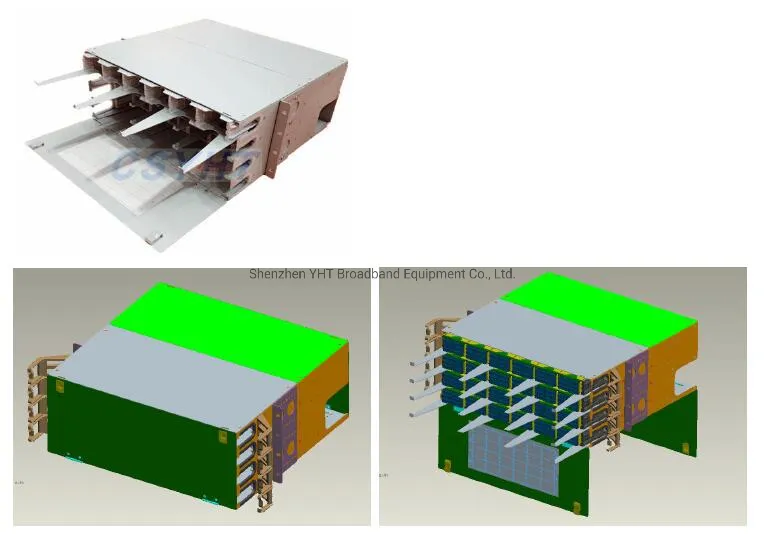

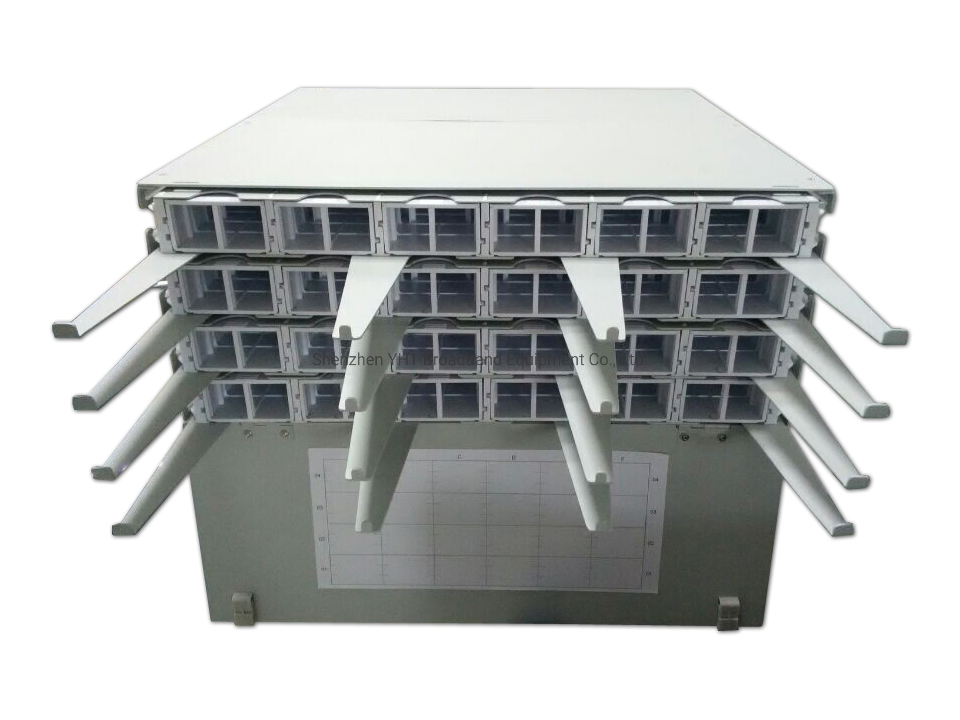

HODF-4U-576C

Slidable Rack Mounted Type 576cores MPO 19inch Fiber Optic Patch Panel Distribution MPO Cassette

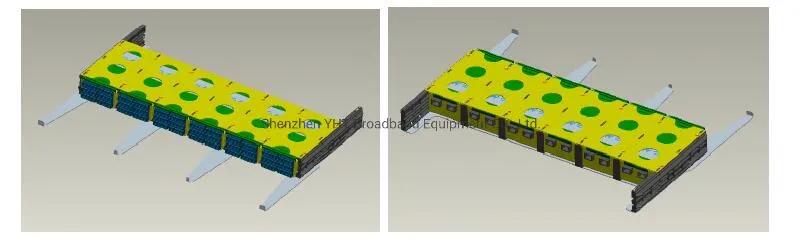

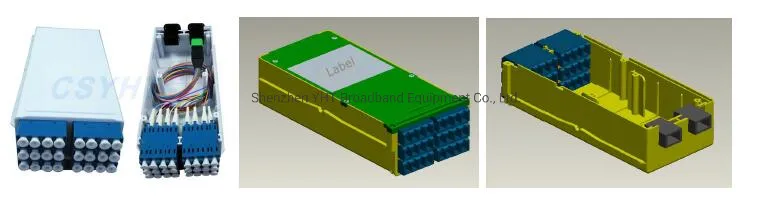

HD-05

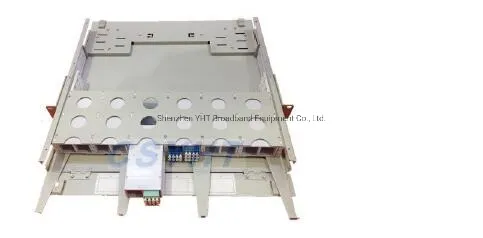

Drawer:

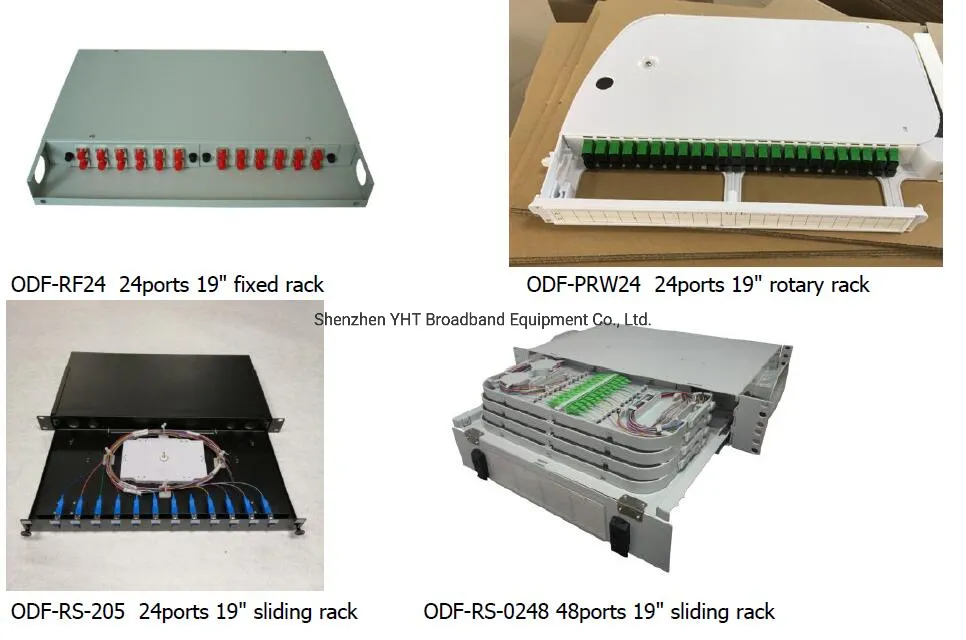

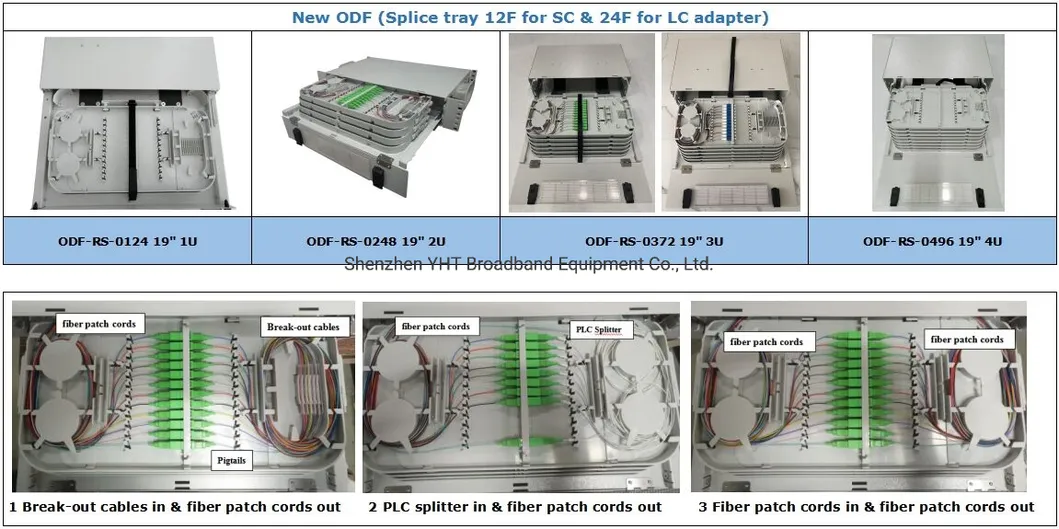

Our products covers: Fiber Optic Splice Closure / Optical Terminal Box / ODF / Fiber Optic patch cord & pigtail / PLC splitter/Attenuator

YHT is a 16 years professional manufacturer of fiber optic products that certified by ISO9001:2015.

Shenzhen YHT Broadband Equipment Co., Ltd. is a professional manufacturer established in 2003. It has 16 years
experience in R&D, production and sales of fiber optic products.
Its factory Huizhou YHT Broadband Equipment Co., Ltd. is located in YHT industry park and certified by ISO 9001:2015
management system, ISO 14001:2015 environmental management system, OHSAS 18001:2007 occupational health and
safety management system, GB/T 29490-2013 intellectual property management system etc.

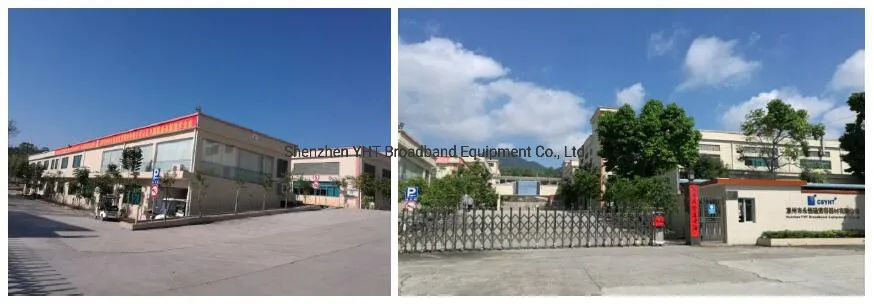

YHT industry park has more than 8 buildings that include YHT hardware, diemarking, injection moulding, painting,
assembling, optic cable production, connector & cable assembling workshops.

PP Material 72cors Dome Fiber Optic Splice Closure Load PLC Splitter and Adapter

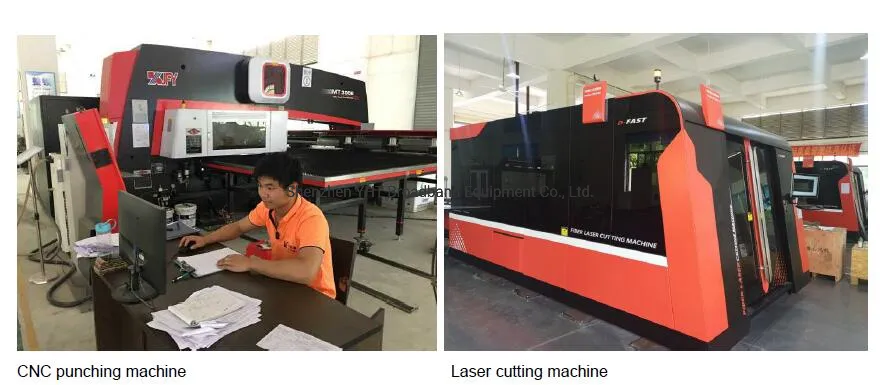

YHT Hardware Workshop
There are CNC punching, laser cutting, bending, automatic welding ... machines work automatically with high efficiency and
precision. YHT can support large production for customized metal ODF, fiber distribution box, optic patch panel, terminal box,
cabinet, splitter box etc.

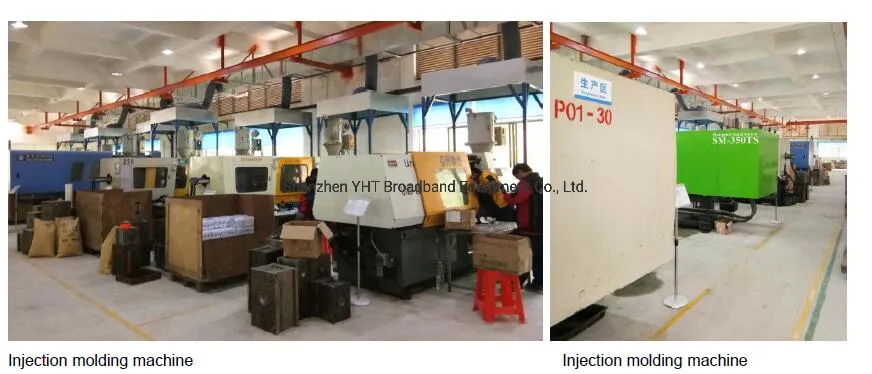

YHT Injection Moulding Workshop
More than 21 injection molding machines support large-scale production of plastic FTTH box, fiber optic splice closure, face
plate, splice tray and so on.

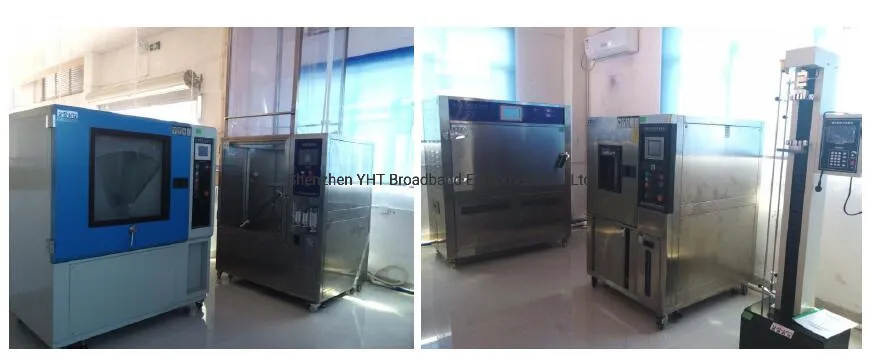

YHT Test Laboratory
