75 Ohms Rg59 Drop Coaxial Cable for CATV/Attennal/Satellite

1. Our services:
1, Good quality guarantee
2, CE. ROHS. ETL. ISO
3, Factory Price
4, OEM is ok
5, Short delivery time

2. Specifications
0.81CCS+3.66FPE+Al. Foil Bonded +64*0.12 CCA/CU BRAIDING+6.0PVC
(Optional: : : : : +2C*18AWG POWER(AUDIO&VIDEO) CABLE RG59 Coaxial cable + 2C CABLE)

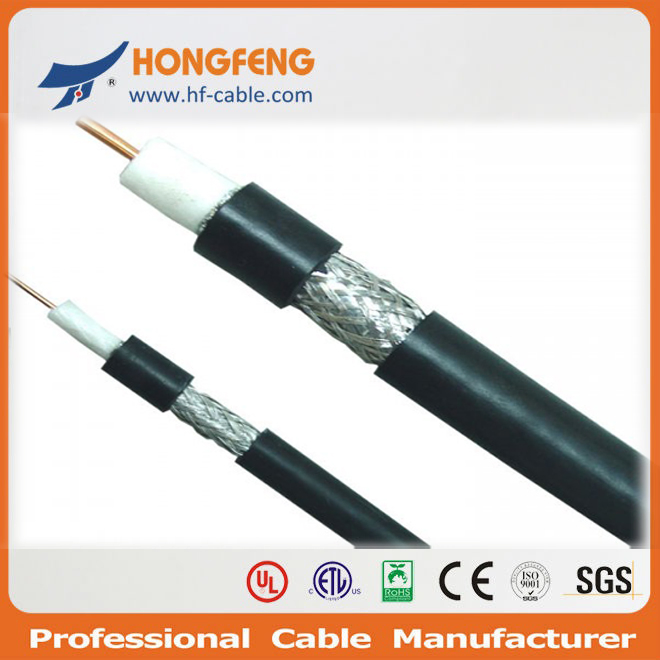

3. Construction:
Inner Conductor: 0.81± 0.01mm Bare Copper
Dielectric: 3.66± 0.05mm Foam PE
Shield: Bonded Aluminum PET Aluminum
Braid Coverage: 0.12mm *16*8 CCA wire
Jacket: 6.10± 0.05 mm PVC
2C wire: (3*0.37mmCCA+4*0.37mmBC)*2+1.8mm PE Jacket

4. Options:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.

5. Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)


6. Attenuation Performance [@68 ° F. (20 ° C)]
Frequency(MHz) Maximum (dB/100ft) Maximum (dB/100m)

5 0.86 2.82
55 1.95 6.39
211 3.59 11.77
250 4.00 13.11
300 4.27 14.00
350 4.64 15.21
400 4.88 16.00
450 5.30 17.38
500 5.60 18.36
550 5.90 19.34
600 6.05 19.84
750 6.96 22.82
865 7.50 24.59
1000 8.09 26.52


7. Main products:

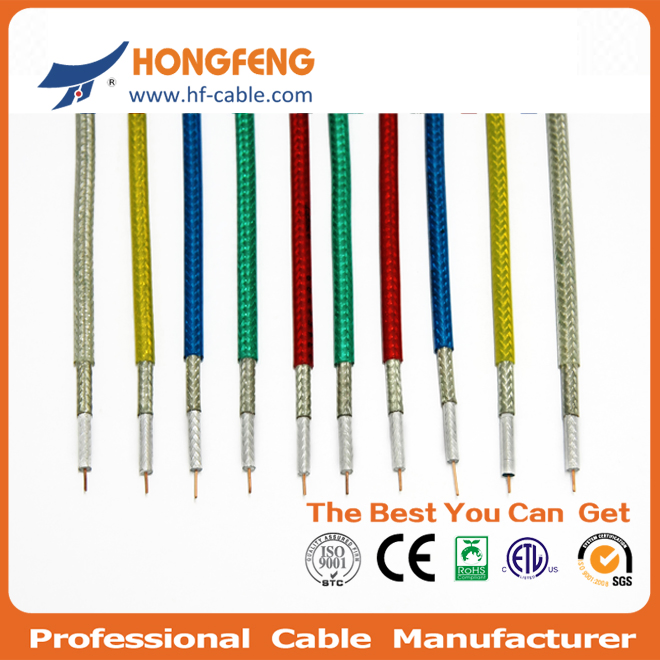

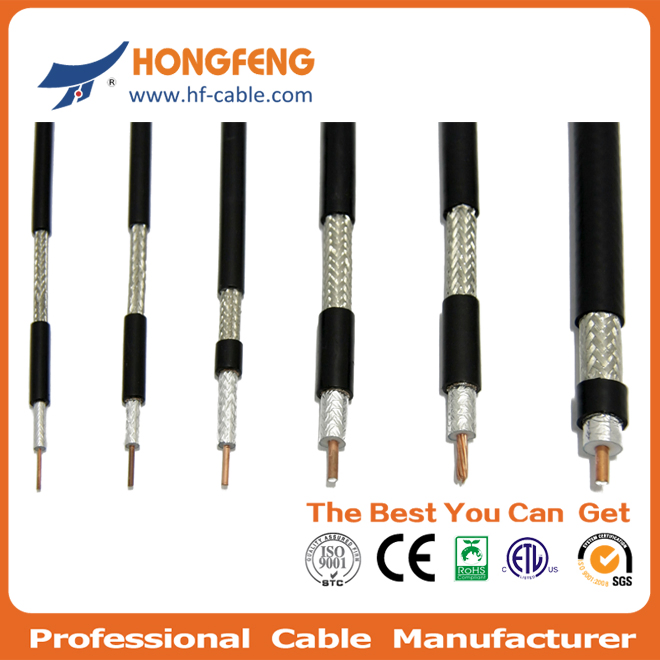

1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.
2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.
3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.
4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.
5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.
6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.
7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.
8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.
9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.
11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.
12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
Note: If the specification is not you need, please tell me and i will offer you price according your requirements.
