Product Description
Description

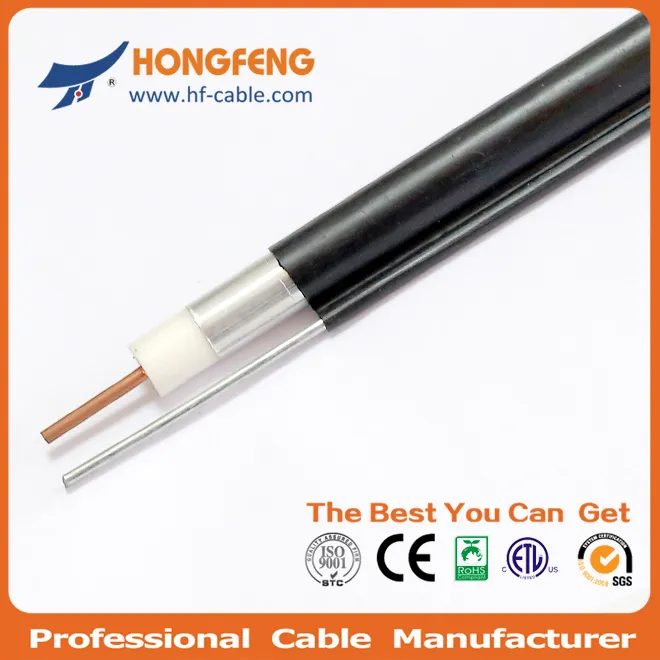

*Solid aluminum tube swaged onto dielectric code
Center Conductor: | 3.48mm Copper Clad Aluminum |
Dielectric: | 14.35mm Micro-cellular Foam PE |
Shield: | 0.76mm Solid Aluminum Tube |
Jacket: | 17.40mm PE Jacket |
Messenger | 2.77mm Steel Wire |
Impedance: | 75.0 +/- 3.0 Ohms |
Capacitance: | 50.0+/-3.0 nF/km |
Velocity of propagation: | 87.0% Nominal |
Frequency (MHz) | Max value (db/100m) | Max value (db/100ft) |
5 | 0.43 | 0.13 |
55 | 1.51 | 0.46 |
83 | 1.87 | 0.57 |
211 | 3.02 | 0.92 |
250 | 3.28 | 1.00 |
300 | 3.54 | 1.08 |
350 | 3.87 | 1.18 |
400 | 4.17 | 1.27 |
450 | 4.43 | 1.35 |
500 | 4.69 | 1.43 |
550 | 4.92 | 1.50 |
600 | 5.18 | 1.58 |
750 | 5.84 | 1.78 |
865 | 6.33 | 1.93 |
1000 | 6.79 | 2.07 |
