Product Description
450-470MHZ Directional Yagi Antenna
| Model | TDJ-450MB-6 |
| Frequency Range(Mhz) | 450-470 |
| Bandwidth | 20Mhz |
| V.S.W.R | ≤1.5 |
| Gain (dBi) | 11dBi |
| E-Plane-3dB Beam width | 50° |
| H-Plane -3dB Beam width | 61º |
| Front to Back Ratio | >15dB |
| Input Impedance | 50Ω |
| Rated power | 100W |
| Elements | 6 units |
| Size (cm) | 72.5x31.5 |
| Lighting protection | Direct Ground |
| Connector type | TNC/SMA/BNC or customized |
| Cable Length | 15m / customized |
| Cable loss | 3dB |
| Ambient temperature | -40ºC - +60ºC |
| Ambient Humidity | 5%-95% |

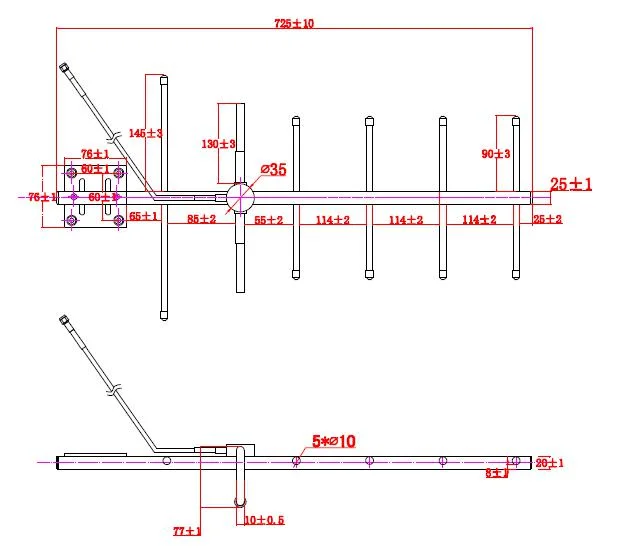

Drawing

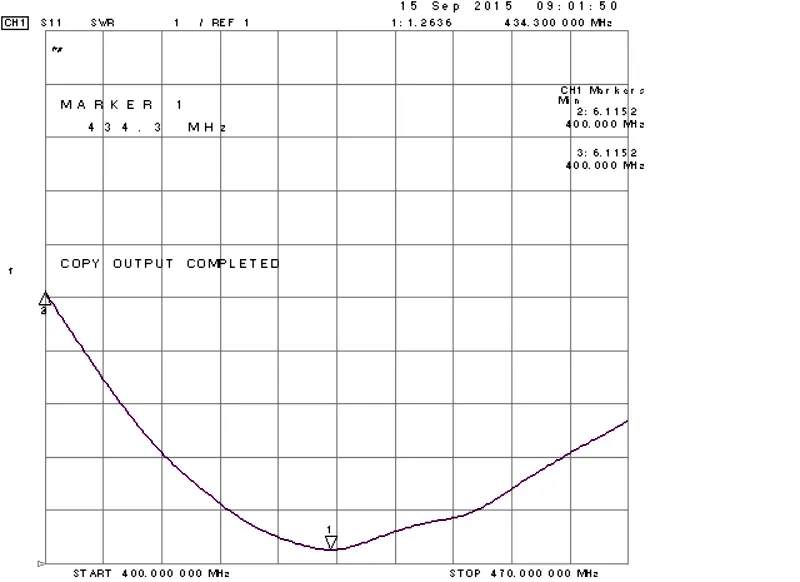

V.S.W.R
