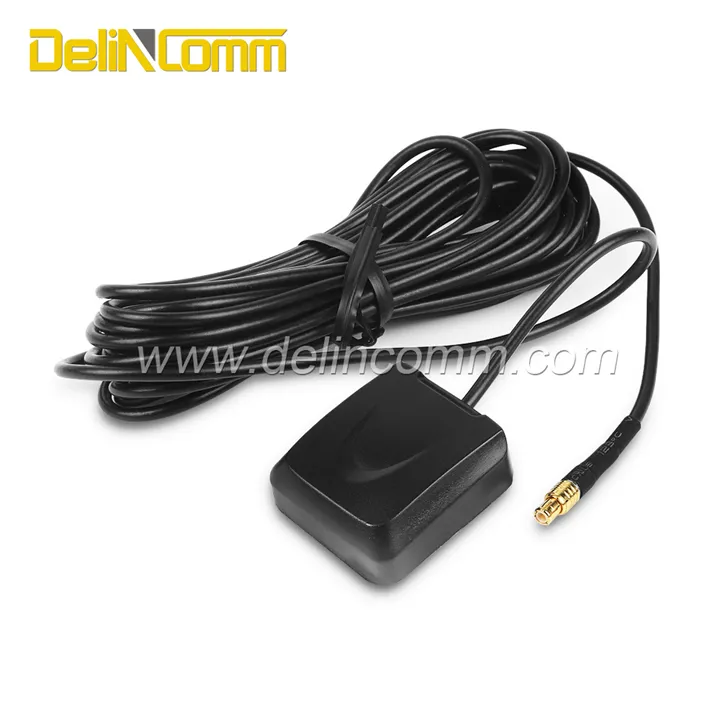

Free Sample High Gain 1575.42 MHz Car Passive GPS Antenna
Free Sample High Gain 1575.42 MHz Car Passive GPS AntennaAntenna CharacteristicsRange of Receiving Frequency(MHZ)GPS:1575.42± 3/GLONASS:1600± 5V.S.W.R(In Center Frequency)≤ 1.5Axial Ratio≤ 3.0LNA Gain28± 2Noise Figure≤ 2.0PolarizationRHCPImpedanc......
Send Inquiry
Product Description
Free Sample High Gain 1575.42 MHz Car Passive GPS Antenna
Antenna Characteristics
Amplifier Characteristics
Environmental Testing
Antenna Characteristics
| Range of Receiving Frequency(MHZ) | GPS:1575.42± 3/GLONASS:1600± 5 |
| V.S.W.R(In Center Frequency) | ≤ 1.5 |
| Axial Ratio | ≤ 3.0 |
| LNA Gain | 28± 2 |
| Noise Figure | ≤ 2.0 |
| Polarization | RHCP |
| Impedance | 50Ω |
| Supply Voltage | 3-5V |
| Current Consumption | 12± 1@3 v DC |
| Size | 55*50*16mm/38*37*14mm/37*34*13mm/36*32*14mm |
| Connector | SMA/BNC/MCX/MMCX/SMB/FAKRA/GT5 |
| Cable | RG-174 |
| Mounting | Magnetic |
| Color | Black |
| Weight | <110g |
Amplifier Characteristics
| No. | Item | Specifications |
| 1 | Range Of Receiving Frequency | 1575.42±3MHz |
| 2 | LAN Gain | 28±1 dB |
| 3 | In Center Frequency | ≤2.0 |
| 4 | Noise Figure | <2.0 |
| 5 | Supply Voltage | 3~5V |
| 6 | Current Consumption | 12±1mA@3VDC |
Environmental Testing
| No. | Normal temperature performance | High temperature test performance deviation | Low temperature test performance deviation |
| 1 | LNA Gain 28±1 dB | ±2 | ±2 |
| 2 | V.S.W.R (in Center Frequency) ≤2.0 | ±0.3 | ±0.3 |
| 3 | Noise Figure <2.0 | ±0.3 | ±0.3 |
