698-4000MHz Indoor Omni Ceiling Antenna for Small Cell Bts
Products Description698-4000MHz Indoor Omni Ceiling Antenna An omni ceiling antenna can improve your indoor Wi-Fi or cellular signal reception. These indoor antennas mount in your ceiling to extend the range of your Wi-Fi access point or cellular signal booster system. Topwave Telecom carries a wide......
Send Inquiry
Product Description
| Products Description |
698-4000MHz Indoor Omni Ceiling Antenna
An omni ceiling antenna can improve your indoor Wi-Fi or cellular signal reception. These indoor antennas mount in your ceiling to extend the range of your Wi-Fi access point or cellular signal booster system. Topwave Telecom carries a wide variety of these omni antennas.
Topwave Model TPW-7040-IOCA-NF, it is a wide band 698-4000MHz indoor omni ceiling antenna with N female connector. The Omni ceiling antenna is designed to be mounted in a suspended ceiling and provides better indoor coverage than a standard whip antenna.Omni ceiling antenna is compatible with GSM900, GSM1800 and 3G UMTS 2100 networks. This indoor ceiling aerial is suitable for almost all of the repeater kits.
An omni ceiling antenna can improve your indoor Wi-Fi or cellular signal reception. These indoor antennas mount in your ceiling to extend the range of your Wi-Fi access point or cellular signal booster system. Topwave Telecom carries a wide variety of these omni antennas.
Topwave Model TPW-7040-IOCA-NF, it is a wide band 698-4000MHz indoor omni ceiling antenna with N female connector. The Omni ceiling antenna is designed to be mounted in a suspended ceiling and provides better indoor coverage than a standard whip antenna.Omni ceiling antenna is compatible with GSM900, GSM1800 and 3G UMTS 2100 networks. This indoor ceiling aerial is suitable for almost all of the repeater kits.
| Electrical & Mechanical Specifications |
| Electrical Specifications | ||||||
| Model No. | TPW-7040-IOCA-NF | |||||
| Frequency Range,MHz | 698-960/1710-4000 | |||||
| 698-864 | 870-960 | 1710-1880 | 1920-2170 | 2200-2700 | 3300-4000 | |
| Bandwidth(MHz) | 20 | |||||
| Gain, dBi | 2.8 | 3.1 | 5.1 | 6.0 | 6.3 | 6.0 |
| Horizontal Beamwidth | 360 | |||||
| Vertical Beamwidth | 40-80 | 65-80 | 45-110 | 40-85 | 35-55 | 30-50 |
| VSWR | ≤2:1 | ≤1.8:1 | ||||
| Polarization | Vertical | |||||
| Input Impedance | 50 Ω | |||||
| Max. Input Power | 100 W | |||||
| 3rd order PIM | ≤-150dBc@2x33dBm | |||||
| Lightning Protection | DC Ground | |||||
| Mechanical Specifications | ||||||
| Connector | N Female | |||||
| Cable Length | 30cm | |||||
| Dimensions | Φ186×86mm | |||||
| Weight | 0.25 kg | |||||
| Rated Wind Velocity | 60m/s | |||||
| Pigtail | 300mm RG58 cable | |||||
| Reflector Material | Aluminum | |||||
| Radome Material | UV-Protected ABS | |||||
| Operating Temperature | -40°C to +65°C | |||||
| Mounting | Fix with Nut | |||||

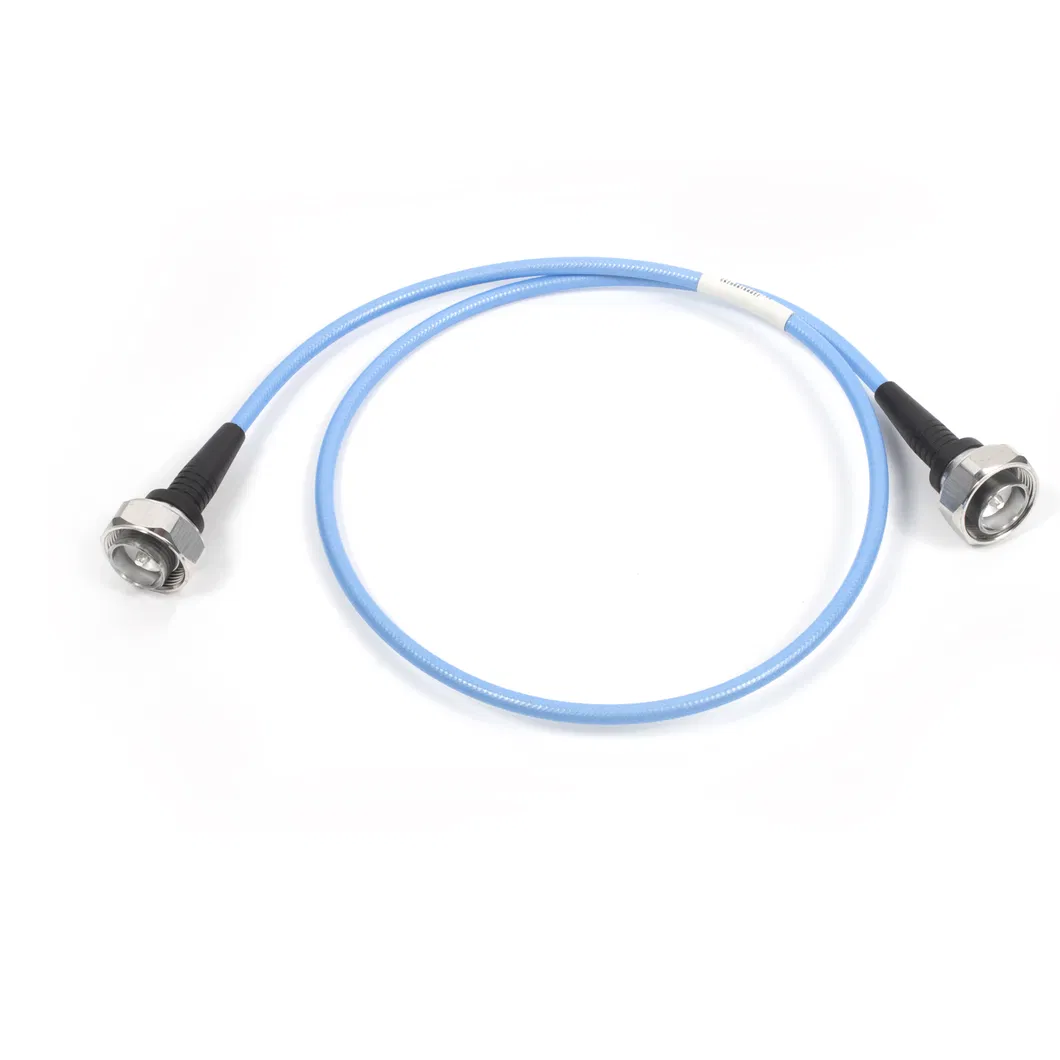

| Related Product |

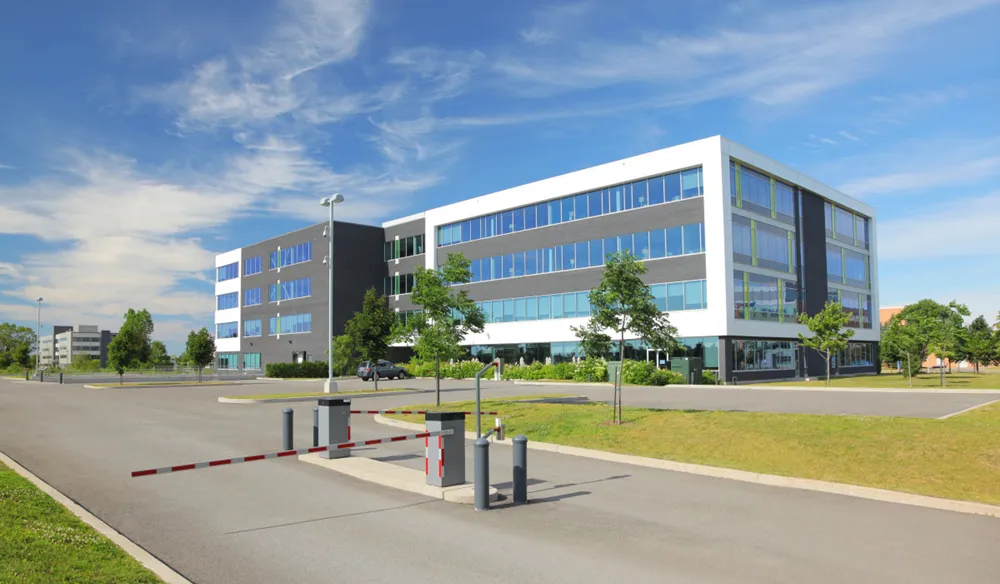

| About Us |
