UHF Antenna 380-520MHz Indoor Directional Panel Antenna for Signal Coverage
Products Description380-520MHz Indoor Directional Panel AntennaPanel antennas are common at Ultra high frequency (UHF) frequencies, where they are often used for cellular/mobile base stations or wireless networking due to their size and directional properties. At VHF frequencies, such an antenna wou......
Send Inquiry
Product Description
| Products Description |

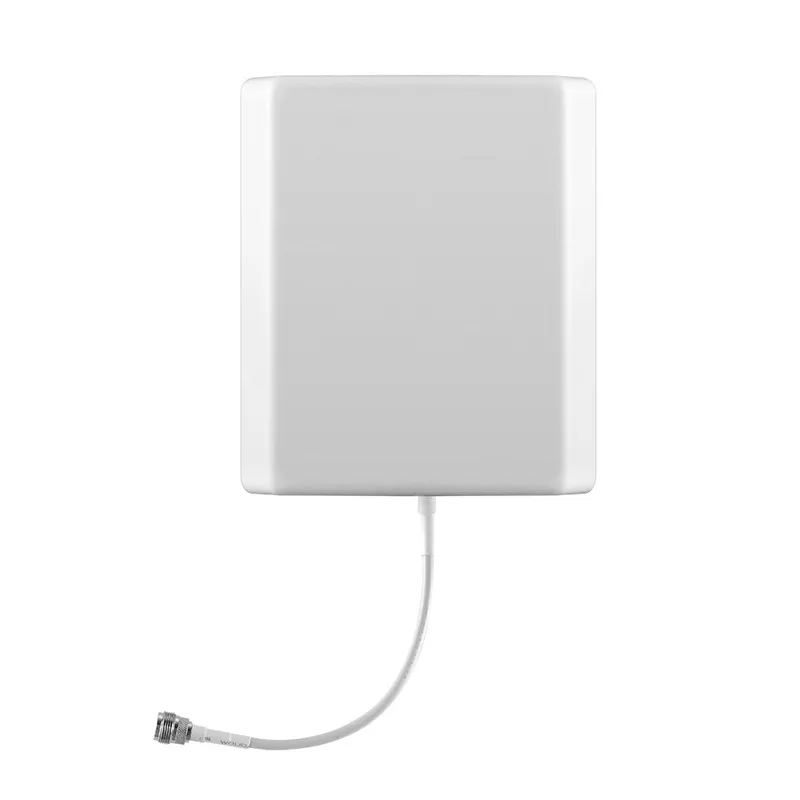

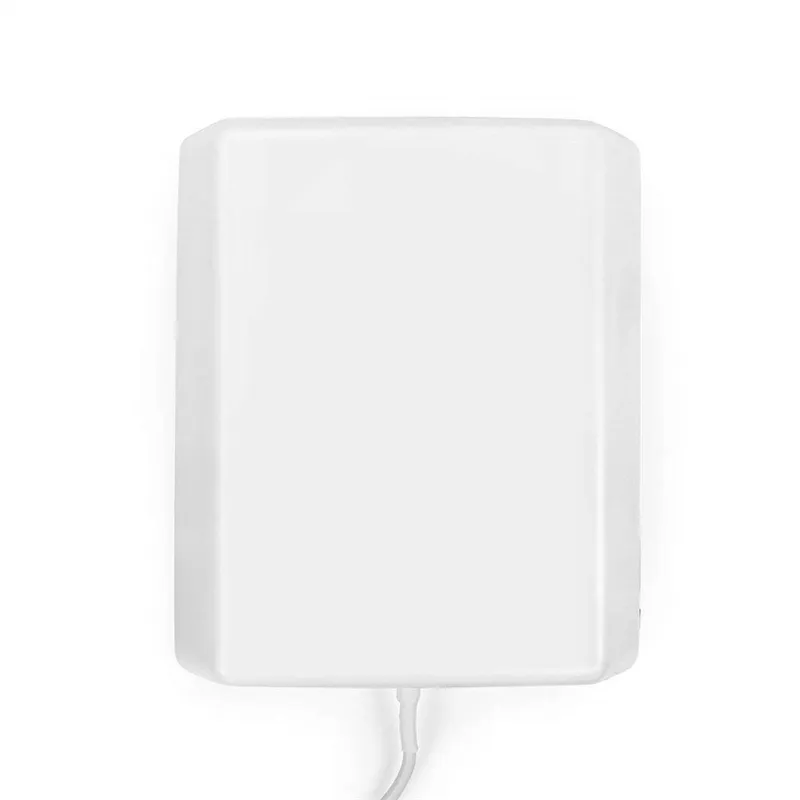

380-520MHz Indoor Directional Panel Antenna
Panel antennas are common at Ultra high frequency (UHF) frequencies, where they are often used for cellular/mobile base stations or wireless networking due to their size and directional properties.
At VHF frequencies, such an antenna would be impractically large for most receiving applications unless implemented as no more than a two-bay design. Some full power radio stations do use multiple panel antenna bays, installed one above the other on the side of a tall antenna tower, to provide a directional transmitter pattern on these frequencies.
Topwave panel antennas are made from weatherproof aluminium, all mounting hardware is stainless steel, the cover is made of weatherproof ABS. All antennas can be mounted for horizontal or vertical polarisation and come including mounting bracket.
| Electrical & Mechanical Specifications |
| Electrical Specifications | |
| Model No. | TPW-4DPA-3852-NF |
| Frequency Range, MHz | 380-520 |
| Gain, dBi | 4.0±1 |
| VSWR | ≤3.0 |
| Polarization | Vertical |
| Horizontal Beamwidth | 150° |
| Vertical Beamwidth | 75° |
| Input Impedance | 50 Ω |
| Max. Input Power | 50 W |
| Lightning Protection | DC Ground |
| Mechanical Specifications | |
| Connector | N Female |
| Dimensions | 315x195x68 mm |
| Weight | 0.5 kg |
| Reflector Material | Aluminum |
| Radome Material | ABS (UV Stabilized) |
| Operating Temperature | -40°C to +65°C |
| Related Product |
N Female Omni Ceiling Mount Antenna Panel RFID Antenna for Cellular Base Station Omni Ceiling Antenna for Indoor Signal Booster
| About Us |
Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.
Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.
| Main Products |
| Application |
| Packing Details |

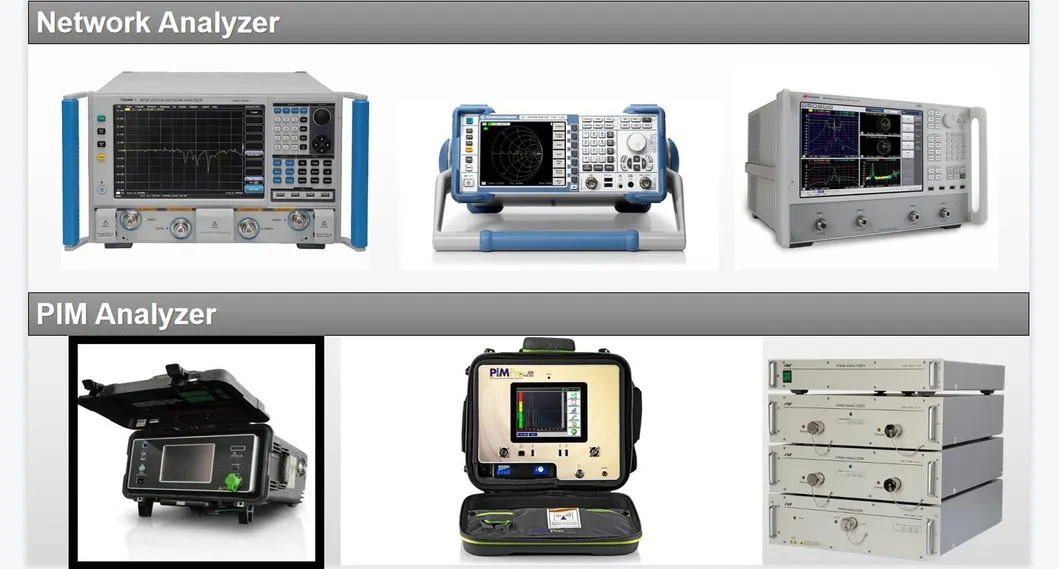

| Testing Equipment |
| FAQ |
Q: Can I get smaples for validation test?
A: Let's talk, some samples are free but shipping charge should be on your account.
Q: What is your MOQ?
A: We don't have MOQ limit.
Q: What is your payment terms?
A: We accept Western Union, T/T, Paypal and so on.
Q: What is your delievry time?
A: Normally around 2 weeks, TBD for massive quantity or customized products.
