Product Description

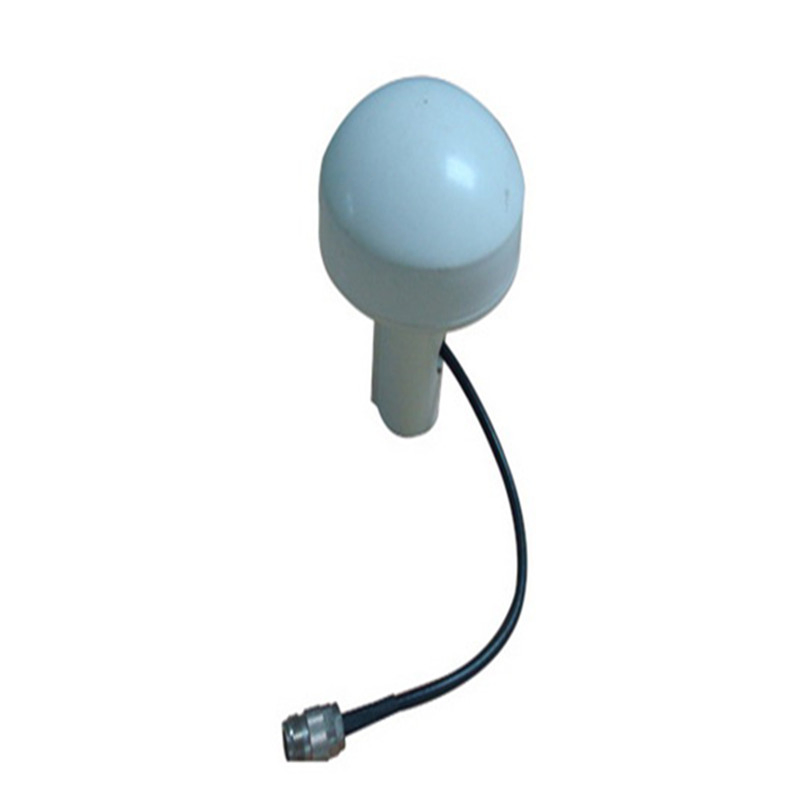

GPS navigation antenna,
Waterproof,
Anti-corrosion,
Lightning protection devices.
The built-in amplifier, can resistance to
electromagnetic Interference and to receive
satellite signals to the low angle.

Features

Miniature size (96mm 96mm 127mm)
Worries about where to install are eliminated, wiring is simplified.
Customized connector and cable are available.
Various optional extras (mounting fixtures, spongers, and clips, etc.) are available to satisfy your needs.

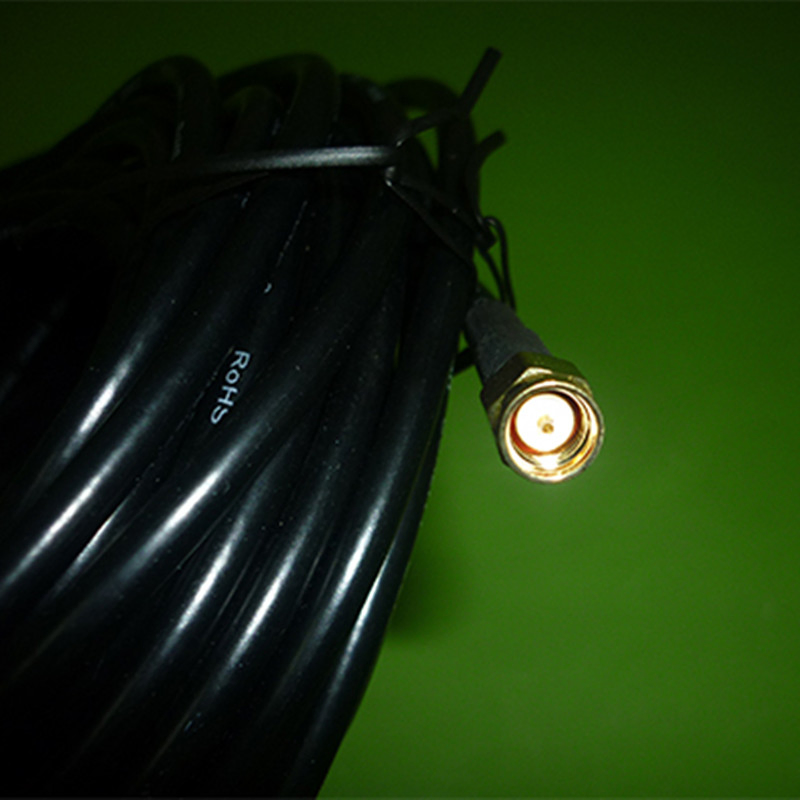

Connector types: SMA, MCX, MMCX, SMB, TNC, BNC…

Antenna	Item	Specifications
	Reception frequency	1575.42MHz
	bandwidth	±10MHz
	Reception polarization	RHCP
	Antenna gain	3dBic
	Output impedance	50Ω
LNA	Reception frequency	1575±10MHz
	Noise factor	<1.0
	Gain	42±2dB typ.
	VSWR	<1.5
	DC current	<7mA
Overall	Max Power	50mW
	Cable	SYV50-3/5/7
	Antenna weight	0.15kg
	Power supply voltage	2.7V to 5.0V
	Shell color	white
	Waterproof	100%
	Working temp	-30ºC~85ºC

FAQ
Q: Can I get one sample?
A: Yes, sample is available.

Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.

Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.

Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.

Q: What's the payment term?
A:T/T, Paypal, western union etc.

Q:May I visit your company?
A: Sure, welcome any time.

Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
