Delin Comm High Gain GPS&Glonass Antenna External Active GNSS Antenna AGG-M5550 Product Picture DelinComm GPS&Glonass receiving antenna is a power source that converts the electromagnetic wave energy of theradio signals from satellites into the electrical components of the receiver that c......
Send Inquiry
Product Description
Delin Comm High Gain GPS&Glonass Antenna External Active GNSS Antenna

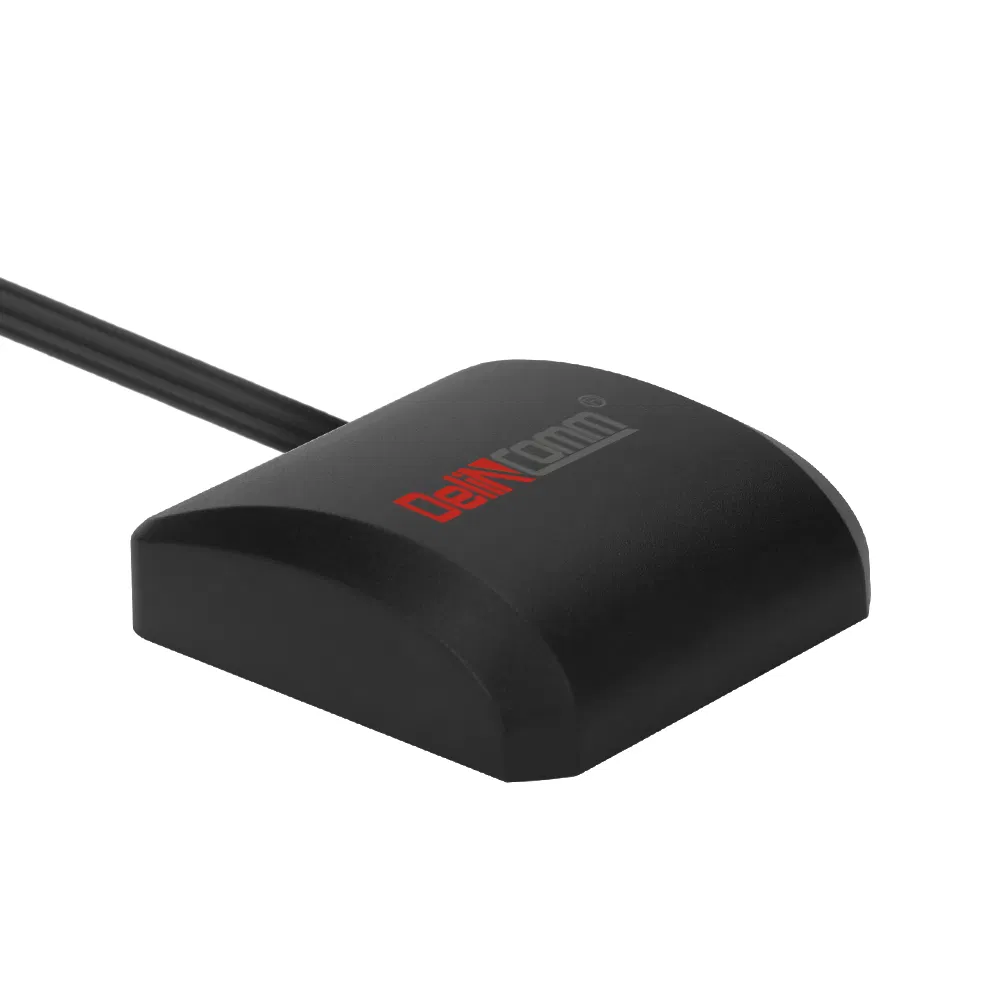

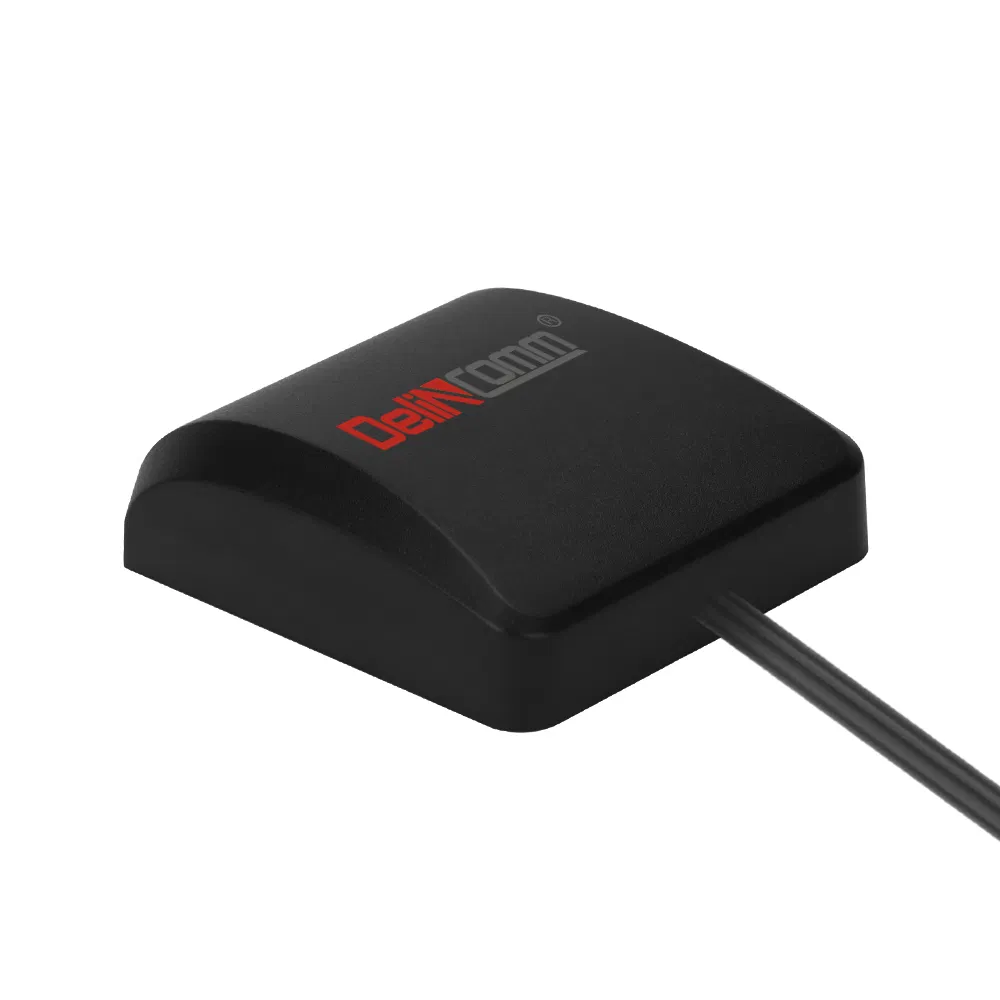

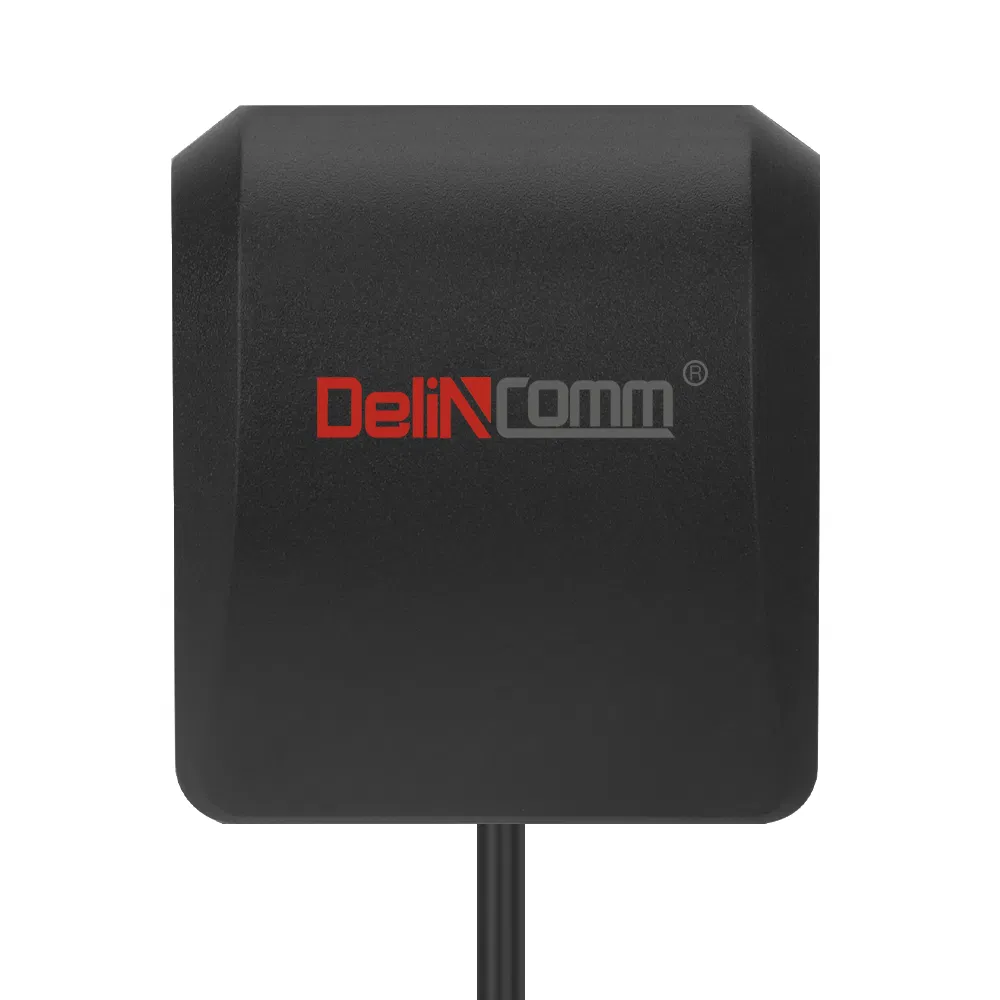

AGG-M5550 Product Picture
DelinComm GPS&Glonass receiving antenna is a power source that converts the electromagnetic wave energy of the
radio signals from satellites into the electrical components of the receiver that can be absorbed for application.
Our GPS&Glonass antenna is composed of ceramic antenna body and active amplifier.Adopts the plastic shell encapsulation,
has the waterproof moisture-proof characteristic, the product the volume is compact, the antenna bottom is equipped with
the magnet or 3M, the installation is easy to use.
Product Description
Product advantages and characteristics
Features:
1.Murata acoustic meter filter, effective filtering noise
2.Infineon low noise LNA, output signal to noise ratio
3.High gain, low standing wave ratio, good reception
4.Imported ceramic body
5.Waterproof IP67 / IP68
Advantage:
1.IATF16949 quality management system standard
2.Certification: FCC CE ROHS2.0
3.Semi-automatic production ensures product consistency
Quality standard
1. Inspection method (if the customer inspection is strict with the company, the OQC shall be based on the customer's
acceptance standard) GB2828 inspection according to standard sampling table, normal inspection, one sampling, II
level plan.
Fatal/serious defect: AC=0 minor defect: AQLAC=1.0
Our company's inspection standard for full inspection, shipping standards for zero defects.
2. The above inspection standards / methods are different from customer standards, customer standards shall prevail.
3. Products shipped abroad must conform to the relevant national standards before shipment.

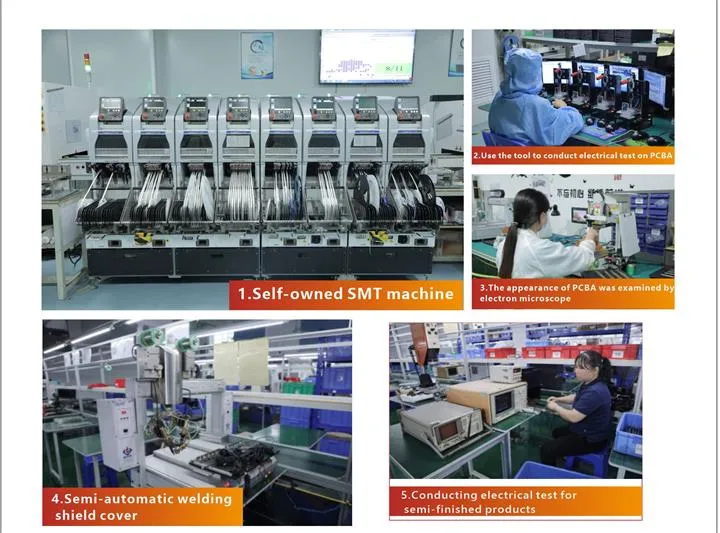

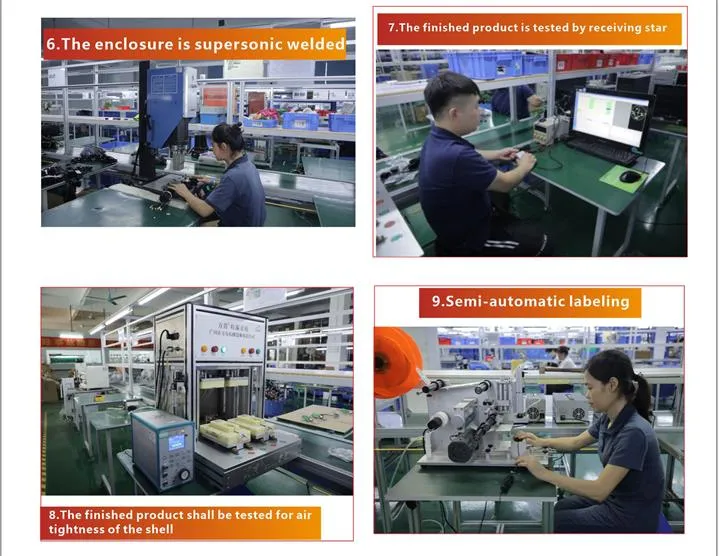

Production Testing Process
Company Capacity
Delin Comm was founded in 1993 Since 28 years, focus on GNSS module; module; receiver; RTK module ;5 G/4G
module; NFC module; Bluetooth module; GNSS antenna; high precision and RTK antenna ;4 G,5G,2.4G communication
antenna A national high-tech enterprise with wireless mobile communications and GNSS products integrated with R & D,
roduction, sales and supporting services.
To better serve global partners, Delin Comm has set up a multi-probe testing laboratory in Hangzhou, with a product
research and development team of up to 30 employees. Has served thousands of partners around the world, and with
its excellent quality and perfect service in the forefront of the industry, established its product and brand reputation.
DelinComm has always been adhering to the high standard quality control system, with advanced manufacturing

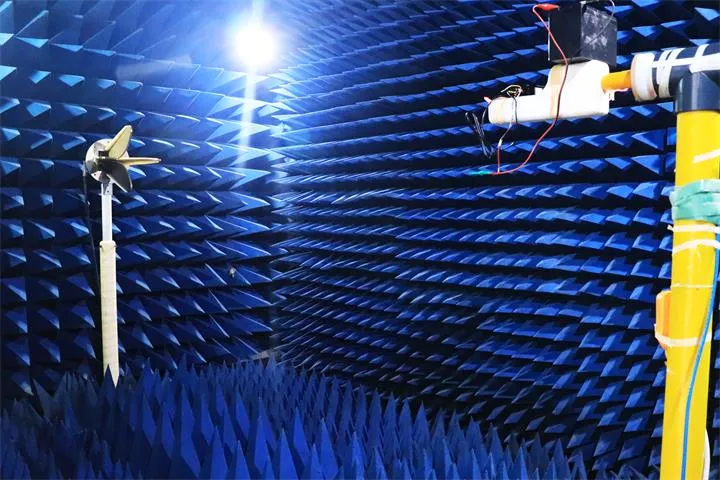

equipment, SMT automatic high-speed placement machine, accurate testing instruments, multi-probe microwave darkroom,
ROHS2.0 testing laboratory, airtight instrument (leak detection system), signal generator, high and low temperature test box,
salt spray tester and so on.
DelinComm has passed a series of IATF16949 quality management system certification, ROHS,SGS,FCC,CE and
other certification, with a number of intellectual property rights; has a number of invention patents, while providing OEM,
ODM services, with excellent quality and efficient service to establish the industry pioneer image.
Common Problems
Sample cost issues
1. We will charge the sample fee and make the sample until you are satisfied
2. Freight is generally borne by the buyer, specific circumstances can be negotiated, specific specifications please contact us
3. Our products are national standard accessories, can be customized according to your needs
Product after-sales service
1. We not only pay attention to pre-sale guidance and product quality, but also pay more attention to after-sales service. If
you find any problems or need guidance after purchasing any of our products, please contact us.
Product Delivery
1. About delivery
1.1.We cooperate with many express delivery companies.In general, we follow the default expression in scope.If you have a
specific delivery, simply point it out or contact customer service.Otherwise, we will use our own default messenger.Please
check the shipping address and contact information before shipping.
2. Order delivery
2.1. Sample delivery time is about 3 days, and mass production cycle is 5-15 days
2.2. Emergency order processing, our company has emergency orders to speed up processing process, will be completed
for you in time.

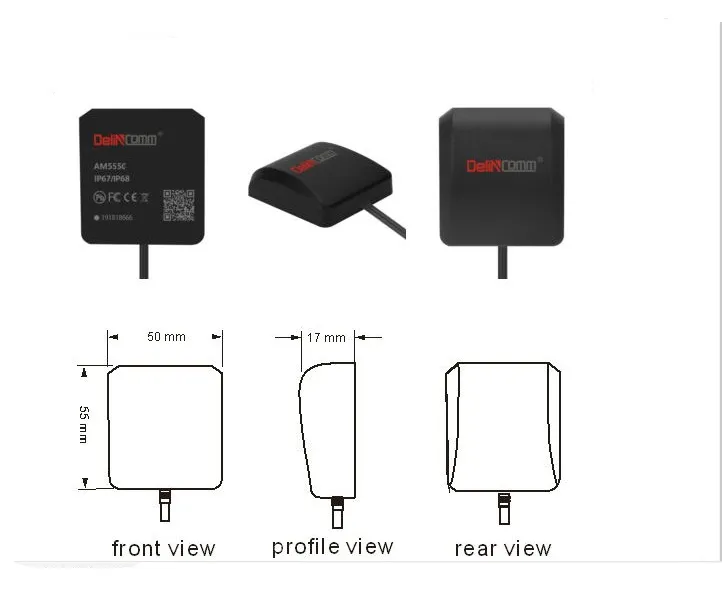

AGG-M5550 Product Picture
DelinComm GPS&Glonass receiving antenna is a power source that converts the electromagnetic wave energy of the
radio signals from satellites into the electrical components of the receiver that can be absorbed for application.
Our GPS&Glonass antenna is composed of ceramic antenna body and active amplifier.Adopts the plastic shell encapsulation,
has the waterproof moisture-proof characteristic, the product the volume is compact, the antenna bottom is equipped with
the magnet or 3M, the installation is easy to use.
Product Description
| NO. | Parameter | Specification |
| 1 | Range of Receiving Frequency (MHz) | 1575.42&1602±3MHz |
| 2 | Center Frequency (MHz) (with 30mmSpuareGND plane) | 1575.42&1602±3MHz |
| 3 | Band Width (MHz)(Return Loss≤-10dB) | ≥10 |
| 4 | V.S.W.R (in Center Frequency) | ≤1.5 |
| 5 | Gain (Zenith) (dBi typ) (with 70mmSquare GND plane) | 4.5 |
| 6 | Axial Ratio (with 70mm Square GND plan) | 3.0dB |
| 7 | Polarization | RHCP |
| 8 | Impedance (Ω) | 50 |
| 9 | Frequency Temperature Coefficient (ppm/ºC) | 0±10 |
| 10 | LAN Gain | 28±1 dB |
| 11 | In Center Frequency | ≤2.0 |
| 12 | Noise Figure | <2.0 |
| 13 | Supply Voltage | 3~5V |
| 14 | Current Consumption | 12±1mA@3VDC |
| 15 | Size | 55*50*17mm |
| 16 | Mounting | Magnetic |
| 17 | Weight | 55g |
| 18 | Connector | SMA or other |
| 19 | Cable | 3M |
| 20 | Operating Temp. | -40ºC~+85ºC |
| 21 | Storage Temp. | -45ºC~+85ºC |
| 22 | Operating Humidity | 0%~95% |
| 23 | Storage Humidity | 0%~95% |
| 24 | Optional cable length | 2M,5M or customized |
| 25 | Fixed method | 3M or magnet |
| 26 | Environmentally | ROHS |
Product advantages and characteristics
Features:
1.Murata acoustic meter filter, effective filtering noise
2.Infineon low noise LNA, output signal to noise ratio
3.High gain, low standing wave ratio, good reception
4.Imported ceramic body
5.Waterproof IP67 / IP68
Advantage:
1.IATF16949 quality management system standard
2.Certification: FCC CE ROHS2.0
3.Semi-automatic production ensures product consistency
Quality standard
1. Inspection method (if the customer inspection is strict with the company, the OQC shall be based on the customer's
acceptance standard) GB2828 inspection according to standard sampling table, normal inspection, one sampling, II
level plan.
Fatal/serious defect: AC=0 minor defect: AQLAC=1.0
Our company's inspection standard for full inspection, shipping standards for zero defects.
2. The above inspection standards / methods are different from customer standards, customer standards shall prevail.
3. Products shipped abroad must conform to the relevant national standards before shipment.
Production Testing Process
Company Capacity
Delin Comm was founded in 1993 Since 28 years, focus on GNSS module; module; receiver; RTK module ;5 G/4G
module; NFC module; Bluetooth module; GNSS antenna; high precision and RTK antenna ;4 G,5G,2.4G communication
antenna A national high-tech enterprise with wireless mobile communications and GNSS products integrated with R & D,
roduction, sales and supporting services.
To better serve global partners, Delin Comm has set up a multi-probe testing laboratory in Hangzhou, with a product
research and development team of up to 30 employees. Has served thousands of partners around the world, and with
its excellent quality and perfect service in the forefront of the industry, established its product and brand reputation.
DelinComm has always been adhering to the high standard quality control system, with advanced manufacturing
equipment, SMT automatic high-speed placement machine, accurate testing instruments, multi-probe microwave darkroom,
ROHS2.0 testing laboratory, airtight instrument (leak detection system), signal generator, high and low temperature test box,
salt spray tester and so on.
DelinComm has passed a series of IATF16949 quality management system certification, ROHS,SGS,FCC,CE and
other certification, with a number of intellectual property rights; has a number of invention patents, while providing OEM,
ODM services, with excellent quality and efficient service to establish the industry pioneer image.
Common Problems
Sample cost issues
1. We will charge the sample fee and make the sample until you are satisfied
2. Freight is generally borne by the buyer, specific circumstances can be negotiated, specific specifications please contact us
3. Our products are national standard accessories, can be customized according to your needs
Product after-sales service
1. We not only pay attention to pre-sale guidance and product quality, but also pay more attention to after-sales service. If
you find any problems or need guidance after purchasing any of our products, please contact us.
Product Delivery
1. About delivery
1.1.We cooperate with many express delivery companies.In general, we follow the default expression in scope.If you have a
specific delivery, simply point it out or contact customer service.Otherwise, we will use our own default messenger.Please
check the shipping address and contact information before shipping.
2. Order delivery
2.1. Sample delivery time is about 3 days, and mass production cycle is 5-15 days
2.2. Emergency order processing, our company has emergency orders to speed up processing process, will be completed
for you in time.
