Factory Price Radio Antenna 433MHz Rod Antenna
Antenna technical parameters:Design SpecificationsTypicalworking Frequency433±5MHzGain≤0dBiAntenna efficiency25%VSWR≤2.0PloriaztionL PolRadiation patternOmniOveral dimensionsΦ5x90mm(5 sections total length 315mm)Weight6.0gColor&materialSilver / copperOperatin Tem......
Send Inquiry
Product Description
Antenna technical parameters:
V.S.W.R
Return Loss
| Design Specifications | Typical |
| working Frequency | 433±5MHz |
| Gain | ≤0dBi |
| Antenna efficiency | 25% |
| VSWR | ≤2.0 |
| Ploriaztion | L Pol |
| Radiation pattern | Omni |
| Overal dimensions | Φ5x90mm(5 sections total length 315mm) |
| Weight | 6.0g |
| Color&material | Silver / copper |
| Operatin Temp | -40ºC~85ºC |
| Storing Temp | -40ºC~85ºC |

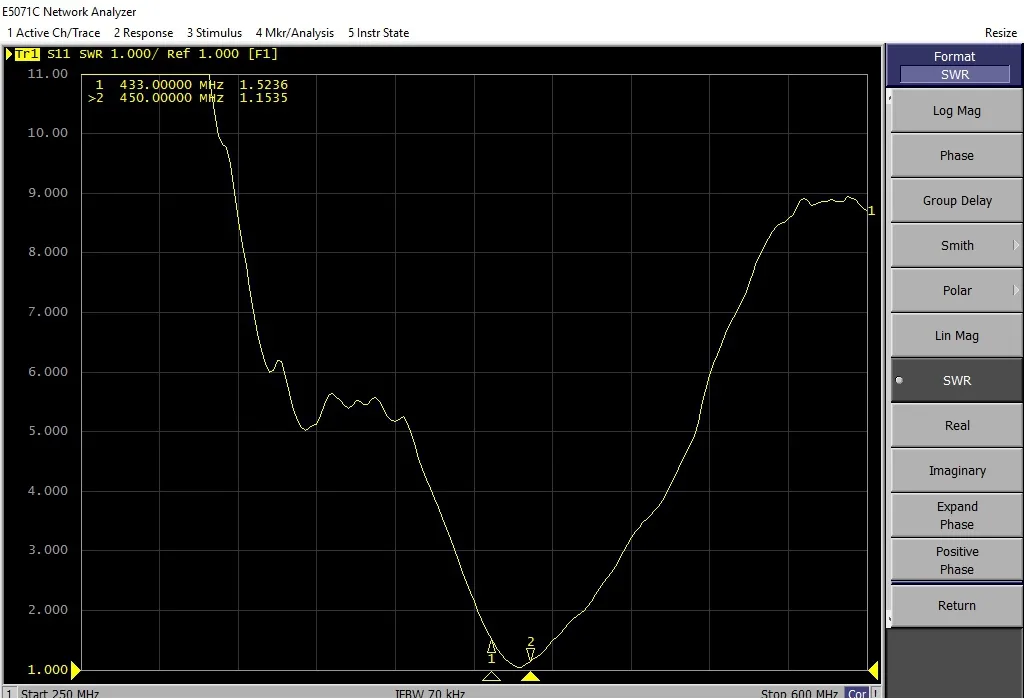

V.S.W.R
Return Loss
