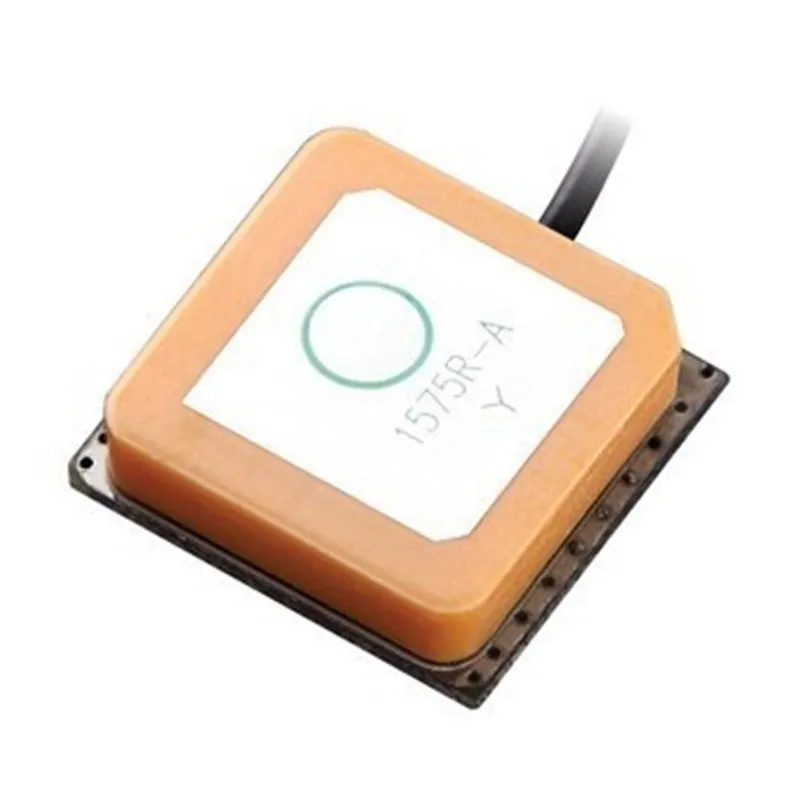

GPS/ Glonass Internal Ceramic Antenna with Ipex or Ufl Connector
GPSGlonass Internal AntennaGL-DY048Electrical IndexFrequency-MHz1575.42 ±3/1602Gain-dBi1.0(Zenith)VSWR≤1.5LNA Gain-dBi28±2Nominal Impedance-Ω50PolarizationRHCPAxial Ratio3dB(max)Noise Figure<1.5Filter Insertion Loss<3dBSupply Voltage2.2~5V DCCurrent Consu......
Send Inquiry
Product Description
| GPSGlonass Internal Antenna | |
| GL-DY048 | |
| Electrical Index | |
| Frequency-MHz | 1575.42 ±3/1602 |
| Gain-dBi | 1.0(Zenith) |
| VSWR | ≤1.5 |
| LNA Gain-dBi | 28±2 |
| Nominal Impedance-Ω | 50 |
| Polarization | RHCP |
| Axial Ratio | 3dB(max) |
| Noise Figure | <1.5 |
| Filter Insertion Loss | <3dB |
| Supply Voltage | 2.2~5V DC |
| Current Consumption | 5~15mA |
| Max. Power-W | 50 |
| Connector | IPEX or UFL |
| Mechanical Index | |
| Cable Length | RF1.13,100mm |

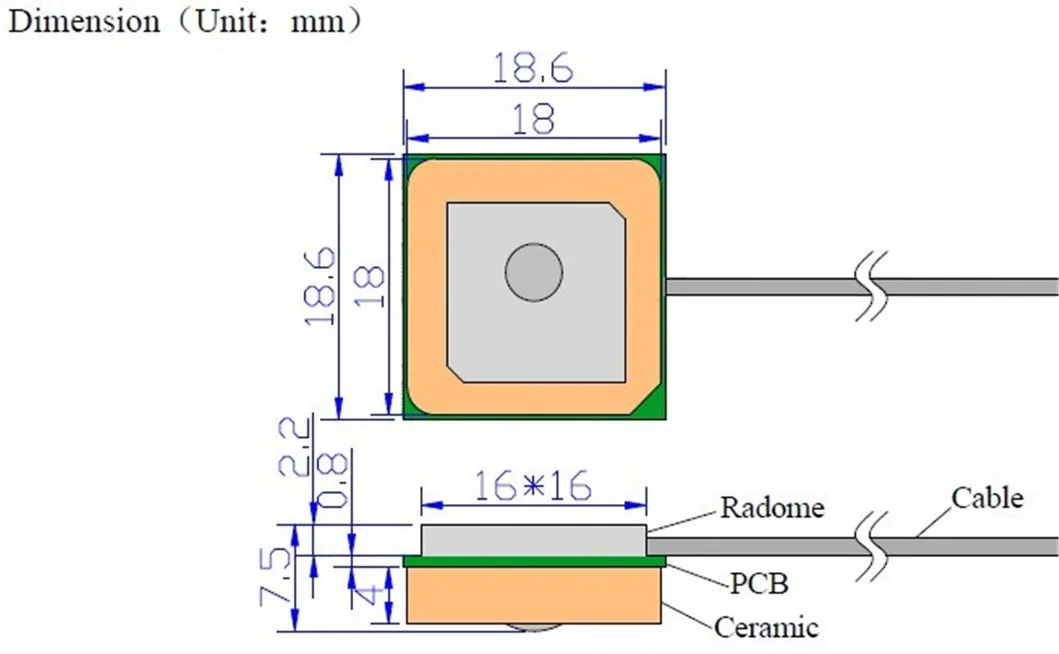

| Antenna Dimension-mm | 18.6×18.6×7.3 |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
| Ingress Protection | IP67(exclude cable outlet) |
| Temperature-ºC | -40~+85 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
