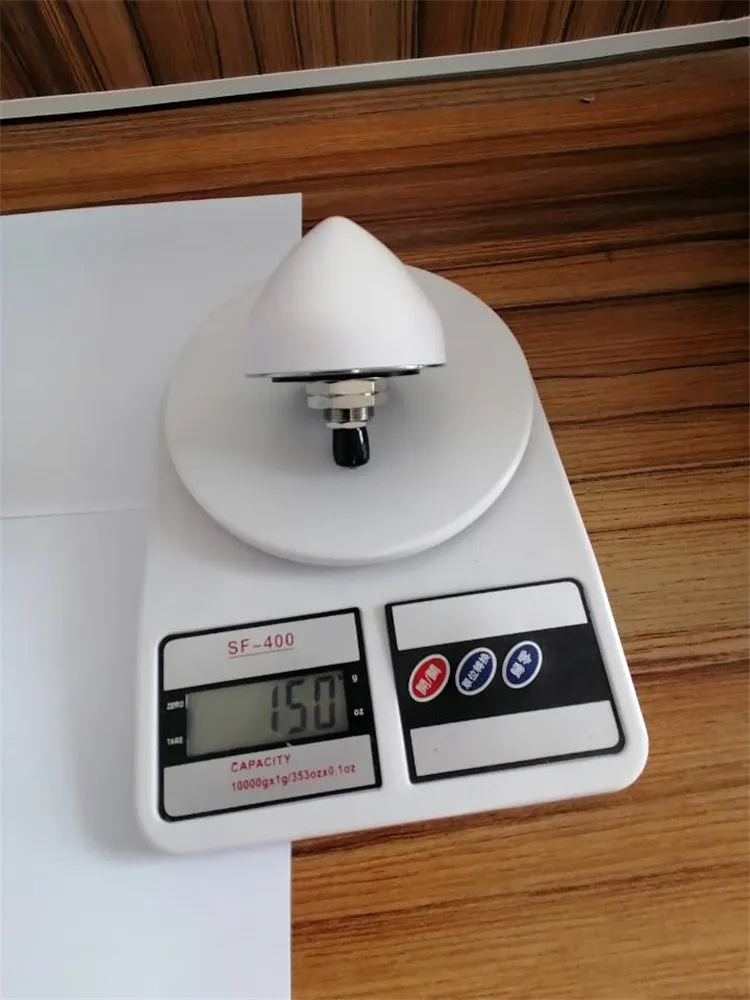

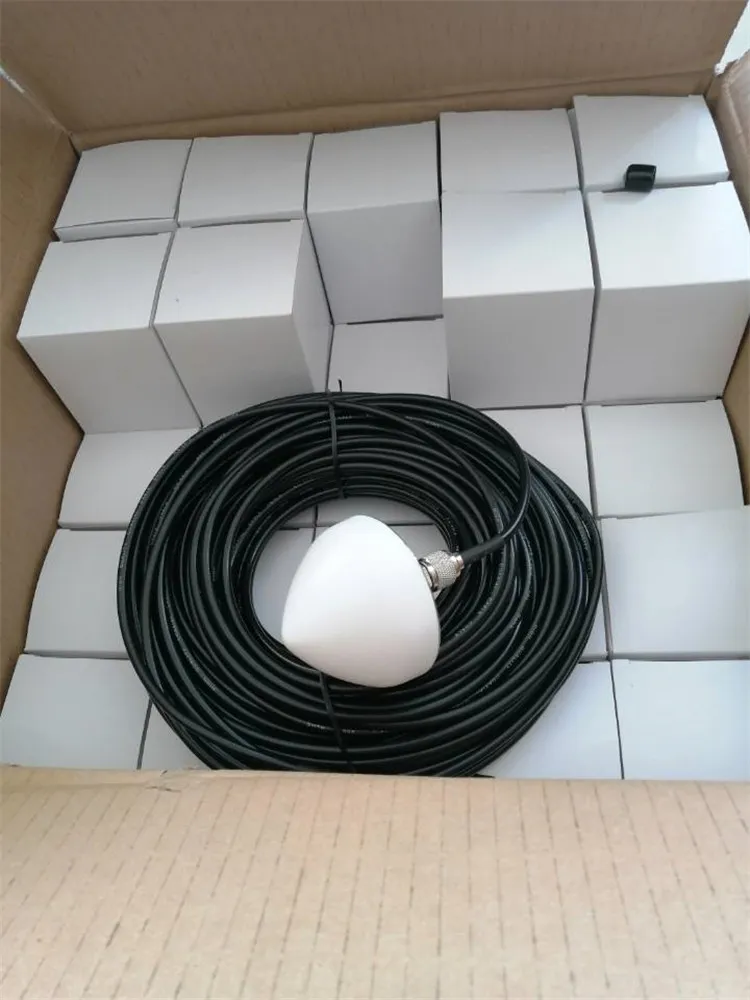

GPS/ Glonass Outdoor Antenna with High Gain

Product Description

Applications

Automobile Navigation,
Logistics Positioning and etc.

Features

High stability,
Linearity,Consistency,
High gain,
outside-band interference suppression,
Low Noise Figure

Item		Specifications
Antenna	Center Frequency	1575.42±3MHz/1602-1610
	Band Width	CF±5MHz
	Polarization	RHCP
	Gain	5dBic@100mm Ground Plane(Zenith)
	V.S.W.R	<1.5
	Impedance	50Ω
	Axial Ratio	4dB@90°,6dB@20°
	Dimension	25256mm
LNA	Gain	40dB typ.
	Noise Figure	<2.5dB
	Ex-band Attenuation	50dB@CF±50MHz
	Supply Voltage	2.7~10V DC
	Current Consumption	<25mA
	V.S.W.R	<1.5
Mechanical	Connector	TNC
	Radome Material	ABS
	Mounting Method	Screw
Environmental	Operating Temperature	-40ºC~+85ºC
	Relative Humidity	Up to 95%
	Ingress Protection	IP67
	Vibration	3 axis,10 to 200Hz,sweep 15min,3G
	Shock	Vertical axis:50G,other axes:30G
	Environmentally Friendly	ROHS Compliant
	ESD Protection	15KV air discharge

FAQ
Q: Can I get one sample?
A: Yes, sample is available.

Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.

Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.

Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.

Q: What's the payment term?
A:T/T, Paypal, western union etc.

Q:May I visit your company?
A: Sure, welcome any time.

Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
