Product Description

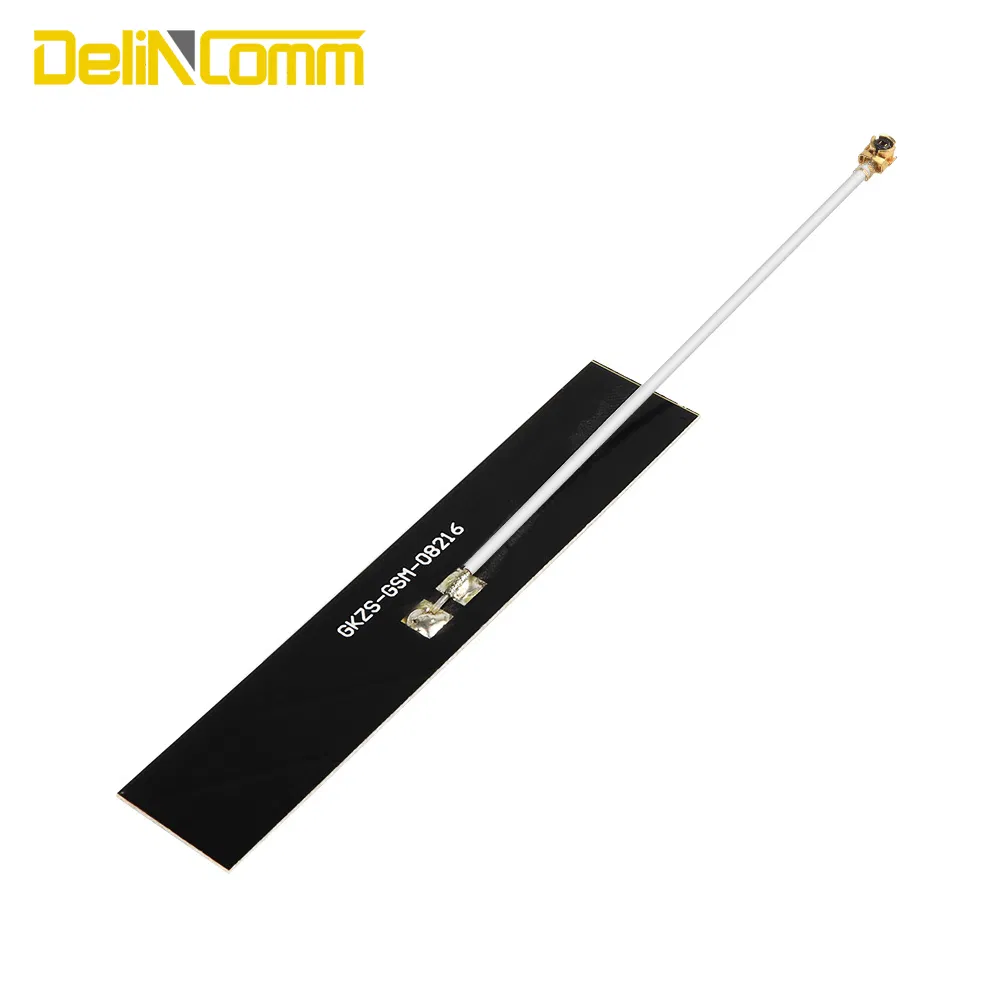

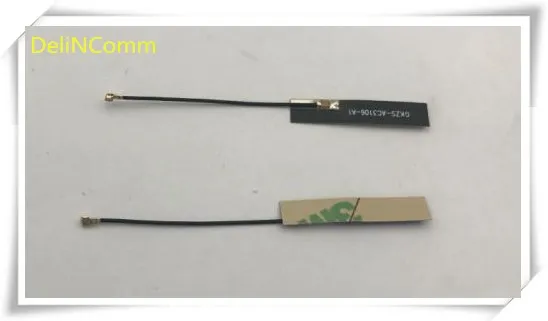

GSM Internal Antenna FPC GSM Antenna with IPEX head
Antenna Technical Parameters
Antenna Technical Parameters
| No. | Design Specifications | Typical |
| 1 | Antenna Form | FPC Internal Antenna |
| 2 | Working Frequency | 824-960MHz/1710-1990MHz |
| 3 | Gain | ≤2.5dBi |
| 4 | Antenna Efficiency | 45% |
| 5 | V.S.W.R. | ≤3.0 |
| 6 | Ploriaztion | Linear Polarization |
| 7 | Radiation Pattern | OMIN |
| 8 | Impedance | 50Ω |
| 9 | Power Handling | 33dbm |
| 10 | Interface | IPEX , RF0.81 cable(black),cable length 50mm |
| 11 | Overal Dimensions | 31x6mm |
| 12 | Weight | 0.6g |
| 13 | Operating Temp. | -40ºC~85ºC |
| 14 | Storing Temp. | 15ºC~30ºC |
