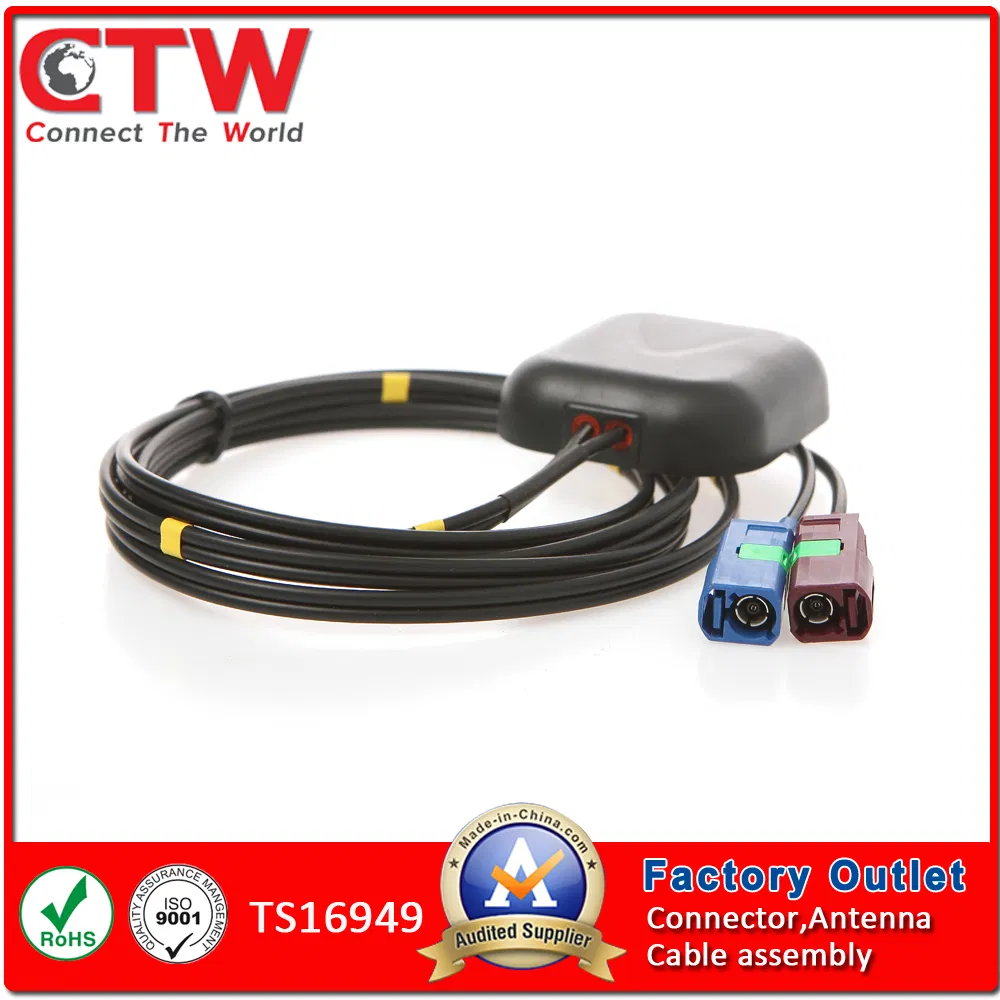

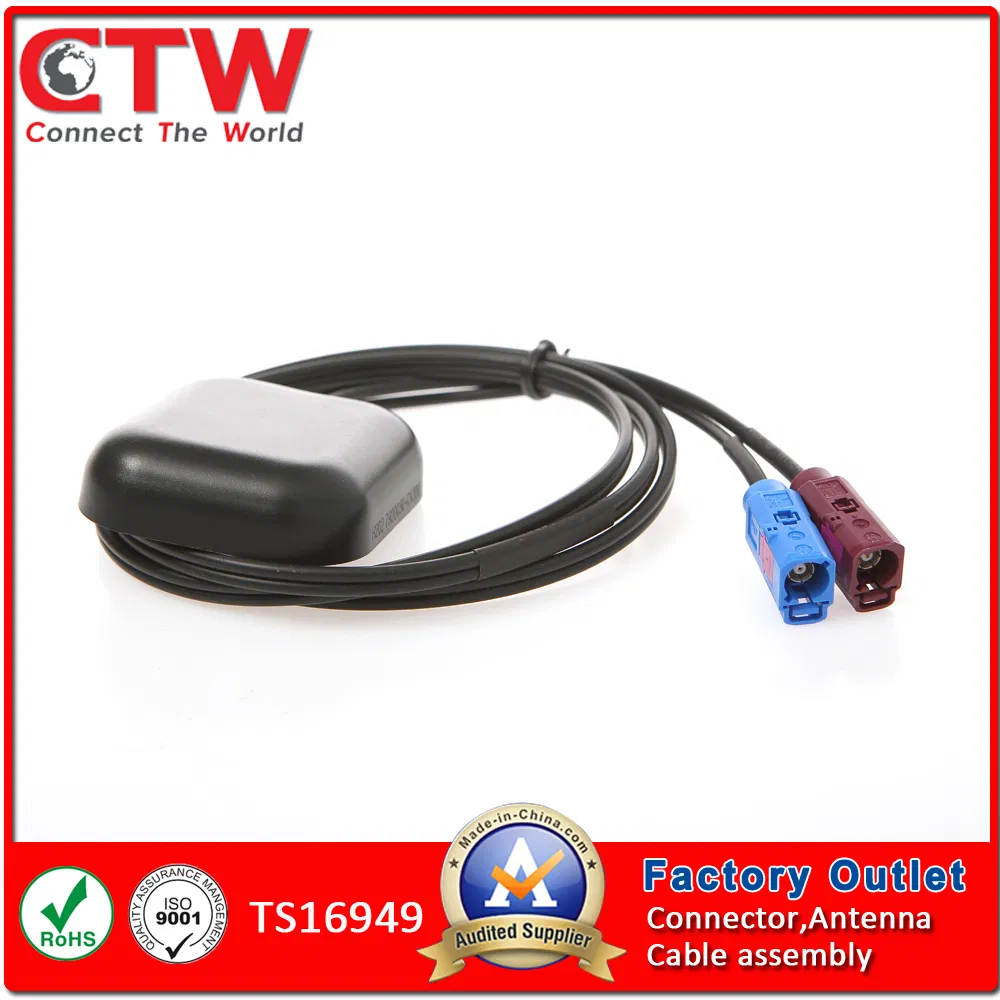

Product Description

Product Specification

Item			Specification
GPS Antenna	Ceramic microstrip antenna	Center frequency	1575.42MHz
		Bandwidth	CF±5MHz
		Polarization	RHCP
		Gain	3.0dBic(Zenith)
		VSWR	<=1.5
		Axial Ratio	3dB(max)
		Input Impedance	50Ω
	LNA	Gain	28±2dB
		NF	<=1.5dB
		Output VSWR	<=2.0
		External band attenuation	30dB@CF+50MHz/20dB@CF+50MHZ
		Supply voltage	3.0V±0.3V
		Current	<=10mA
Cell Antenna		Frequency range	824-960MHz/1710-2690MHz
		Output VSWR	<=2.5
		Polarization	Linear
		Peak Gain	1.0dBi
		Impedance	50Ω
Mechanical		Coaxial line	RG174/Length 0.5m
		RF Connector	TNC
		Mounting method	Adhesive
		Radome material	PC/ABS
		Waterproof	IP67
		Woring temperature	-40ºC~+85ºC

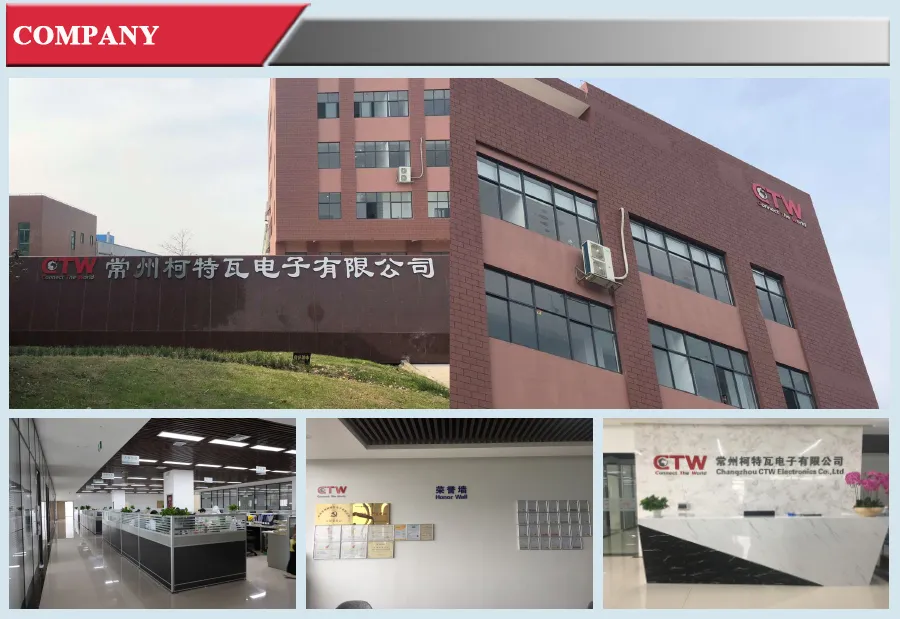

CTW is founded in the end of 2013. We a aglobal professional provider for connectors, antennas and wire harness.

We are dedicated to providing innovative solutions & high quality products for industrial, telecommunications & networking, military, medical and automotive markets.

Global professional provider for antennas ,cable assembly, precision parts & assembly, industrial connectors.
Dedicated to provide innovative solutions & high quality products for industrial, telecommunication, military, medical and automotive markets.

Professional & experienced R&D/Engineering team who are dedicated on research and development.

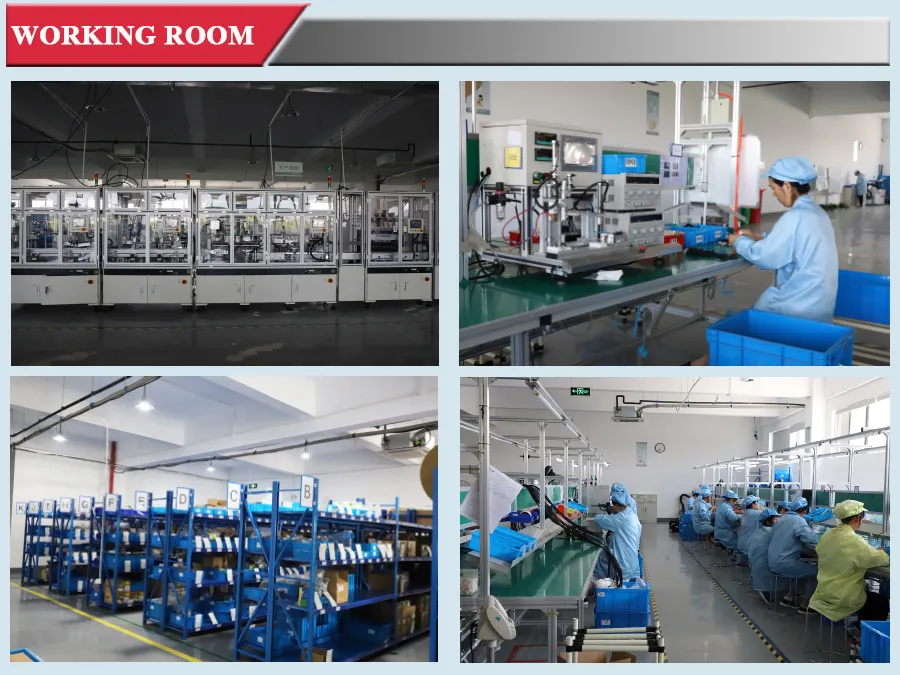

Rigorous and controlled manufacturing process and excellent quality system.

Features and Benefits

Strong R&D team which is dedicated to research,design,analyze and test innovative antenna systems
Professional and efficient mechanical and RF simulation toolis to make sure the perfect antenna performances
One stop solution to design and manufacture all kinds of antennas for industrial and automotive applications
Provided quad band,muti-function module,AM/FM short whip,embedded BT antenna,stealth GSM and GPS antenna,and the TPM antenna,RFID antenna
Customeized and standard antennas design and manufacture
Strict quality control and end to end process

Applications

Industrial RFID antenna
Asset tracking external /internal antenna
Automotive muti-function antenna
Wireless alam,security and monitoring systems
Vehicle tracking systems

R&D Strategy & Capability

1) More than 28 R& D Employees.

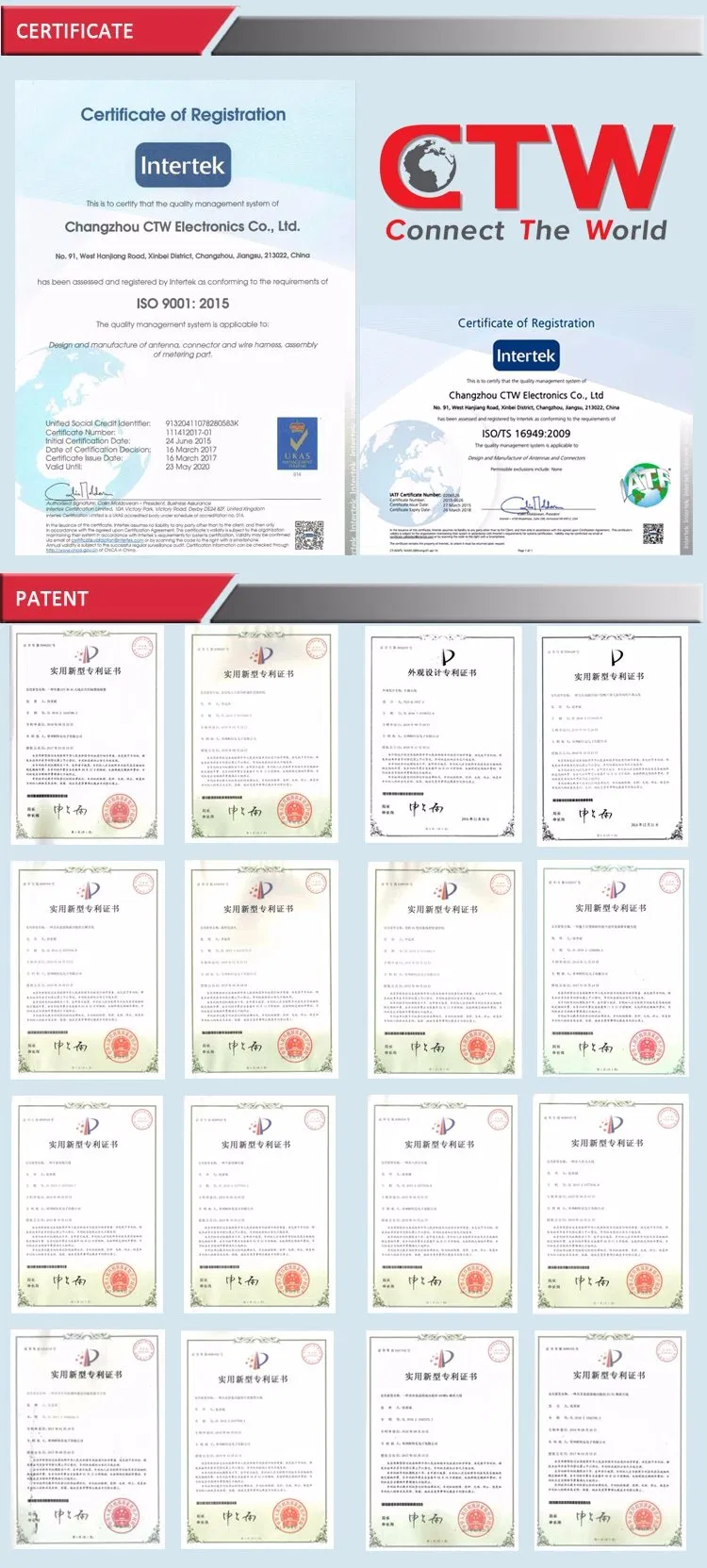

2) around have 15 new palents every year .
3) Re-investment in R & D.
4) competitive R&D system.

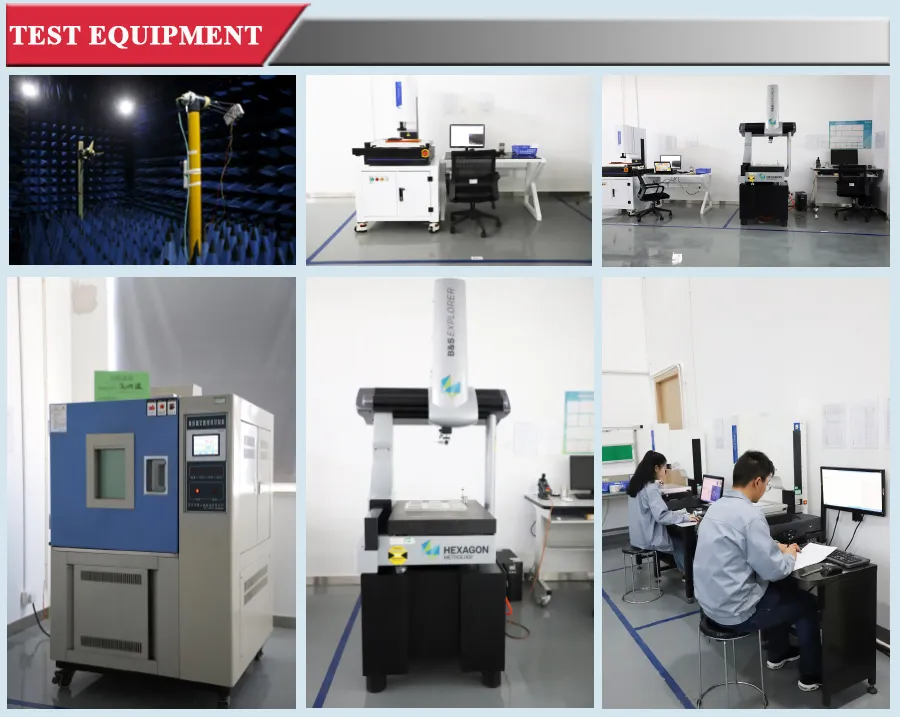

5) complated laboratory lab
6) high level design capability .

FAQ
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.

Q:May I visit your factory?
A: Sure, welcome any time.

Q: What's your company MOQ?
A: our company don't have MOQ. We also accept small quantity.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: What's your delivery time?
A:If our company have stock ,will send to you within one day once receive your deposit.
If use customer brands, we will take some days to prepare materials and mass production.

Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair.
If do not have engineers, please send back the items, we can repair the items for you or we will re-produce for you.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, if the samples cost is very higher , we will ask a sample fee.At the same time. the Sample fee will return back in future order. If the
samples cost is lower, we can send it to you free, but shipping cost will be took .
