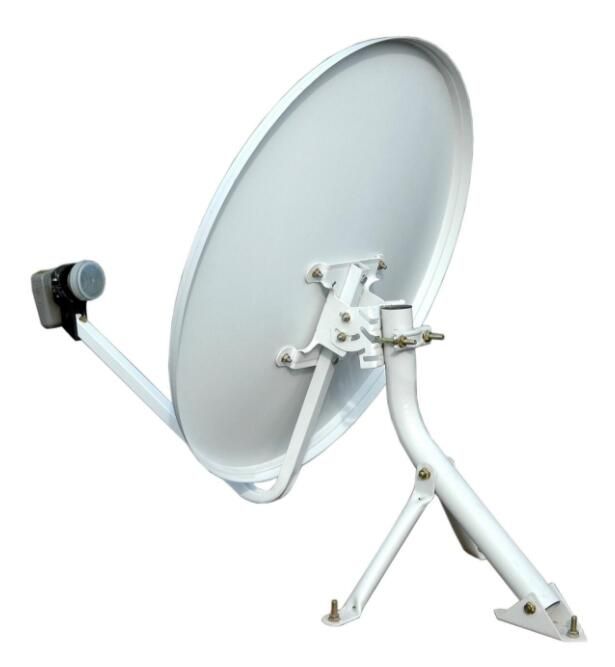

Ku 75cm Offset Antenna Best Satellite TV Antenna Dish Flat
Main Features Optimized structure design, easy for field assembly and alignmentHigh performance and surface precisionSurface anti-corrosion treatment for long operation lifeCustomizable logo and colorScale of survival wind force up to 12(dish direction fixed)Package suitable for air, ocean and land ......
Send Inquiry
Product Description
Main Features
- Optimized structure design, easy for field assembly and alignment
- High performance and surface precision
- Surface anti-corrosion treatment for long operation life
- Customizable logo and color
- Scale of survival wind force up to 12(dish direction fixed)
- Package suitable for air, ocean and land transportations
Technical Specifications
| No. | Specifications | |
| Items | Spec | |
| 1 | Antenna Type | KU 75cm offset Antenna |
| 2 | Antenna′s color | Cold Grey 7c |
| 3 | Frequency range | 10.7~12.75 GHz |
| 4 | Gain @ 11.95GHz | ≥37.54dBi |
| 5 | Reflective surface dimension | a=750mm,b=813mm |
| 6 | F/D | 0.6 |
| 7 | Efficiency | ≥63% |
| 8 | Focal length | f=450 |
| 9 | Polarization offset range | 24.3° |
| 10 | Reflector thickness | 0.6mm (Before Powdering) |
| 11 | LNB holder inner diameter | Φ40±1mm |
| 12 | Pole diameter | Φ42mm |
| 13 | Pole thickness | 1.5mm |
| 14 | Elevation angle | 5~85° |
| 15 | Azimuth Alignment | 0~360° |
| 16 | Working tmepreature | -50°~70ºC |
| 17 | Working Environmental humidity | 5~95% |
| 18 | Calibration angle | 10~90° |
| 19 | Installation type | Column |
| 20 | Wind loading ability | Working normally in level 8 wind |
| Can work in level 10 wind | ||
| Survive in level 12 wind | ||
| 21 | Main mechanical part | Galvanized Steel |
| 22 | Painting | Polyester power coating (Grey) |
| 23 | Accessories/Fasteners | Dacromet |
