Large shell high Gain GPS&Bd2 External Antenna GNSS Antenna AGB-M5550-FA3 The GPS&BD2 external antenna, is a support Beidou two generation (B1) /GPS (L1) dual-mode active receivingantenna.The built-in high performance dual mode (BD2/GPS) receiving module, ceramic antenna, low noise amplif......
Send Inquiry
Product Description
AGB-M5550-FA3

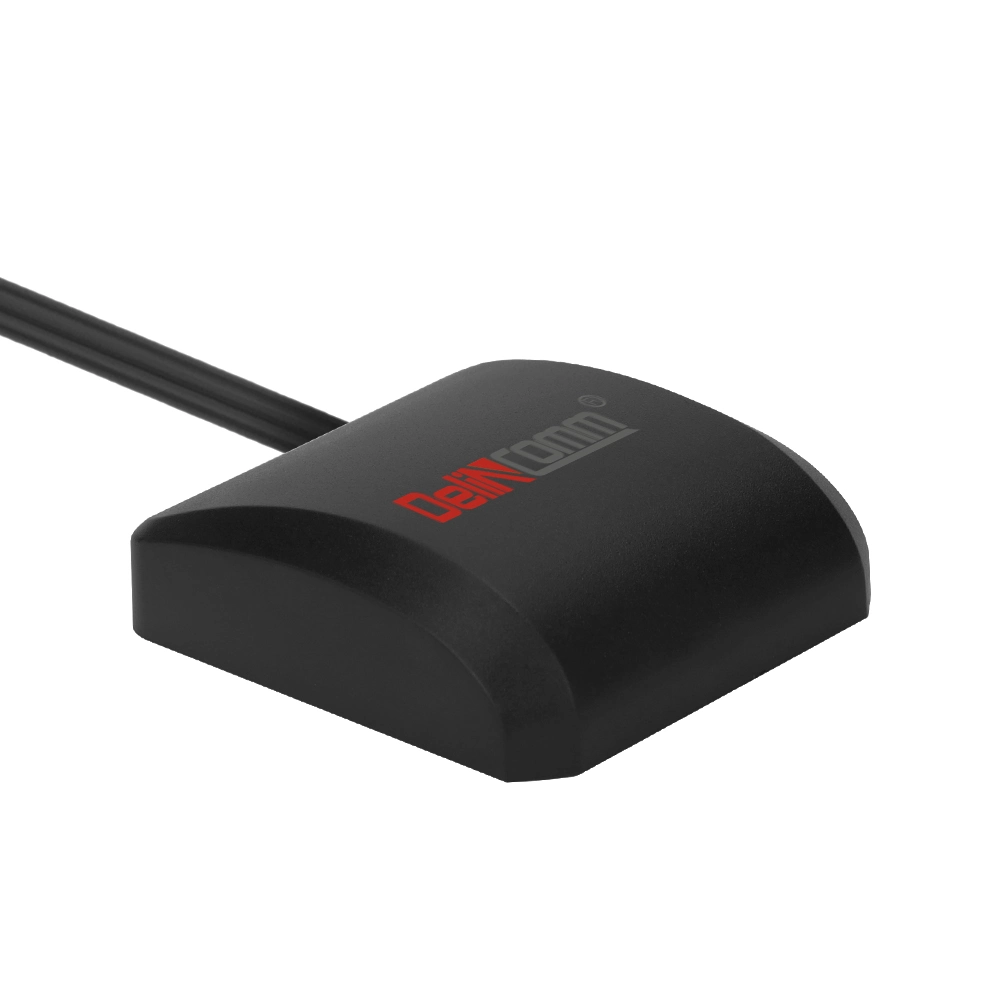

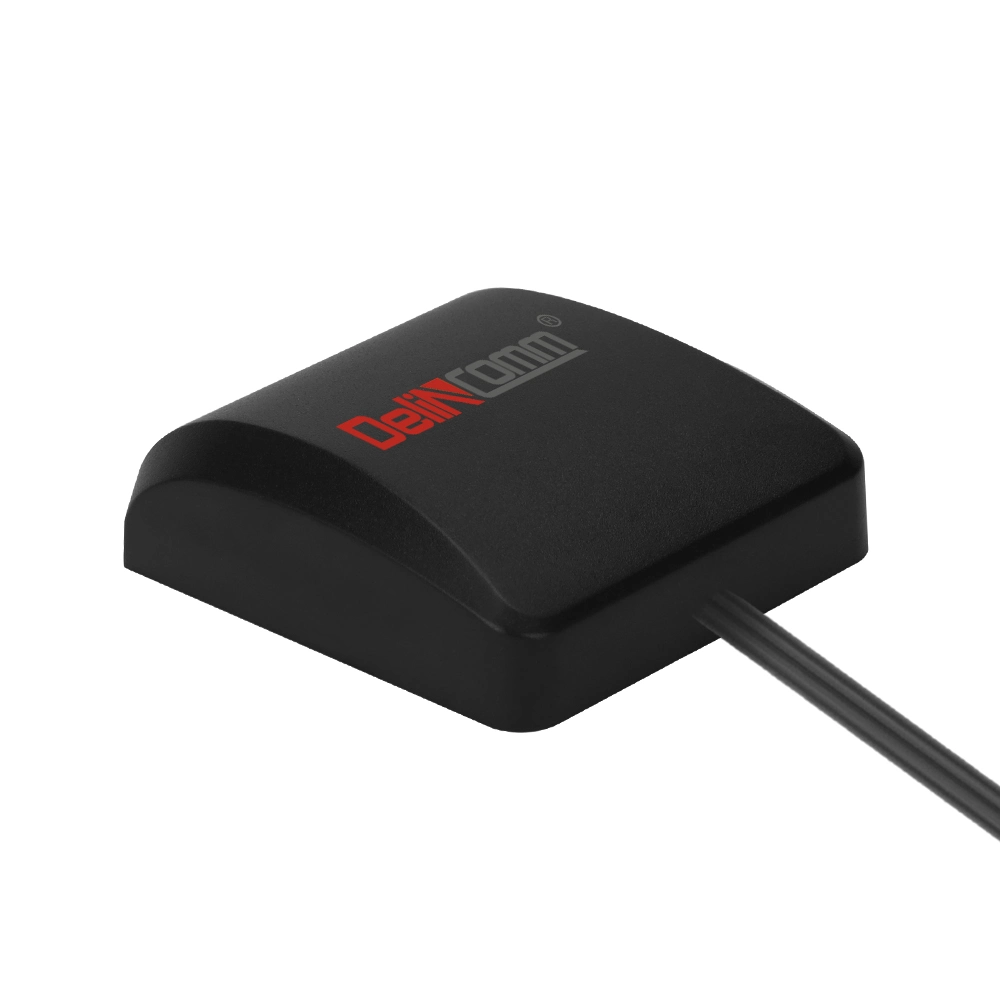

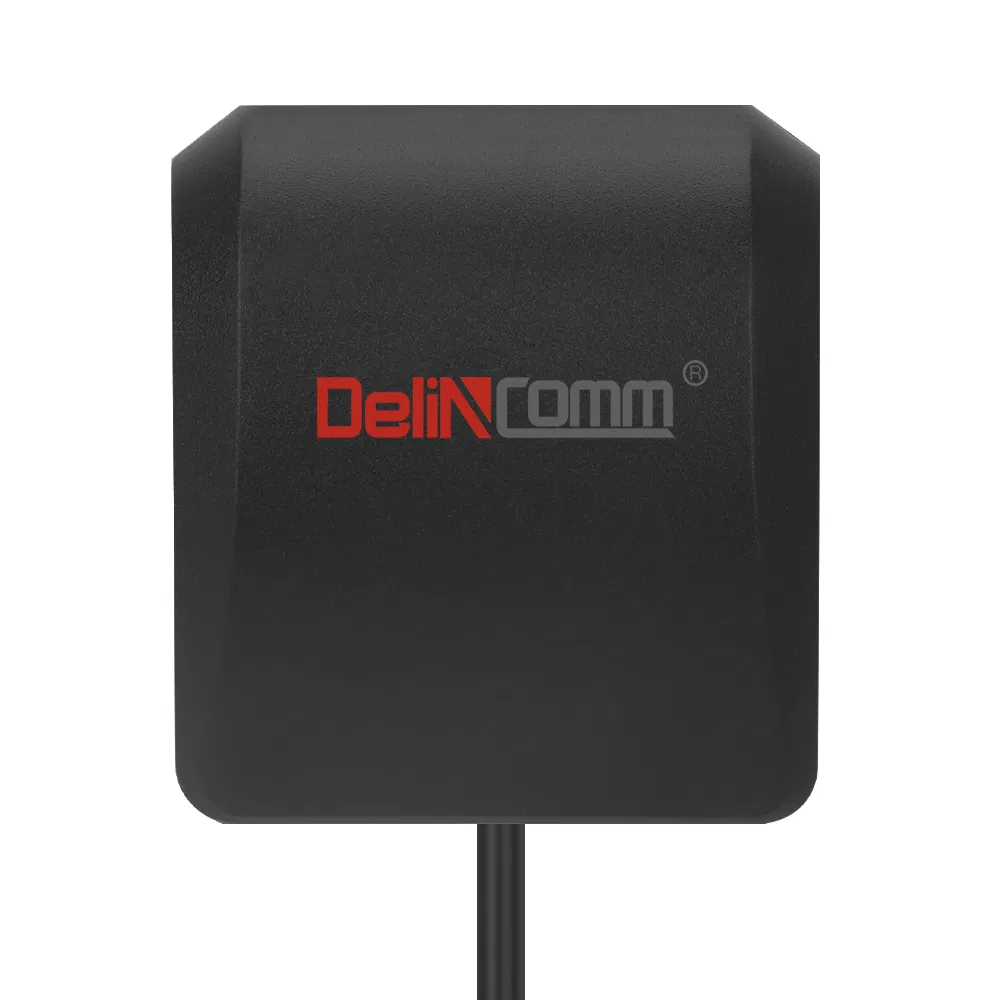

The GPS&BD2 external antenna, is a support Beidou two generation (B1) /GPS (L1) dual-mode active receiving
antenna.The built-in high performance dual mode (BD2/GPS) receiving module, ceramic antenna, low noise amplifier.
The plastic shell, the waterproof design.The product has the advantages of small volume, convenient installation and
use.
Product Description
| NO. | Parameter | Specification |
| 1 | Range of Receiving Frequency (MHz) | 1575.42&1561.09±3MHz |
| 2 | Center Frequency (MHz) (with 30mmSpuareGND plane) | 1575.42&1561.09±3MHz |
| 3 | Band Width (MHz)(Return Loss≤-10dB) | ≥10 |
| 4 | V.S.W.R (in Center Frequency) | ≤1.5 |
| 5 | Gain (Zenith) (dBi typ) (with 70mmSquare GND plane) | 4.5 |
| 6 | Axial Ratio (with 70mm Square GND plan) | 3.0dB |
| 7 | Polarization | RHCP |
| 8 | Impedance (Ω) | 50 |
| 9 | Frequency Temperature Coefficient (ppm/ºC) | 0±10 |
| 10 | LAN Gain | 28±2 dB |
| 11 | In Center Frequency | ≤2.0 |
| 12 | Noise Figure | <2.0 |
| 13 | Supply Voltage | 3~5V |
| 14 | Current Consumption | 12±1mA@3VDC |
| 15 | Size | 55*50*17mm |
| 16 | Mounting | Magnetic |
| 17 | Weight | 55g |
| 18 | Connector | FAKRA |
| 19 | Cable | 3M |
| 20 | Operating Temp. | -40ºC~+85ºC |
| 21 | Storage Temp. | -45ºC~+85ºC |
| 22 | Operating Humidity | 0%~95% |
| 23 | Storage Humidity | 0%~95% |
| 24 | Optional cable length and connector | 2M,5M /SMA,MCX,GT5 or customized |
| 25 | Fixed method | 3M or magnet |
| 26 | Environmentally | ROHS |
Product advantages and characteristics
Features:
1.Murata acoustic meter filter, effective filtering noise
2.Infineon low noise LNA, output signal to noise ratio
3.High gain, low standing wave ratio, good reception
4.Imported ceramic body
5.Waterproof IP67 / IP68
Advantage:
1.IATF16949 quality management system standard
2.Certification: FCC CE ROHS2.0
3.Semi-automatic production ensures product consistency
Quality Standard
1. Inspection method (if the customer inspection is strict with the company, the OQC shall be based on the customer's
acceptance standard) GB2828 inspection according to standard sampling table, normal inspection, one sampling, II
level plan.
Fatal/serious defect: AC=0 minor defect: AQLAC=1.0
Our company's inspection standard for full inspection, shipping standards for zero defects.
2. The above inspection standards / methods are different from customer standards, customer standards shall prevail.
3. Products shipped abroad must conform to the relevant national standards before shipment.

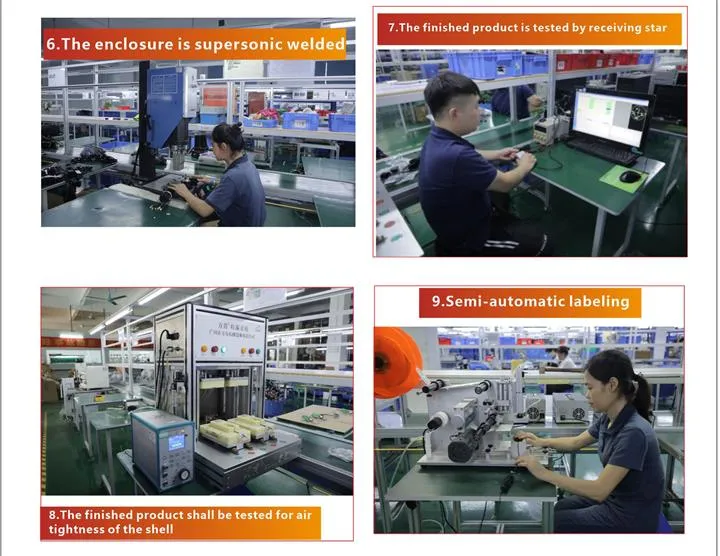

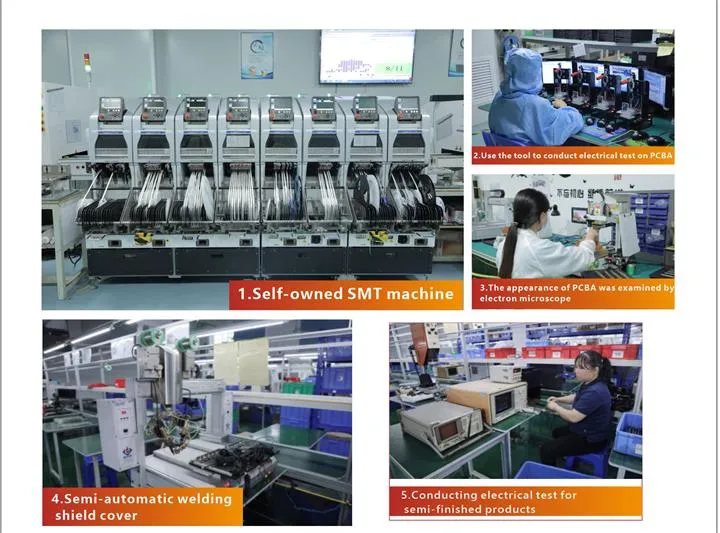

Production Testing Process
Company Capacity
Delin comm Limited, is a professional enterprise with its own brand (DELINCOMM) and 28 years of experience in R&D,
production and sales.
We focuses on the R&D and production of radar antenna, base station antenna, power antenna, GPS antenna,
GLONASS antenna, 5G antenna, 4G antenna, 2.4G antenna, WiFi Antenna, BT antenna, GSM antenna, DVB-T antenna,
WLAN antenna,GNSS antenna, various Combined antenna,GPS module, GNSS module, GPS antenna module,
GNSS antenna module,MOUSE receiver, NFC module, 4G module and 5G module, etc.
Common Problems
Sample cost issues
1. We will charge the sample fee and make the sample until you are satisfied.
2. Freight is generally borne by the buyer, specific circumstances can be negotiated, specific specifications please
contact us.
3. Our products are national standard accessories, can be customized according to your needs.
Product after-sales service
1. We not only pay attention to pre-sale guidance and product quality, but also pay more attention to after-sales service.
If you find any problems or need guidance after purchasing any of our products, please contact us.
Product Delivery
1. About delivery
1.1.We cooperate with many express delivery companies.In general, we follow the default expression in scope.If you have
a specific delivery, simply point it out or contact customer service.Otherwise, we will use our own default messenger.
Please check the shipping address and contact information before shipping.
2. Order delivery
2.1. Sample delivery time is about 3 days, and mass production cycle is 5-15 days.
2.2. Emergency order processing, our company has emergency orders to speed up processing process, will be completed
for you in time.
