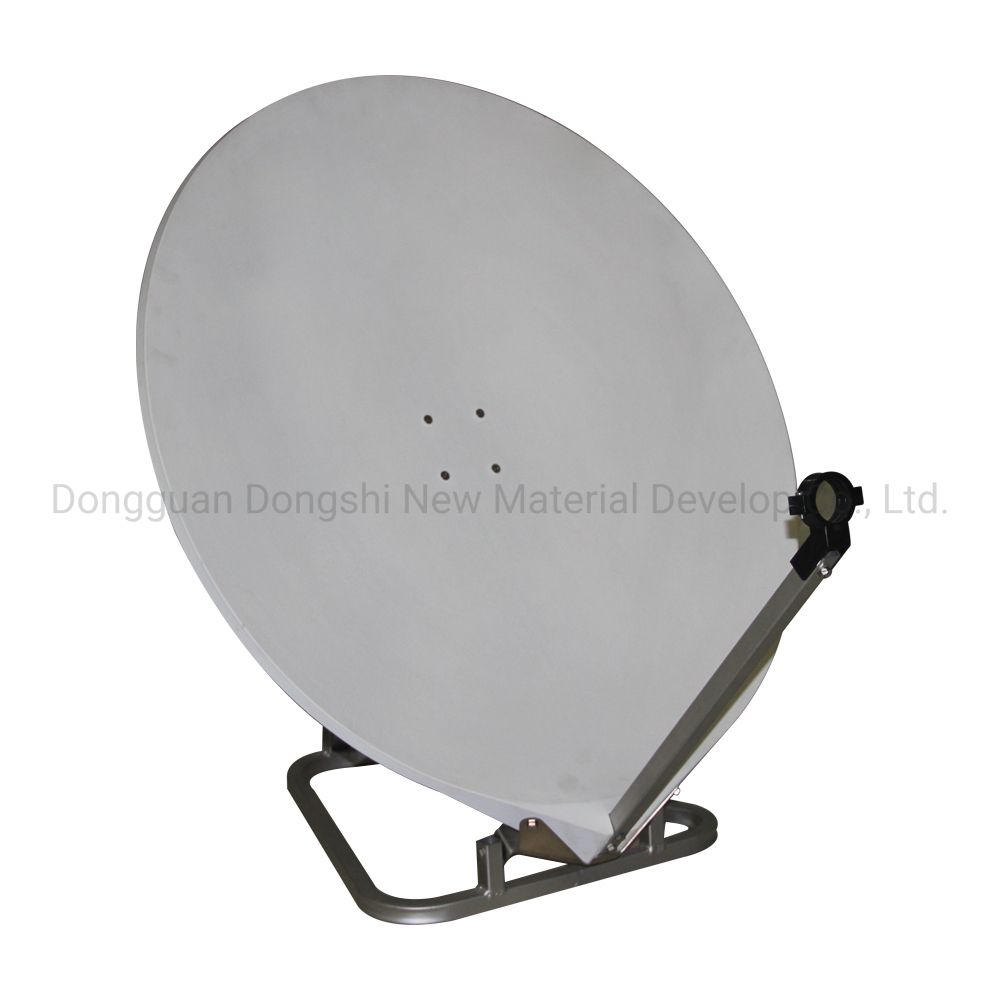

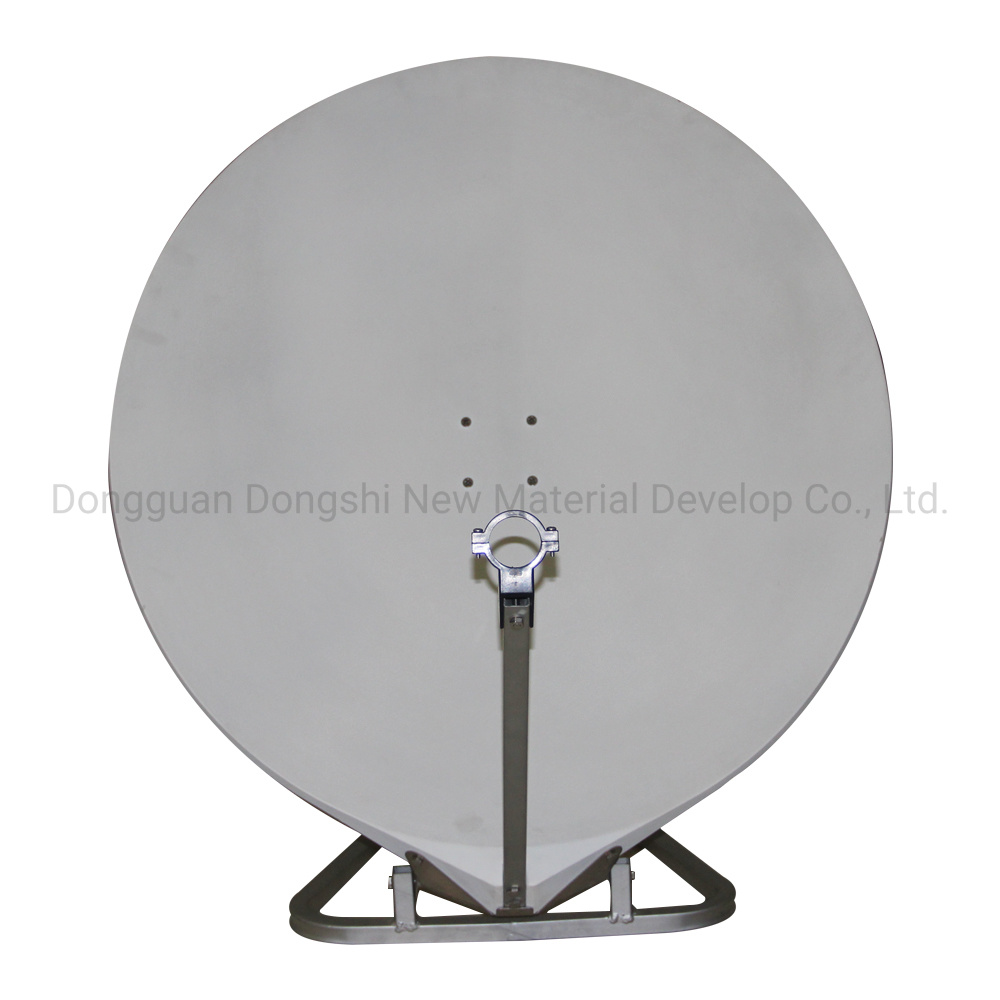

SMC 0.75m Ku Band Earth Station FRP Satellite Antenna for TV/Industry/Home/Base Station/Receive/Outdoor
Main features: SMC reflective surface using molding, high precision, consistency, and no gravity, strong as steel, light as aluminum, compression performance is 12 times that of aluminum; reflective surface multi-chip combination, good interchangeability; anti-corrosion, anti- aging, long life 15-......
Send Inquiry
Product Description
Main features:
SMC reflective surface using molding, high precision, consistency, and no gravity, strong as steel, light as aluminum, compression performance is 12 times that of aluminum; reflective surface multi-chip combination, good interchangeability; anti-corrosion, anti- aging, long life 15-20 years; special designed reflector perfectly matches the feed, so that the transceiver is capable to achieve maximum; simple installation, adjustment. Reflector surface orange peel designed , providing rain attenuation and reducing the tuner damage.
Electrical
Mechanical
Enviromental Performance:

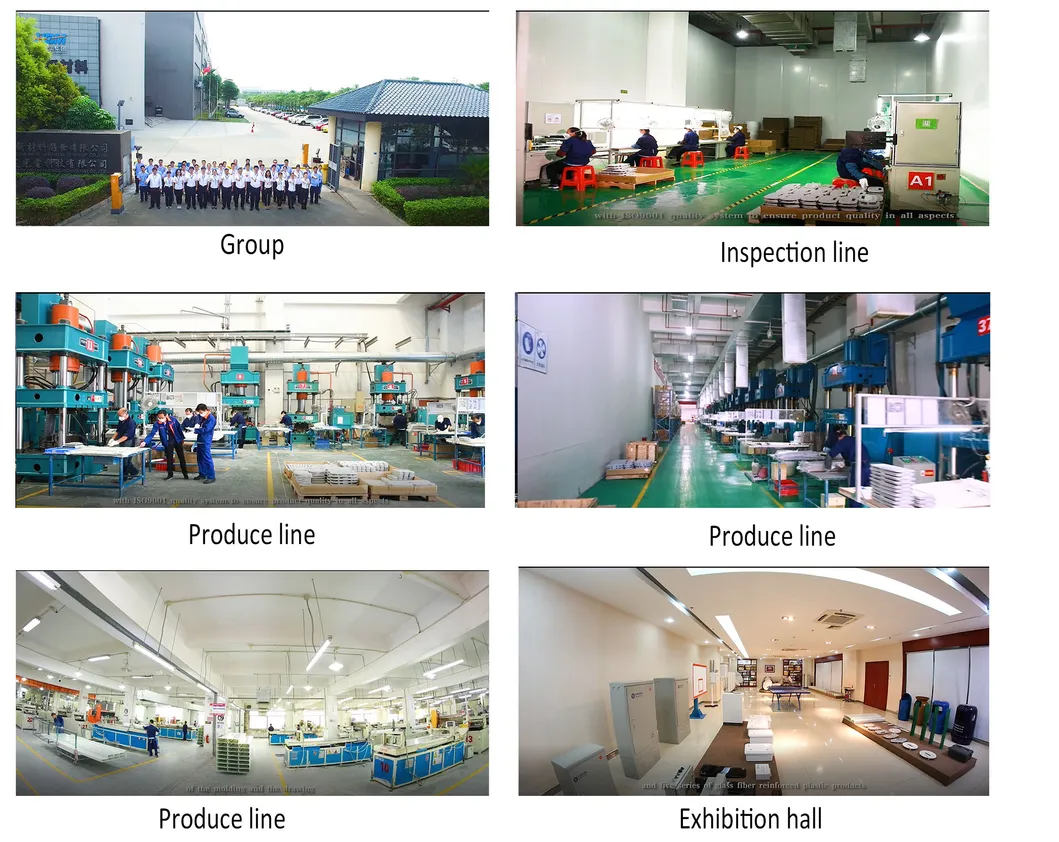

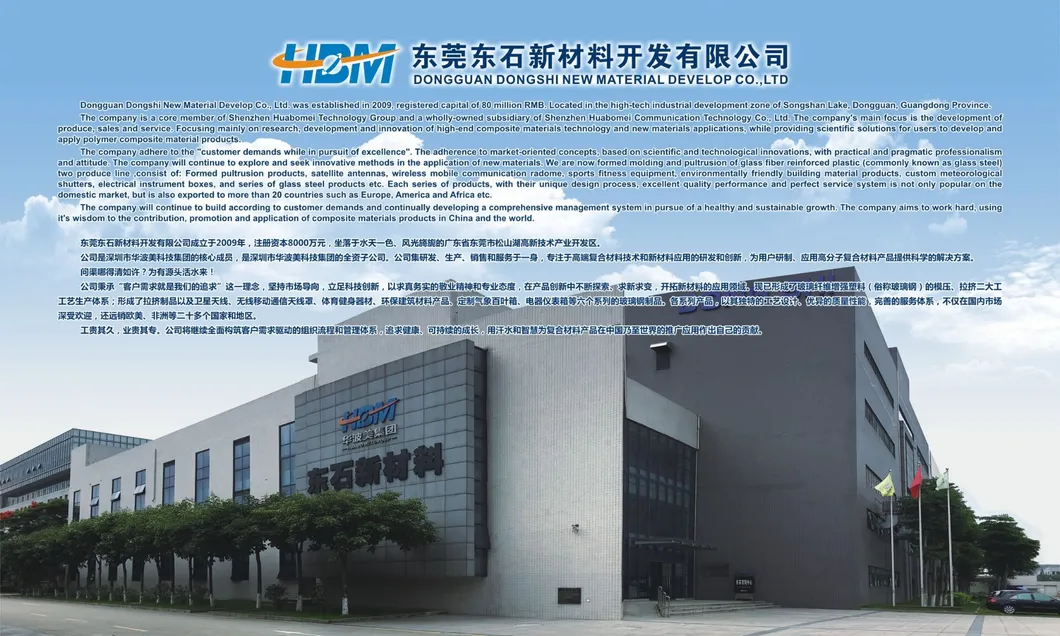

Company Profile
Dongguan Dongshi New Material Develop Co., Ltd. was established in 2009, registered capital of 80 million RMB. Located in the high-tech industrial development zone of Songshan Lake, Dongguan, Guangdong Province.
The company is a core member of Shenzhen Huabomei Technology Group and a wholly-owned subsidiary of Shenzhen Huabomei Communication Technology Co., Ltd. The company's main focus is the development of produce, sales and service. Focusing mainly on research, development and innovation of high-end composite materials technology and new materials applications, while providing scientific solutions for users to develop and apply polymer composite material products.
The company adhere to the "customer demands while in pursuit of excellence". The adherence to market-oriented concepts, based on scientific and technological innovations, with practical and pragmatic professionalism and attitude. The company will continue to explore and seek innovative methods in the application of new materials. We are now formed molding and pultrusion of glass fiber reinforced plastic (commonly known as glass steel) two produce line ,consist of: Formed pultrusion products, satellite antennas, wireless mobile communication radome, sports fitness equipment, environmentally friendly building material products, custom meteorological shutters, electrical instrument boxes, and series of glass steel products etc. Each series of products, with their unique design process, excellent quality performance and perfect service system is not only popular on the domestic market, but is also exported to more than 20 countries such as Europe, America and Africa etc.
The company will continue to build according to customer demands and continually developing a comprehensive management system in pursue of a healthy and sustainable growth. The company aims to work hard, using it's wisdom to the contribution, promotion and application of composite materials products in China and the world.
Why us
FAQ
Q1. Is Dongshi Machinery Manufacturer?
A1: Yes, we are the composite material product manufacturer and exporter in china with 10+ years experiences. We own 2 manufacturing bases and sales center in Dongguan China.
Q2: If we don't find what we need from your website, what should we do? Do you make product as per customers' specific requirement?
A2: Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email. We will check if we can develop them.
Q3: How can I order and make payments?
A3: Once clear your requirements. We will send Proforma Invoice to you. You can pay via TT bank transfer.
Q4: If we find your bank account or email different as before, how should we respond?
A4: Please don't send the payment and double check with us before arrange payment (Bank details will be listed in every piece of proforma invoice.
Q5: How long is the delivery date?
A5: With ready product, after receive payment we can arrange shipping ASAP!
If quantity was too large or special which need further confirmation!
Q6: What is your Minimum Order Quantity?
A6: Depend on which product you need. We provide both customized product and ready product. Welcome contact with us for your future purchasing plan.

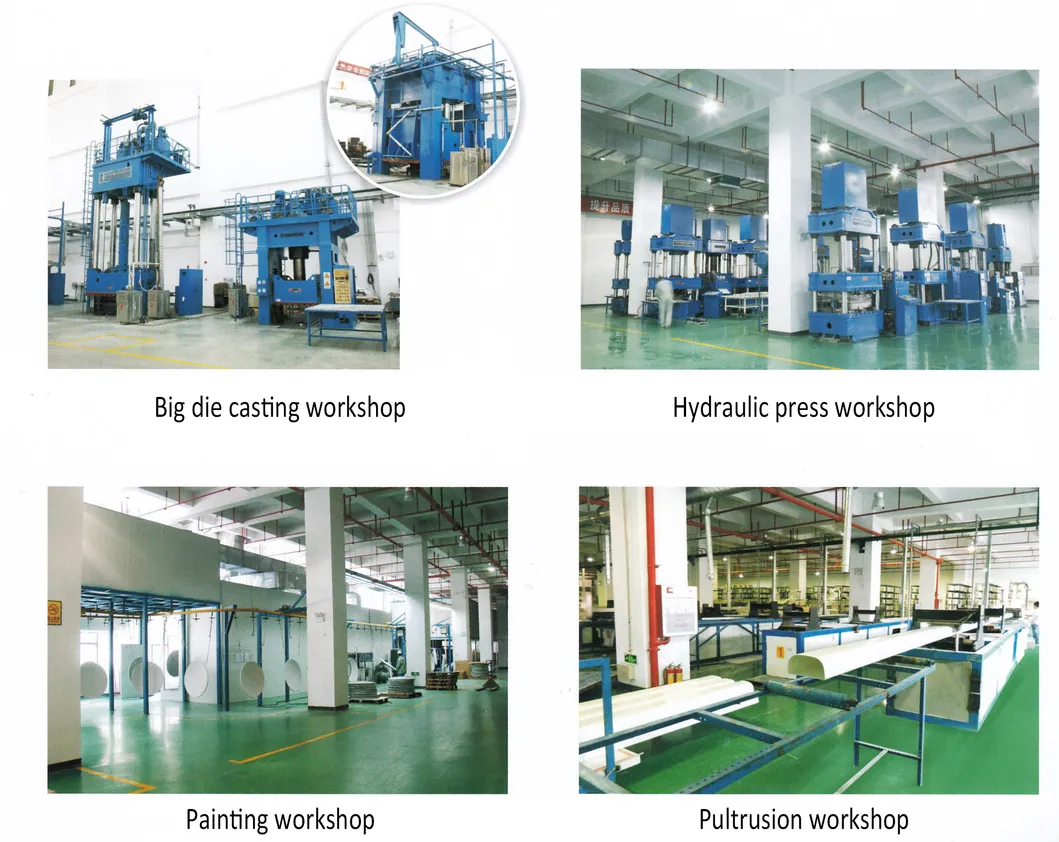

Q7: What craft and equipment do your company have?
Die casting line: 35 set machines.
Pultrusion line:28 set line
Extrusion line: 4 line
Vacuum bag pressing process:1line
A8: What about shipping?
Q8: We can send the small spare parts by air express for urgent matter. And the complete production line by sea to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest port is Shenzhen China, which is convenient for maritime transportation.
Q9: Is there any pre-after sale service?
A9: Yes, we support our business partners by pre-after sale service. Any cases would be responded with prompt solutions.
Q10: Are our business& money safe with Dongshi?
A10: Yes, your business is safe and your money is safe. If you check China company blacklist, you will see that it is not contain our name as we never crook our customer before. Dongshi enjoys high reputation from the customers and our business and customers grows year by year.
SMC reflective surface using molding, high precision, consistency, and no gravity, strong as steel, light as aluminum, compression performance is 12 times that of aluminum; reflective surface multi-chip combination, good interchangeability; anti-corrosion, anti- aging, long life 15-20 years; special designed reflector perfectly matches the feed, so that the transceiver is capable to achieve maximum; simple installation, adjustment. Reflector surface orange peel designed , providing rain attenuation and reducing the tuner damage.
Electrical
| Antenna size | 035m | 0.45m | 0.60m | 0.75m | 0.90 | 1m | 1.2m | 1.8m | 2.4m | 3m | 3.7m | ||
| Operating Frequency | C /KU band | 3.7-4.2Ghz/10.75-12.95Ghz | |||||||||||
| Midband Gain(+2dBi) | C-band | 32.5db | 35.5db | 37.9db | 39.7db | 41.2db | |||||||
| Ku-band | 31.7db | 33.0db | 37.0db | 38.1db | 41.7db | 41.7db | 45.0db | 47.2db | 48.8db | 50.0db | |||
| 3dbBeamwidth | C-band | ||||||||||||
| Ku-band | 3.4 | 2.7 | 2.3 | 1.4 | 1.4 | 0.9 | 0.75 | 0.6 | 0.5 | ||||
| First sidelobe(Typical) | -23db | -20db | |||||||||||
| Cross-Pol Isolation | >30db on Axis | ||||||||||||
| (VSWR) | 1.2:1 Max | 1.3:1 Max | |||||||||||
| Antenna Noise Temperate | At 30° Elevation | C-band | 55K | 54K | 51K | 47K | 31K | 30K | 27K | ||||
| Ku-band | 48K | 46K | 43K | 35K | 28K | 26K | 22K | ||||||
| Feed interface | C /KU Band | CPR229/Wr75 | |||||||||||
Mechanical
| Antenna Size | 0.35m,045m,060m,075m, 090m,1m,1.2m | 1.8m | 2.4m | 3m | 3.7m |
Reflector Material | One piece glass fiber reinforced polyester SMC | Three pieces glass fiber reinforced polyester SMC | Eight pieces glass fiber reinforced polyester SMC | Ten pieces glass fiber reinforced polyester SMC | |
| Antenna type | Offset | Prime Focus | |||
| Elevation Adjustment Range | 0-90° Continuous Fine Adjustment | ||||
| Azimuth Adjustment Range | 360° Continuous | ||||
Enviromental Performance:
| Antenna Size | 0.35m | 0.45m | 0.60m | 0.75m | 0.90m | 1m | 1.2m | 1.8m | 2.4m | 3m | 3.7m | |
| Winding loading | Operational | 20mpc | 22 mpc | 20 mpc | ||||||||
| Survival | 45 mpc | |||||||||||
| Temperature | Operational | From-40ºC to 60ºC | ||||||||||
| Survival | From -45ºCto 70ºC | |||||||||||
| Atmospheric Conditions | Salt, Pollutants and Contaminants as encountered in coastal and industrial areas. | |||||||||||
| Weight (Including Mount) | 2 | 4 | 6 | 10 | 15 | 16 | 28 | 70 | 97 | 195 | 284 | |
